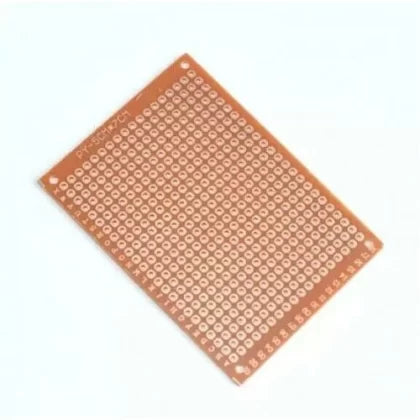

Zero PCB Small 4x3 inch (Buy 5 & Get Free 10 Push Button)

Specification

• Size: 4x3 Inch
• Material: Copper
• Color: Brown
• Thickness: 1mm
• Pin: 36x20 (780)Pins

Description

1. Material: Tradition al PCBs are made with a fiberglass substrate, but a zero-thickness PCB would require a different material. One possibility is a flexible substrate such as polyimide or PET, which can be etched with circuitry and then rolled or folded to achieve a very thin profile.

2. Circuitry: The circuitry on a zero-thickness PCB would need to be extremely thin to avoid adding any significant height. This could be achieved through the use of very fine trace widths and spacing, as well as the use of surface-mount components.

3. Components: All components used on a zero-thickness PCB would need to be very low profile, such as surface-mount components with a height of less than 1 mm.

4. Assembly: The assembly process for a zero-thickness PCB would need to be carefully optimized to avoid any damage to the fragile substrate or components. This could include using automated pick-and-place machines to minimize the need for manual handling.

Overall, designing and manufacturing a zero-thickness PCB would be a challenging task, but it could be possible using specialized materials and techniques.
