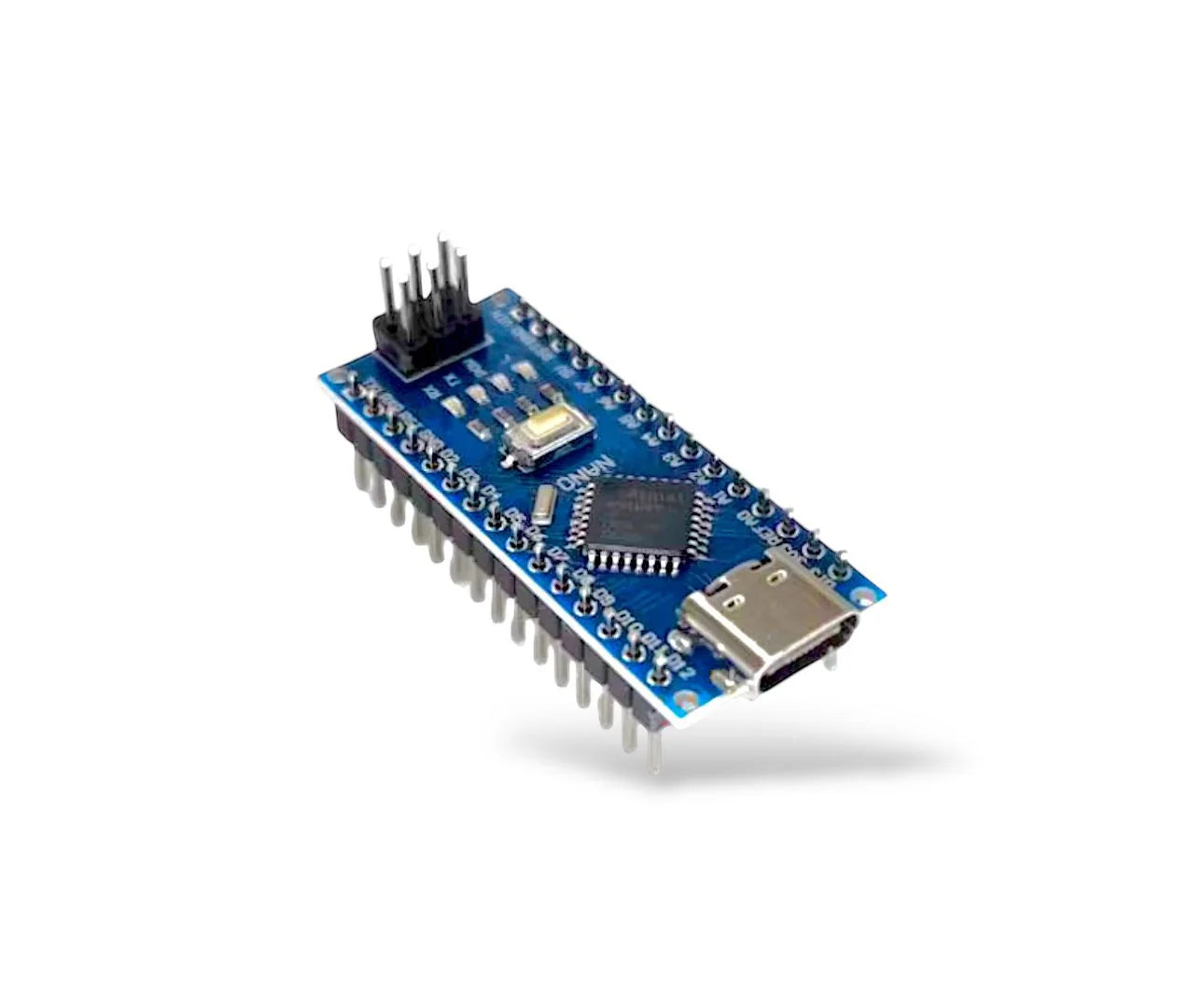

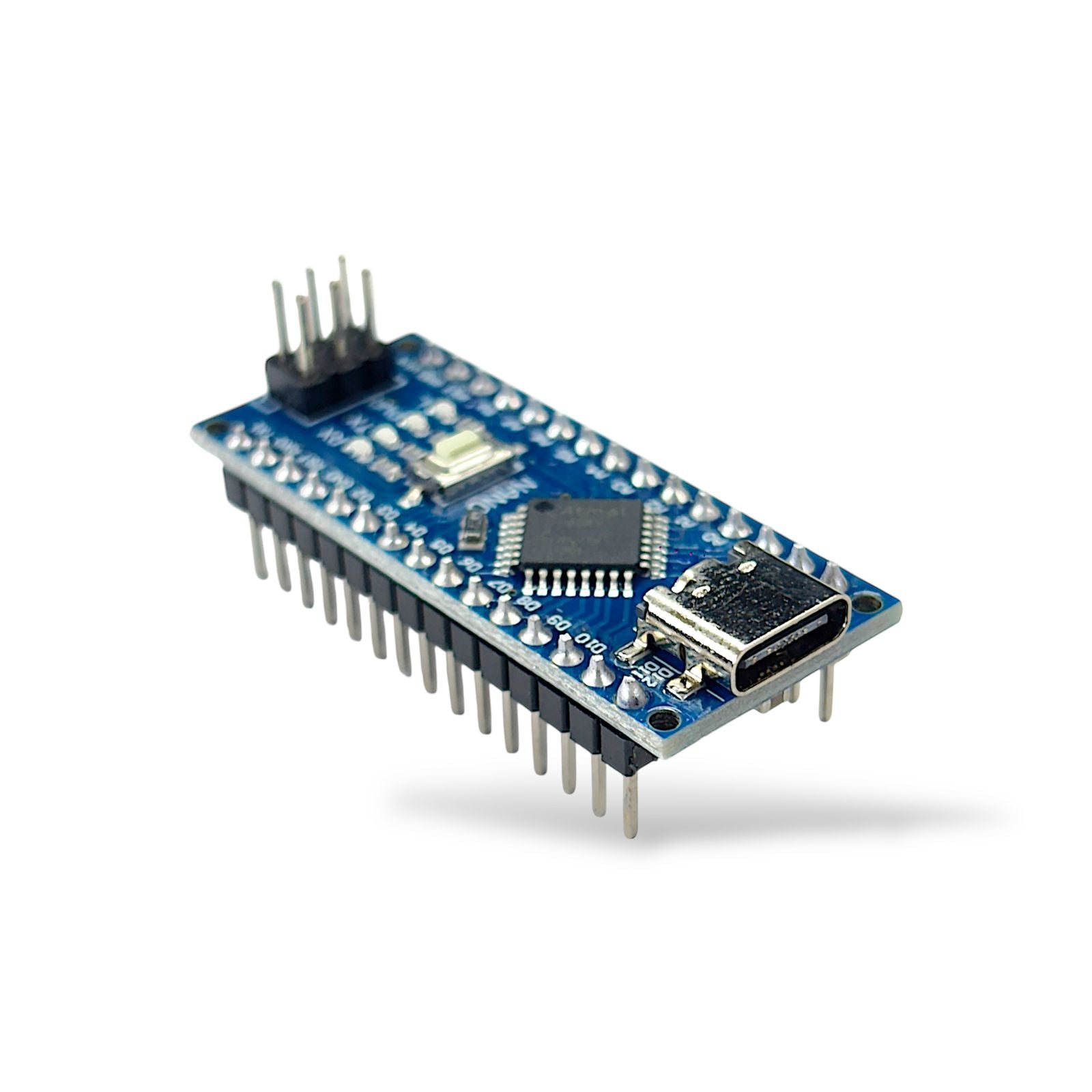

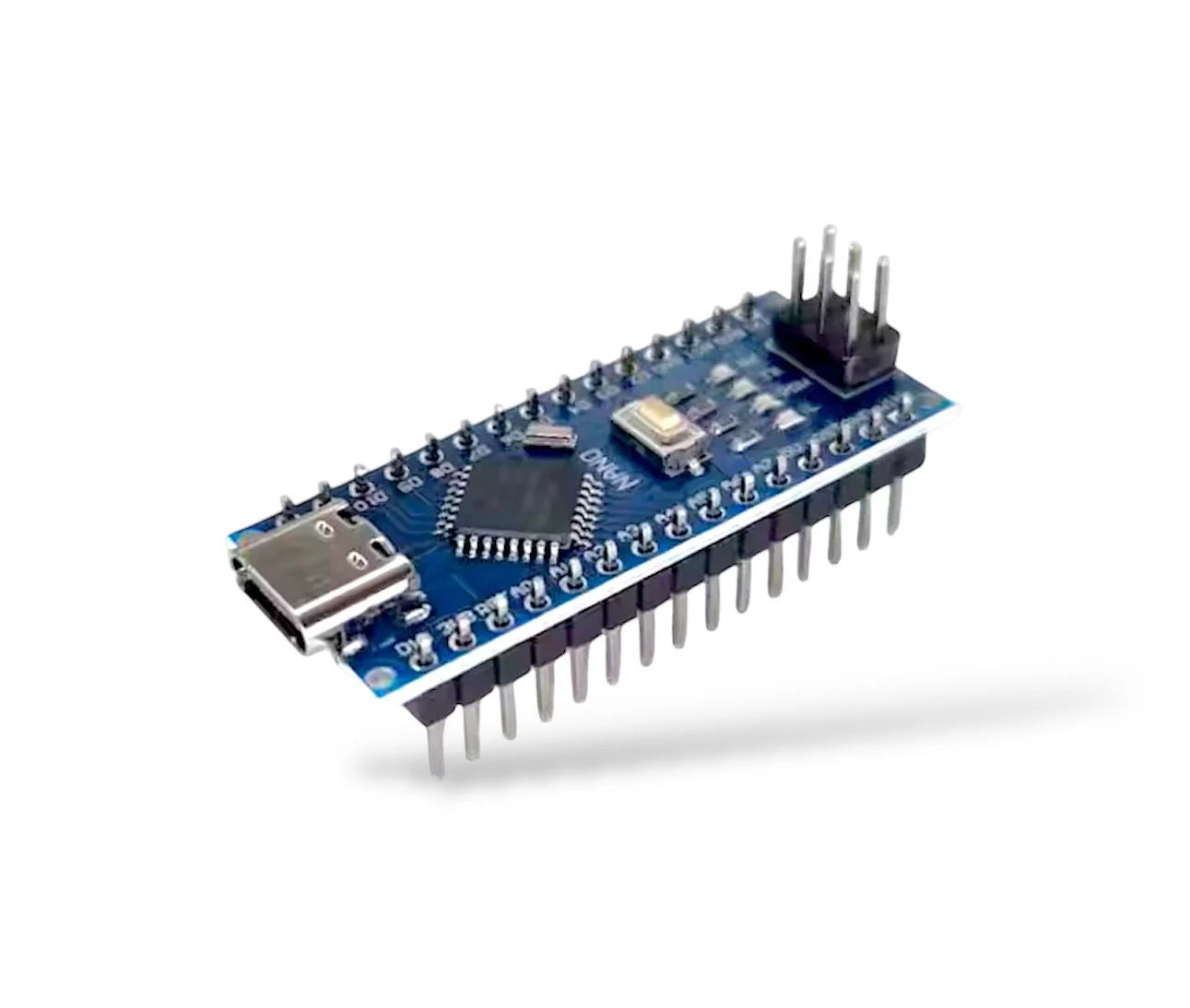

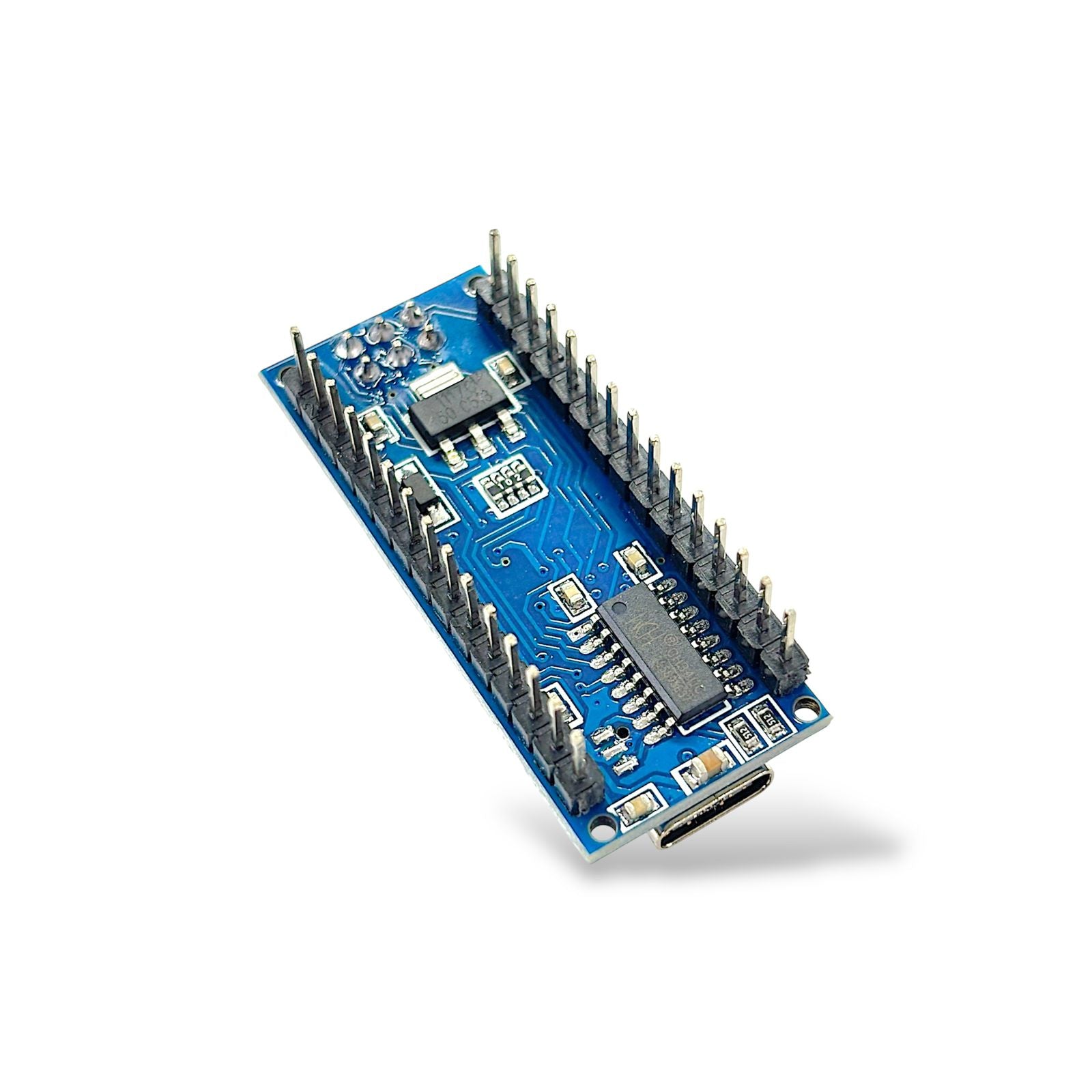

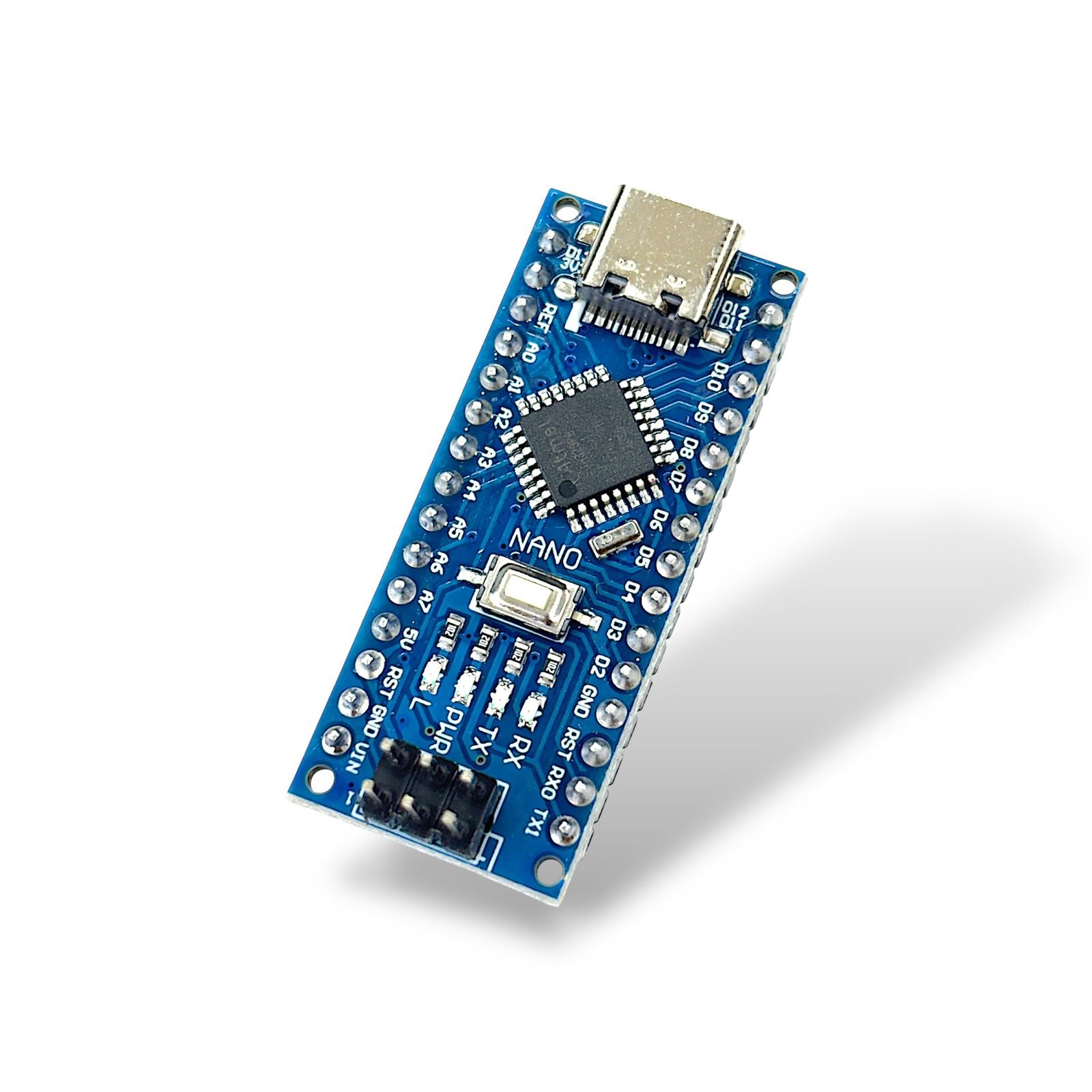

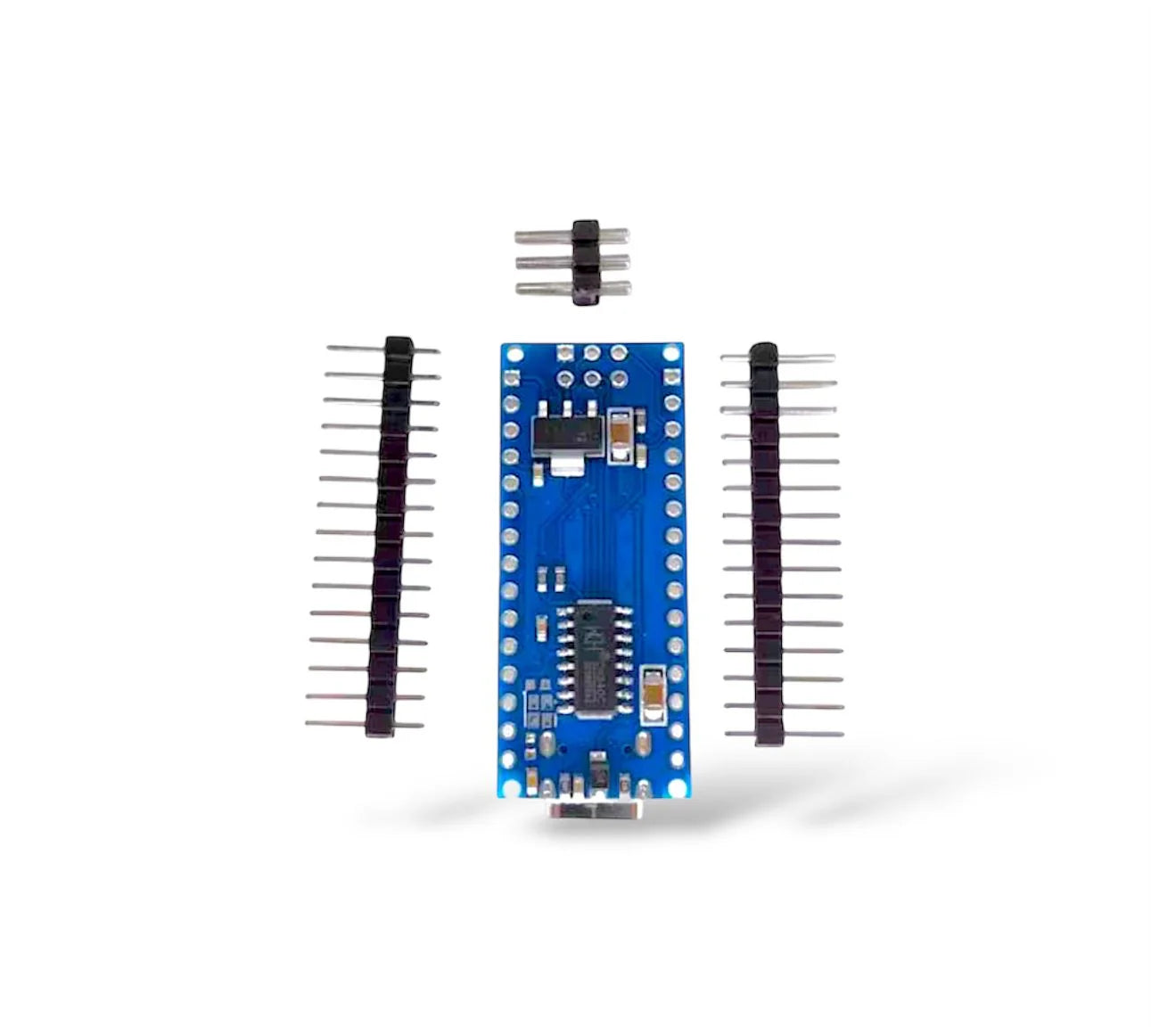

Type-C Nano Arduino ATmega328P 5V Nano V3.0 Development Board | 16MHz CH340 Type-C USB Compatible with Arduino Nano

Key Features

• Microcontroller: ATmega328P

• Operating Voltage: 5V

• Input Voltage (recommended): 7–12V (via VIN pin)

• Clock Speed: 16 MHz

• USB Interface Chip: CH340 (Type-C USB Port)

• Digital I/O Pins: 14 (of which 6 provide PWM output)

• Analog Input Pins: 8 (A0–A7)

• Flash Memory: 32 KB (2 KB used by bootloader)

• SRAM: 2 KB

• EEPROM: 1 KB

• DC Current per I/O Pin: 40 mA

• DC Current for 3.3V Pin: 50 mA

• Communication Interfaces: UART, SPI, I2C

• Connector Type: USB Type-C

• Dimensions: Approx. 45 mm x 18 mm

• Weight: ~7 g

• Compatible With: Arduino IDE, Arduino Nano Shields


Description
Buy ATmega328P Nano V3.0 5V 16MHz CH340 Type-C Board compatible with Arduino. Ideal for DIY electronics, robotics, and embedded projects.

The ATmega328P Nano V3.0 5V 16MHz Development Board with CH340 Type-C USB interface is fully compatible with Arduino Nano. It’s compact, affordable, and perfect for DIY projects, robotics, and embedded systems. Equipped with the reliable ATmega328P microcontroller and Type-C connector, it ensures fast uploading and stable performance for all Arduino-based applications.
