TP4056 Power Bank Module Type-C (Buy 10 & Get 3.7V 1 Battery Free)

TP4056 Power Bank Module Type-C (Buy 10 & Get 3.7V 1 Battery Free)

Regular price Rs. 32.00
Regular price Rs. 50.00 Sale price Rs. 32.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Specification

  • Input voltage: 5V
  • Output voltage: 5V
  • Charging Input: Type-C USB
  • Model No: TP4056

Description

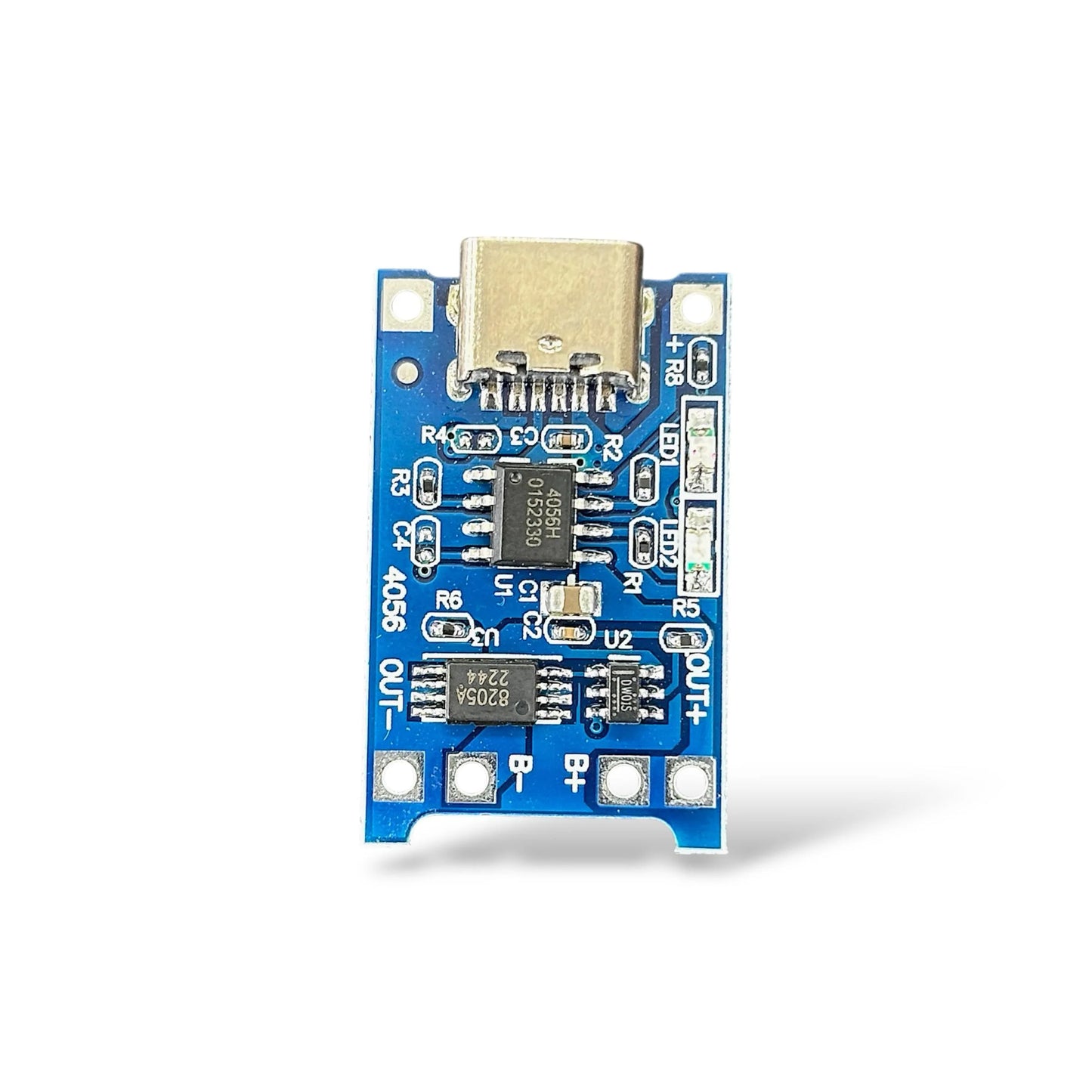

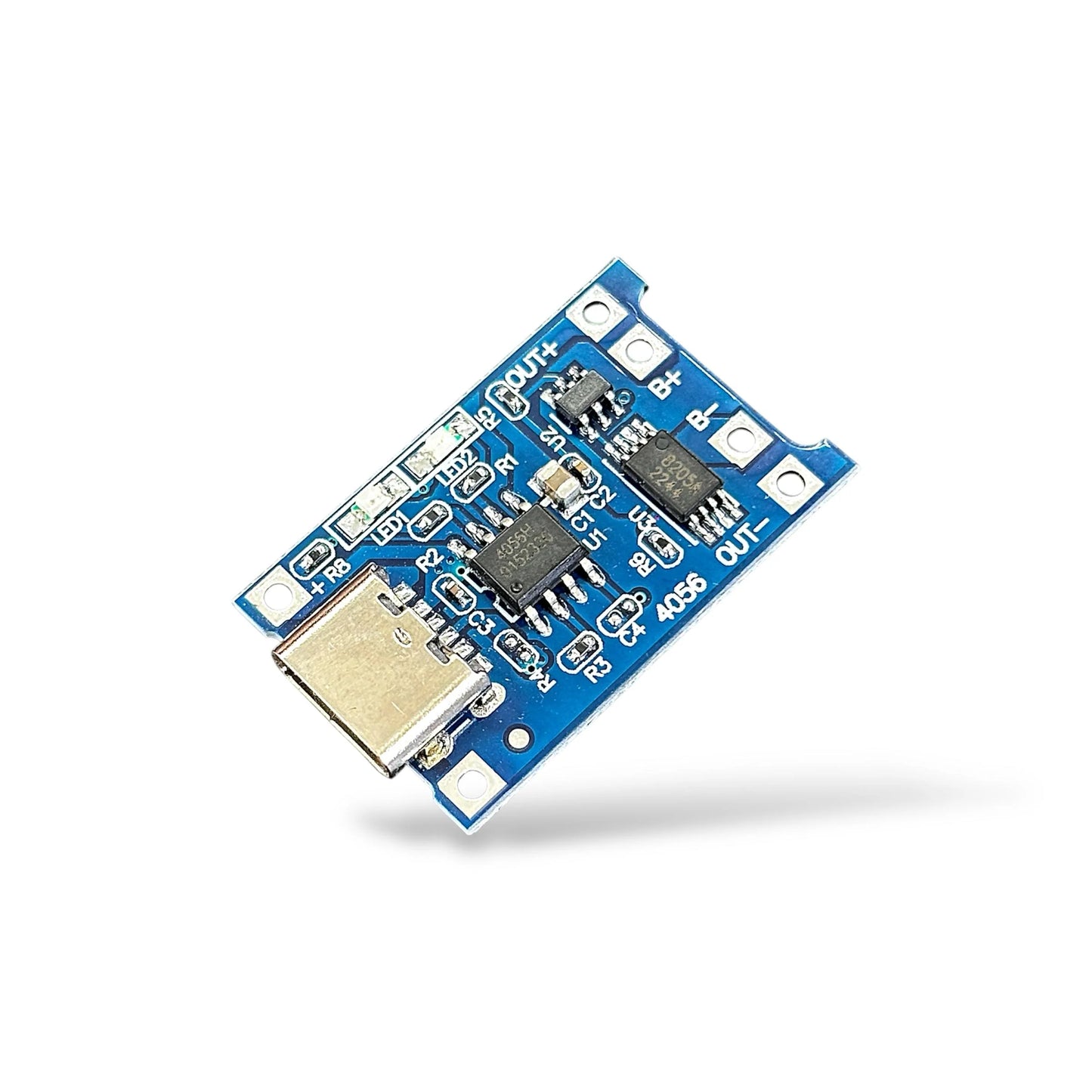

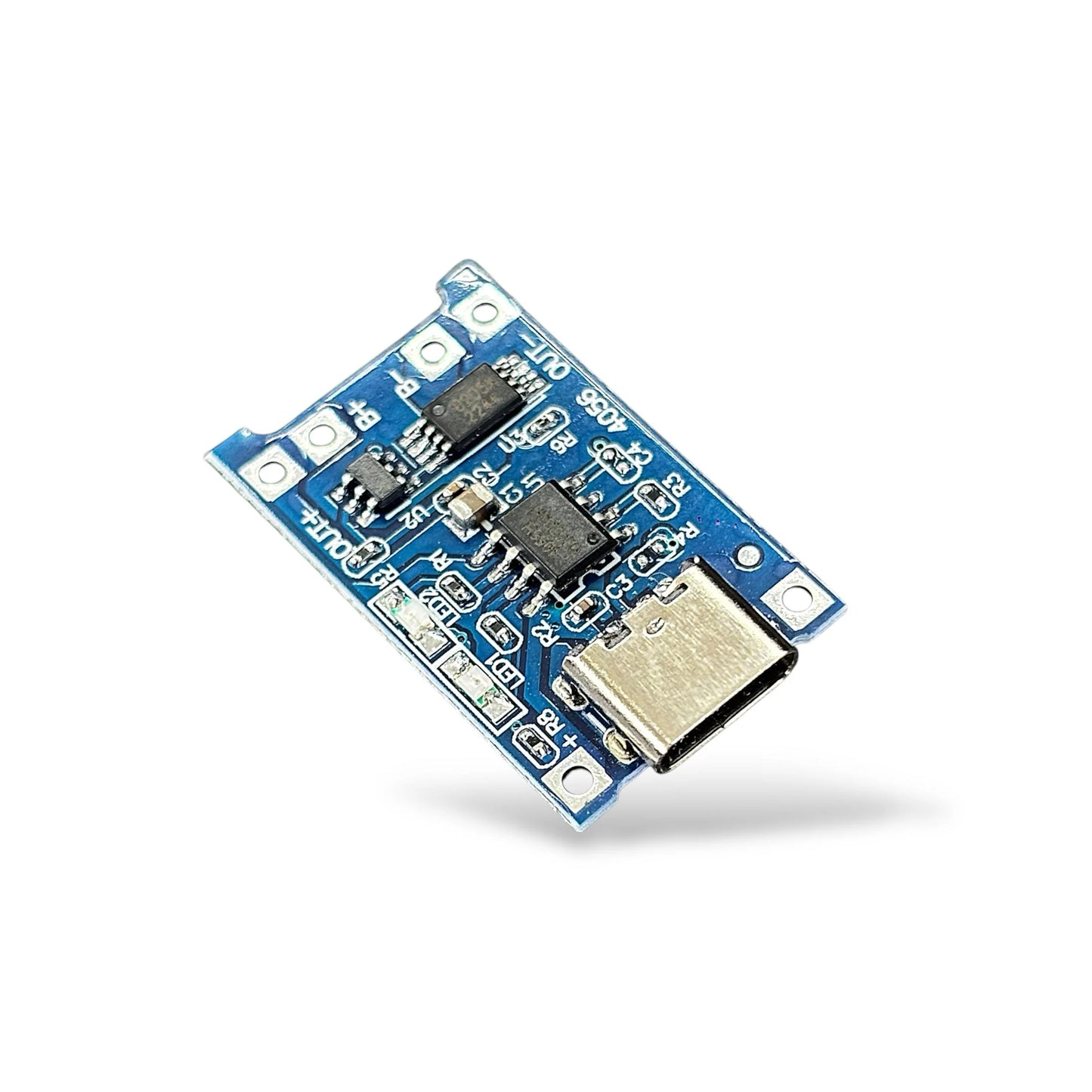

The TP4056 Power Bank Module Type-C is a small circuit board designed for charging single-cell lithium-ion or lithium-polymer batteries from a USB power source. Here are the technical specifications for this module:

1. Charging Input: The charging input for this module is a Type-C USB connector. The charging voltage range is 4.5V to 5.5V, and the charging current is up to 2A.

2. Battery Voltage: The TP4056 Power Bank Module Type-C is designed for use with 3.7V lithium-ion or lithium-polymer batteries. The charging voltage is 4.2V, and the discharge voltage range is 2.5V to 4.2V.

3. Charging Current: The charging current for this module is adjustable, and it can be set using a resistor. The default charging current is 1A, but it can be increased to 2A by changing the resistor value.

4. Charging Indicator: The module has a charging indicator LED that lights up when the battery is charging and turns off when the charging is complete.

5. Protection Features: The TP4056 Power Bank Module Type-C has several protection features to prevent damage to the battery or the module. These include overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.

6. Size: The module measures approximately 23mm x 18mm x 4mm and weighs around 2 grams.

7. Efficiency: The module has a charging efficiency of up to 92%.

8. Operating Temperature: The TP4056 Power Bank Module Type-C can operate within a temperature range of -10°C to +85°C.

Overall, the TP4056 Power Bank Module Type-C is a compact and efficient module for charging single-cell lithium-ion or lithium-polymer batteries. It is easy to use and comes with several protection features to ensure safe charging.
