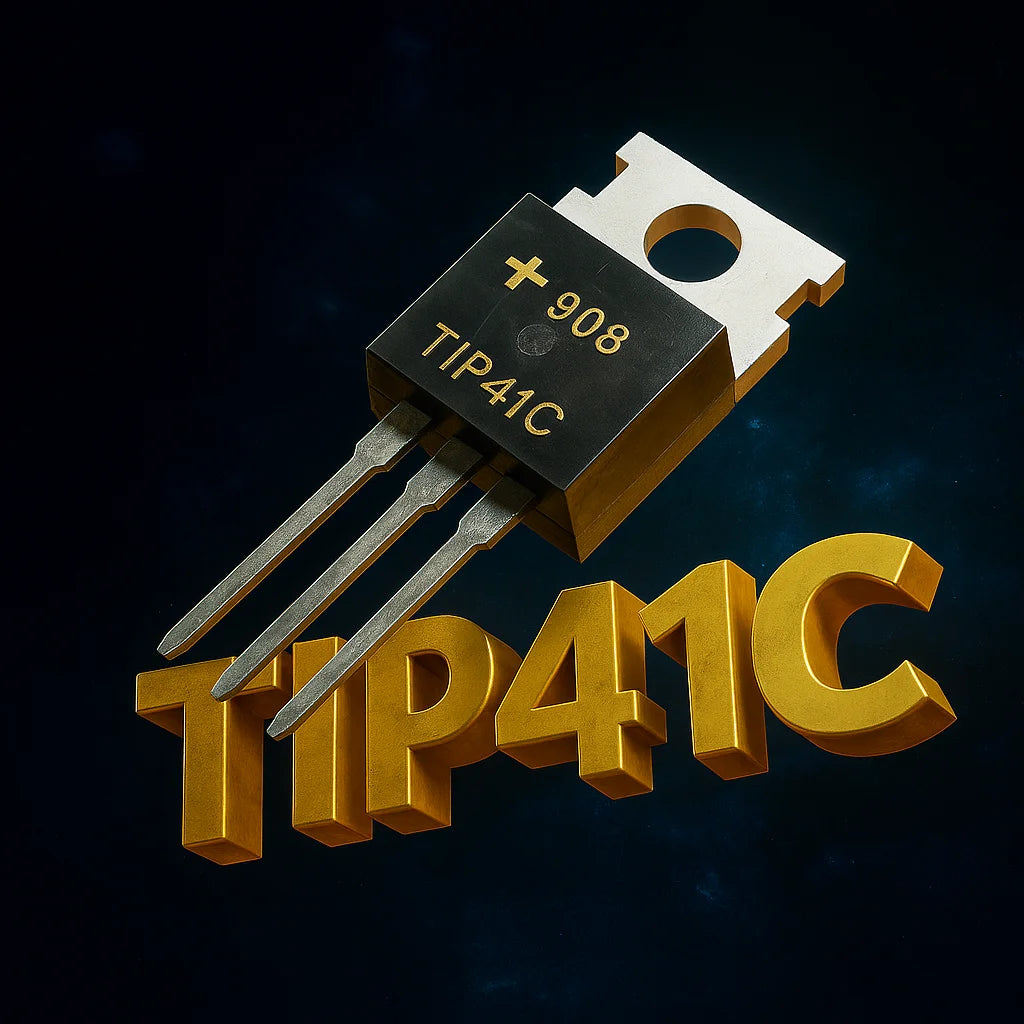

TIP41C Transistor
TIP41C Transistor
Regular price
Rs. 17.00
Regular price
Rs. 25.00
Sale price
Rs. 17.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
No reviews
Share
Specifications
- Type Designation: TIP41C
- Material: Silicon (Si)
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 65 W
- Maximum Collector-Base Voltage (V<sub>CB</sub>): 140 V
- Maximum Collector-Emitter Voltage (V<sub>CE</sub>): 100 V
- Maximum Emitter-Base Voltage (V<sub>EB</sub>): 5 V
- Maximum Collector Current (I<sub>C</sub> max): 6 A
- Maximum Junction Temperature (T<sub>j</sub>): 150 °C
- Transition Frequency (f<sub>T</sub>): 3 MHz
- Minimum DC Current Gain (h<sub>FE</sub>): 20
- Noise Figure: Not specified
- Package Type: TO-220
The TIP41C transistor is a robust NPN power transistor designed for high voltage and current applications. It offers reliable performance in amplification and switching tasks, with a maximum collector current of 6A and collector-emitter voltage up to 100V. Ideal for use in audio amplifiers, power regulators, and motor control circuits, the TIP41C ensures efficient heat dissipation and stable operation under demanding conditions. Its durability and electrical characteristics make it a preferred choice for professionals requiring dependable transistor performance.
