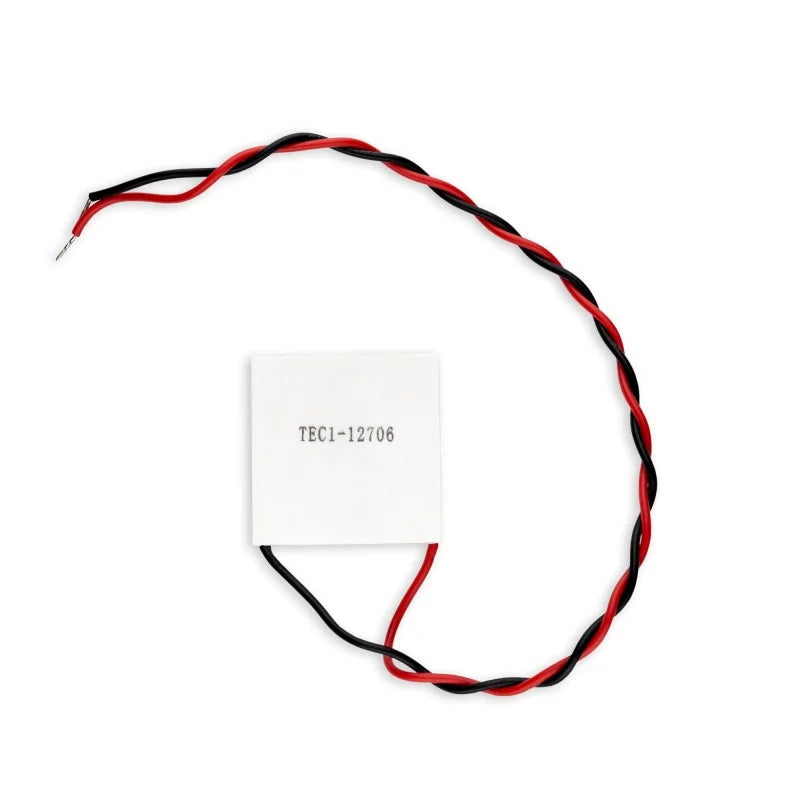

TEC1-12706 Peltier Module / Thermoelectric Cooler Module / Refrigeration (Free 1 Switch Button)

Specification

• Voltage : 12V
• TEC1-12706
• +ve and -ve terminal
• More Info : See description

Description

The TEC1-12706 is a popular thermoelectric cooler module, commonly known as a Peltier module. It is designed to provide cooling or heating by utilizing the Peltier effect. Here’s a description of the TEC1-12706 module:

1. Peltier Effect: The TEC1-12706 module is based on the Peltier effect, which is the phenomenon of heating or cooling at the junction of two dissimilar materials when an electric current flows through them. It consists of a series of thermoelectric elements connected in a grid pattern.

2. Cooling and Heating: The TEC1-12706 module can be used for both cooling and heating applications. When an electric current is applied to the module, one side of the module gets cold while the other side gets hot. By reversing the direction of the current, the hot and cold sides can be interchanged, allowing for both cooling and heating functionality.

3. Specifications: The “12706” in the module’s name represents its size and characteristics. The TEC1-12706 module typically has 127 thermoelectric elements connected in a 12×12 grid pattern. Each element can handle a maximum current of around 6 amperes.

4. Voltage and Power: The module requires a voltage difference (potential) between its two sides to operate. Typically, a voltage of around 12 volts is applied to the module for optimal performance. The power consumption of the module depends on the current and voltage applied to it.

5. Cooling Capacity: The cooling capacity of the TEC1-12706 module depends on various factors, including the temperature difference between the hot and cold sides, the heat dissipation capability of the module, and the ambient conditions. The module’s cooling capacity is commonly measured in terms of ΔTmax (maximum temperature difference it can achieve).

6. Heat Management: To effectively use the TEC1-12706 module, proper heat management is essential. The hot side of the module generates heat, which needs to be dissipated efficiently to prevent overheating. Heat sinks and fans are commonly used in conjunction with the module to improve heat dissipation.

7. Applications: The TEC1-12706 module finds applications in various fields, such as electronic cooling, refrigeration, temperature stabilization, thermal cycling, and localized heating. It is commonly used in small-scale projects, prototypes, and DIY cooling/heating systems.

It’s important to note that while the TEC1-12706 module can provide cooling and heating, its efficiency is limited compared to traditional cooling or heating methods. Factors such as ambient temperature, temperature differential, and power input affect the module’s performance.
