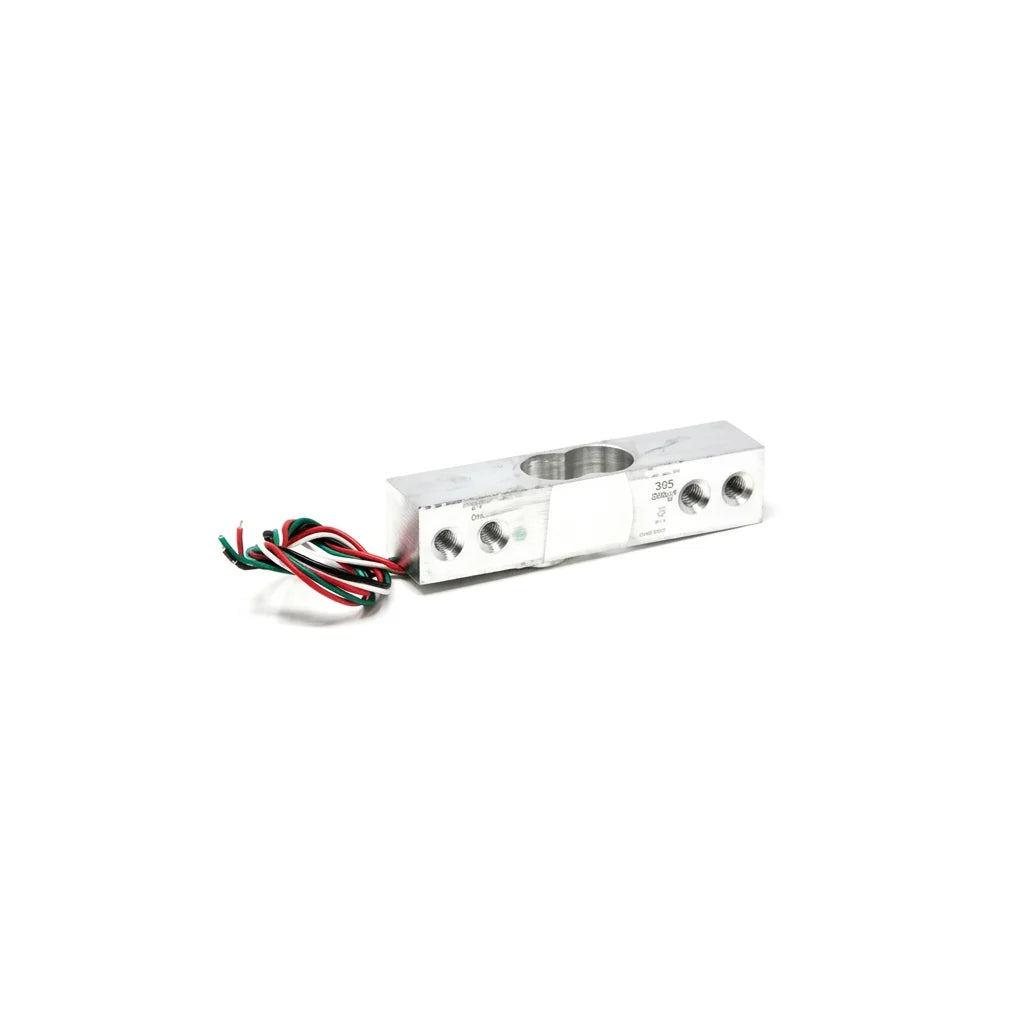

Phaeton CZL611CD 3KG Load Cell Sensor | High Precision Weighing Sensor Screw Mounted for Arduino, HX711 & Digital Scales

Technical Specifications

• Model: CZL611CD
• Brand: Phaeton
• Capacity: 3KG
• Type: Strain Gauge Load Cell
• Rated Output: ~1.0 ± 0.15 mV/V
• Excitation Voltage: 5V – 12V DC
• Non-linearity: ±0.05% FS
• Repeatability: ±0.05% FS
• Material: Aluminum Alloy
• Mounting Type: Screw-Fastened
• Application: Weighing scales, force measurement, automation systems
• Compatible With: HX711 Amplifier, Arduino, ESP32

Short Description

The Phaeton CZL611CD 3KG Load Cell Sensor is a high-precision weighing sensor designed for accurate weight measurement up to 3kg. Featuring a screw-fastened design, it is ideal for digital weighing scales, Arduino projects, and industrial measurement systems.
