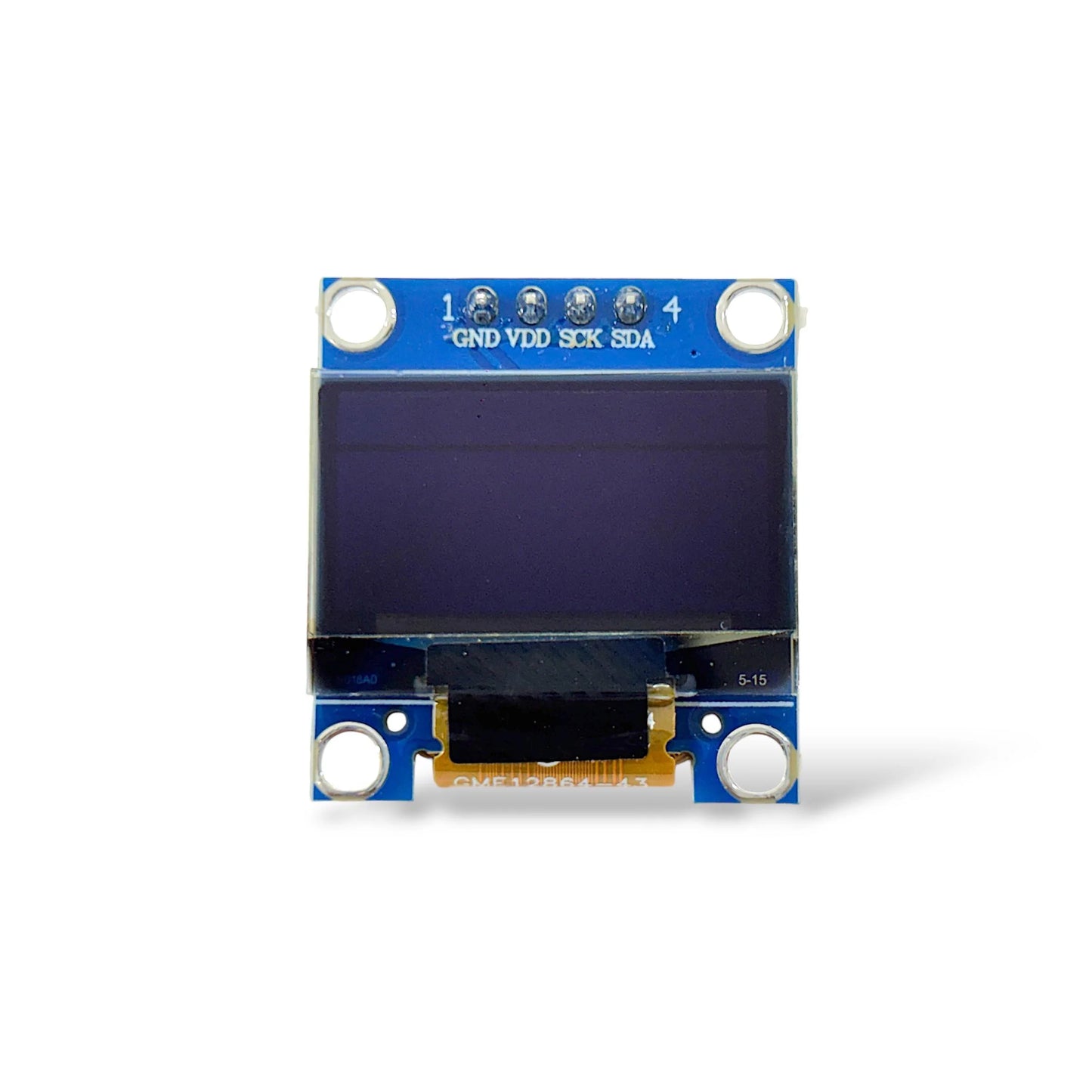

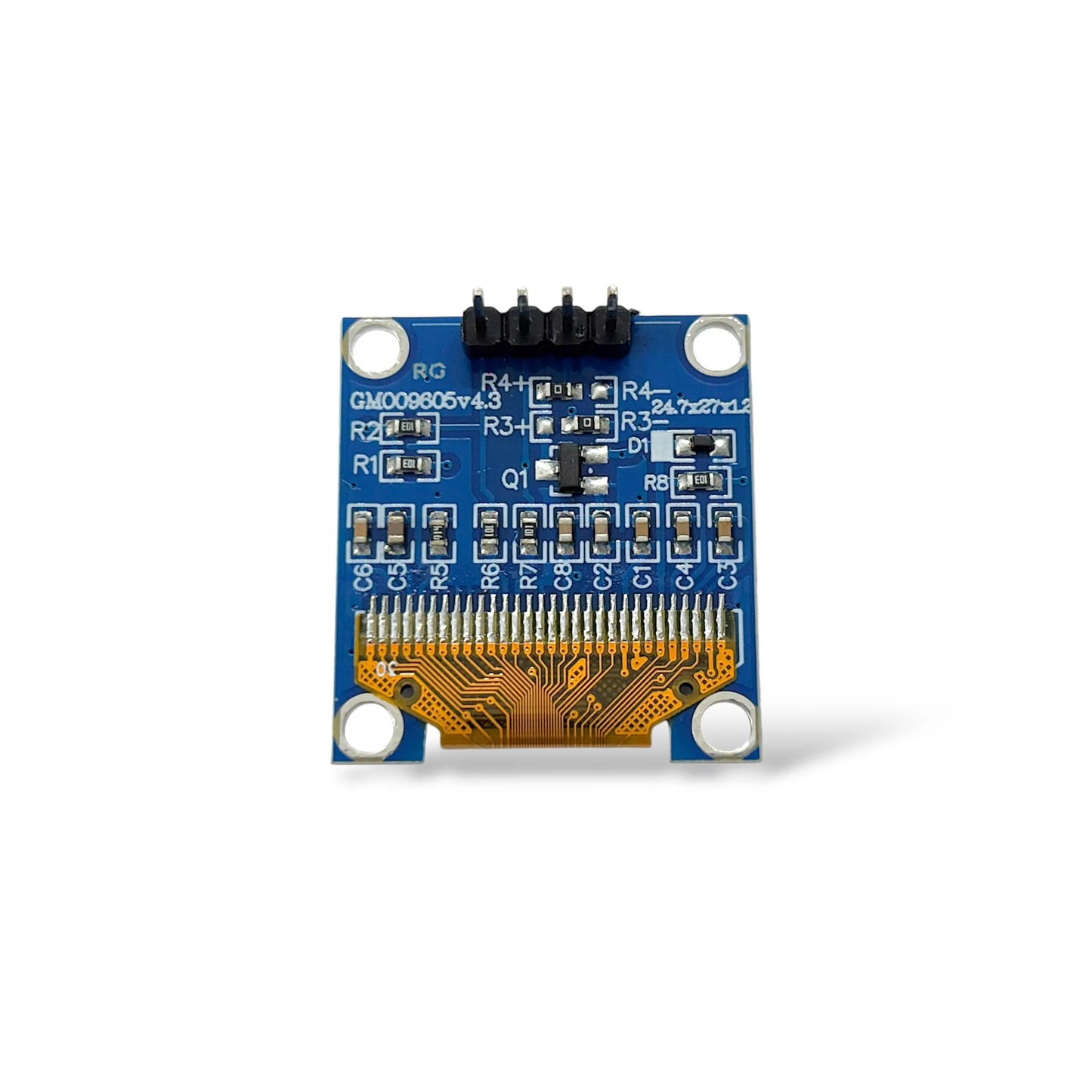

0.96 Inch OLED Display 128x64 Yellow Blue | 4 Pin I2C SSD1306 OLED Module for Arduino & ESP32

Technical Specifications

• Product Type: OLED Display Module
• Display Size: 0.96 Inch
• Resolution: 128 × 64 Pixels
• Display Color: Dual Color (Yellow + Blue)
• Interface: I2C (4 Pin)
• Pins: VCC, GND, SCL, SDA
• Driver IC: SSD1306
• Operating Voltage: 3.3V – 5V DC
• Viewing Angle: Wide Viewing Angle
• Power Consumption: Low Power OLED
• Application: Arduino, ESP32, ESP8266, IoT, DIY electronics

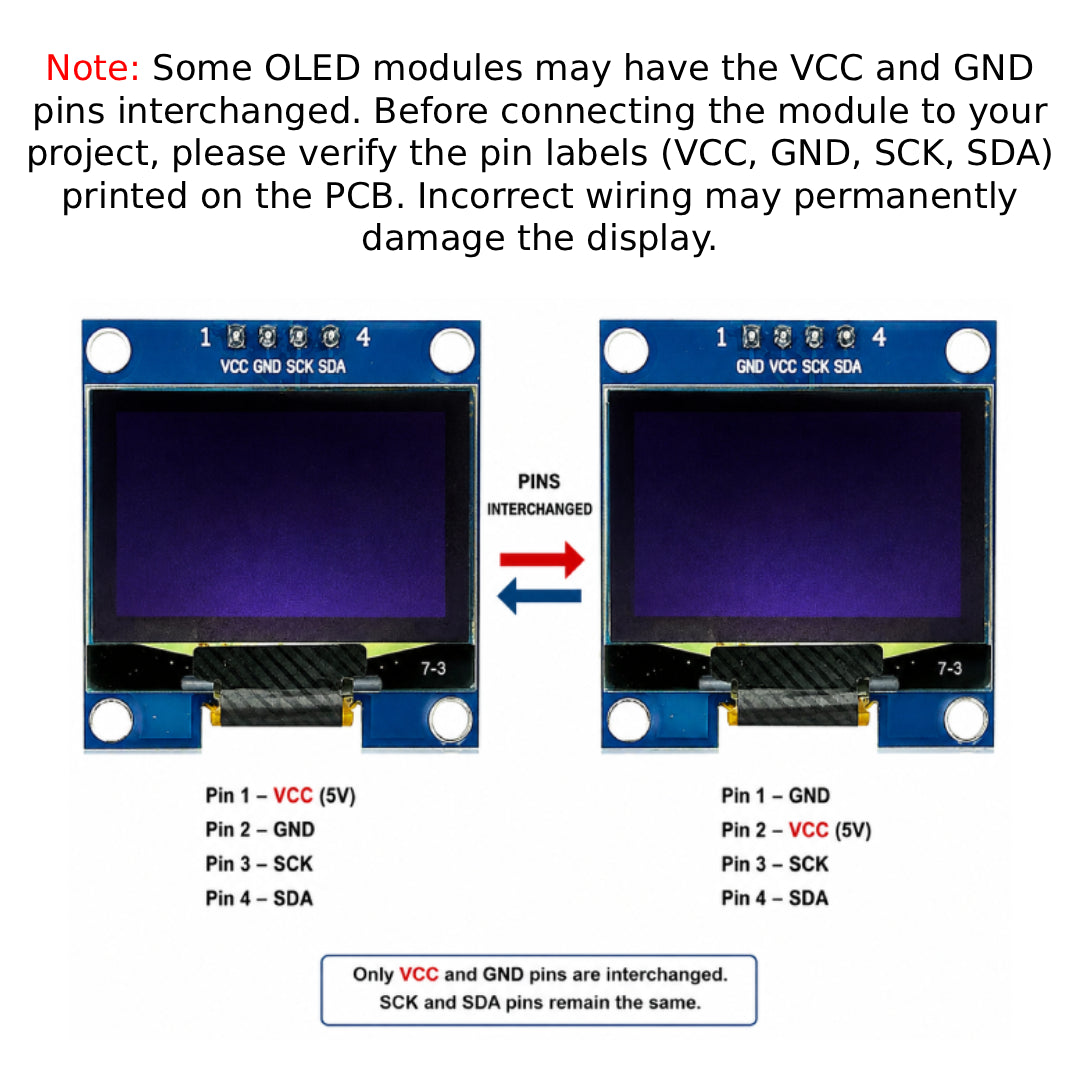

• Note: Some OLED modules may have the VCC and GND
  pins interchanged. Before connecting the module to your
  project, please verify the pin labels (VCC, GND, SCK, SDA)
  printed on the PCB. Incorrect wiring may permanently
  damage the display.

Product Description

0.96 Inch OLED Display (128x64 Yellow Blue) is a compact and high-contrast display module featuring dual-color output. Using the SSD1306 driver and I2C interface, it requires only 4 pins, making it ideal for Arduino, ESP32, and IoT projects for displaying text, graphics, and sensor data.
