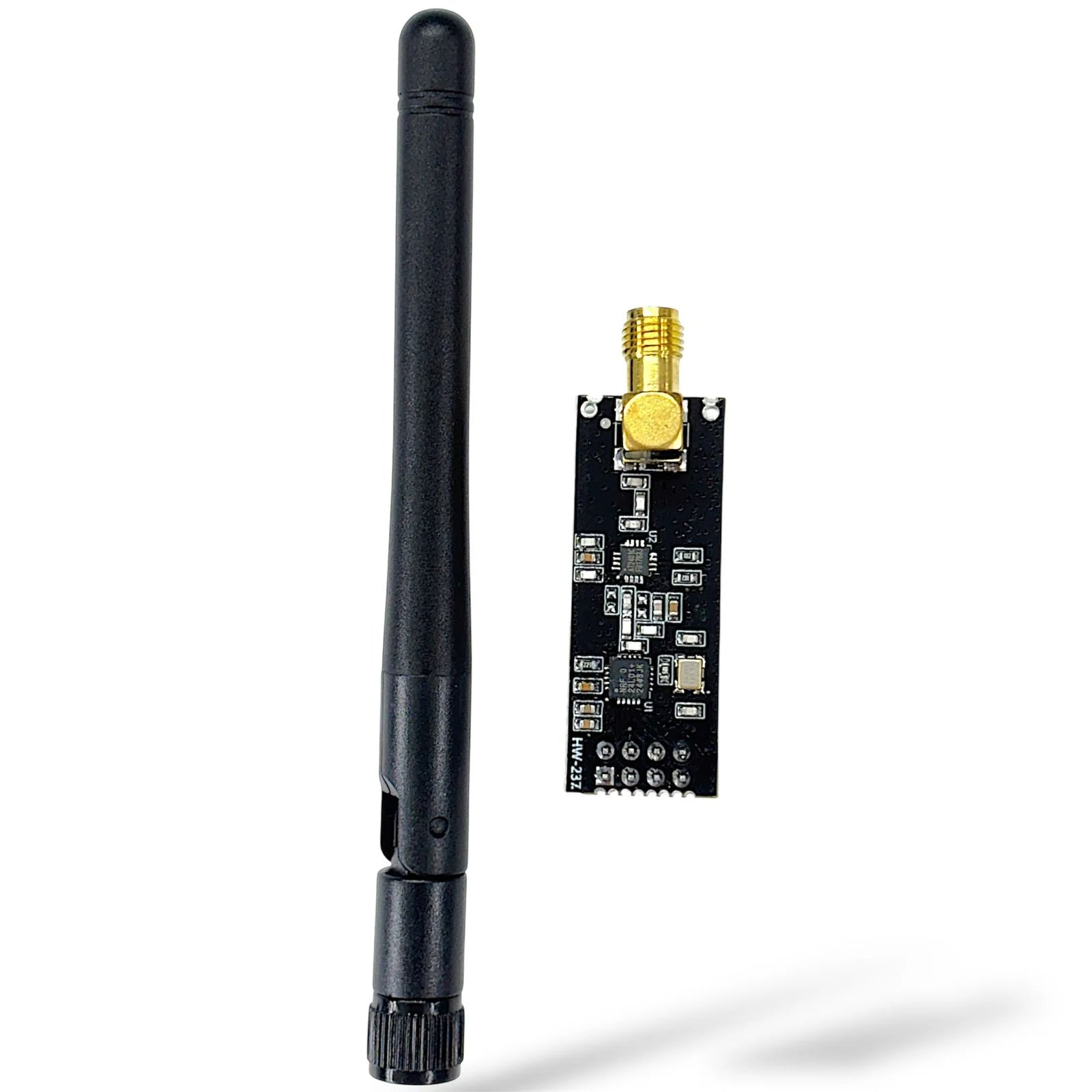

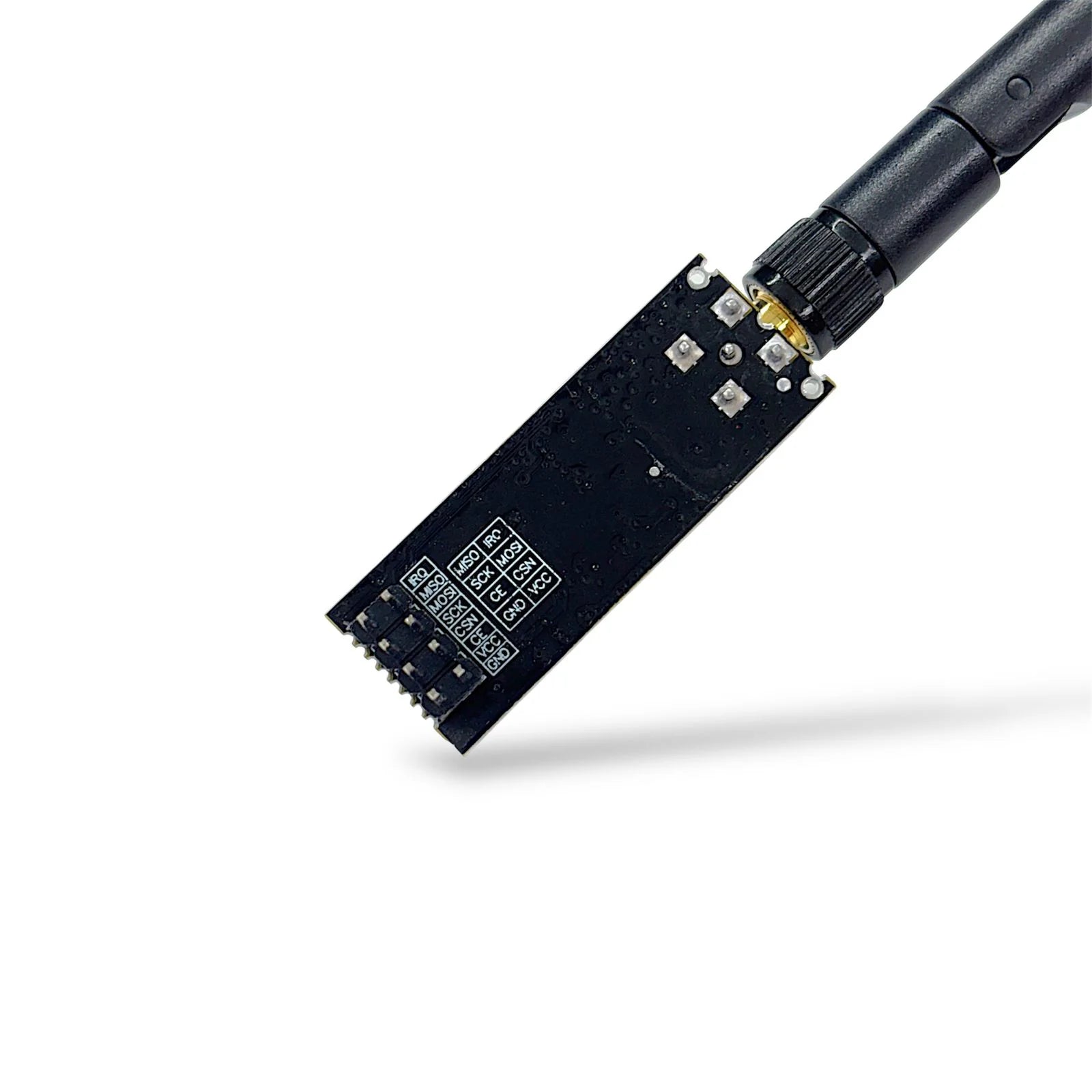

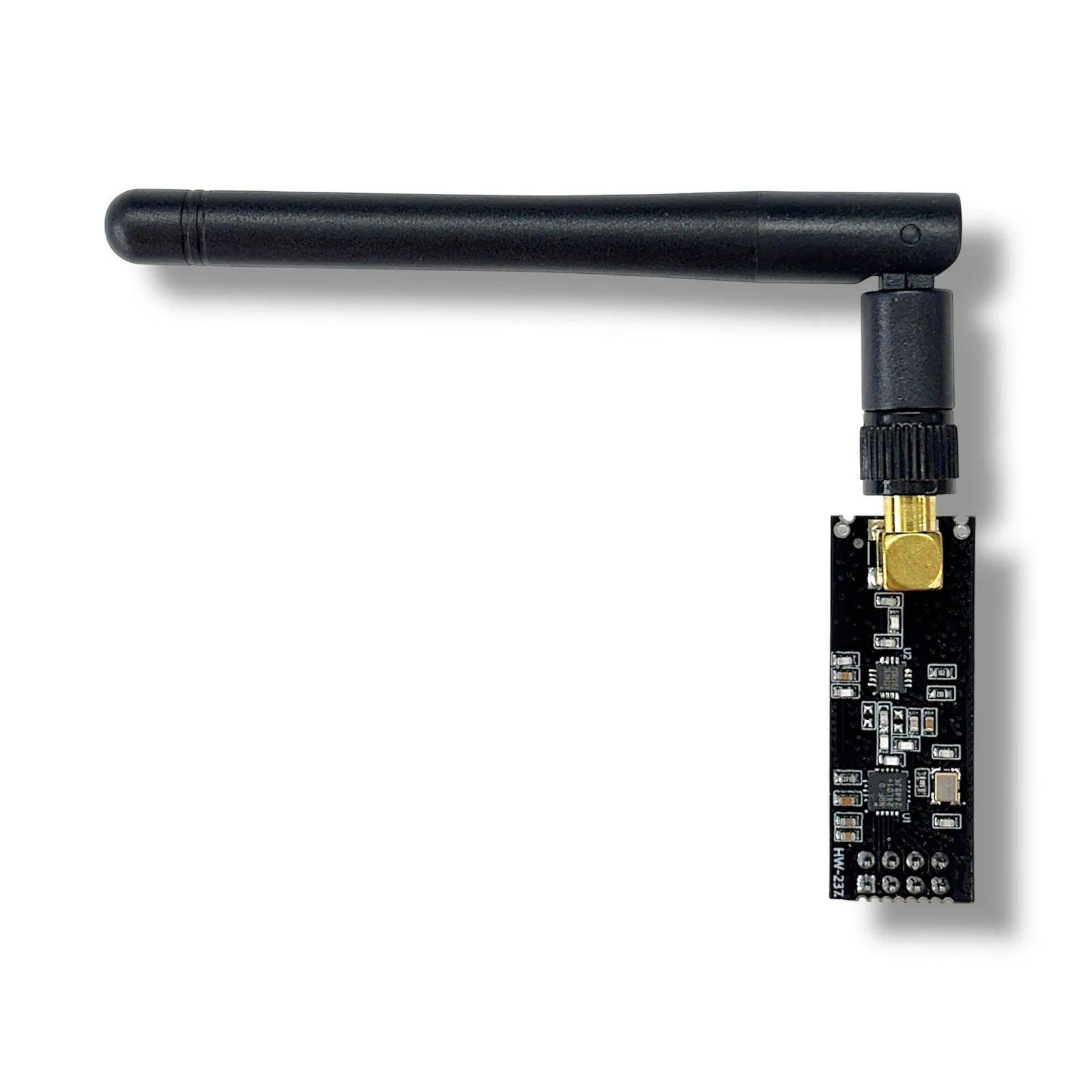

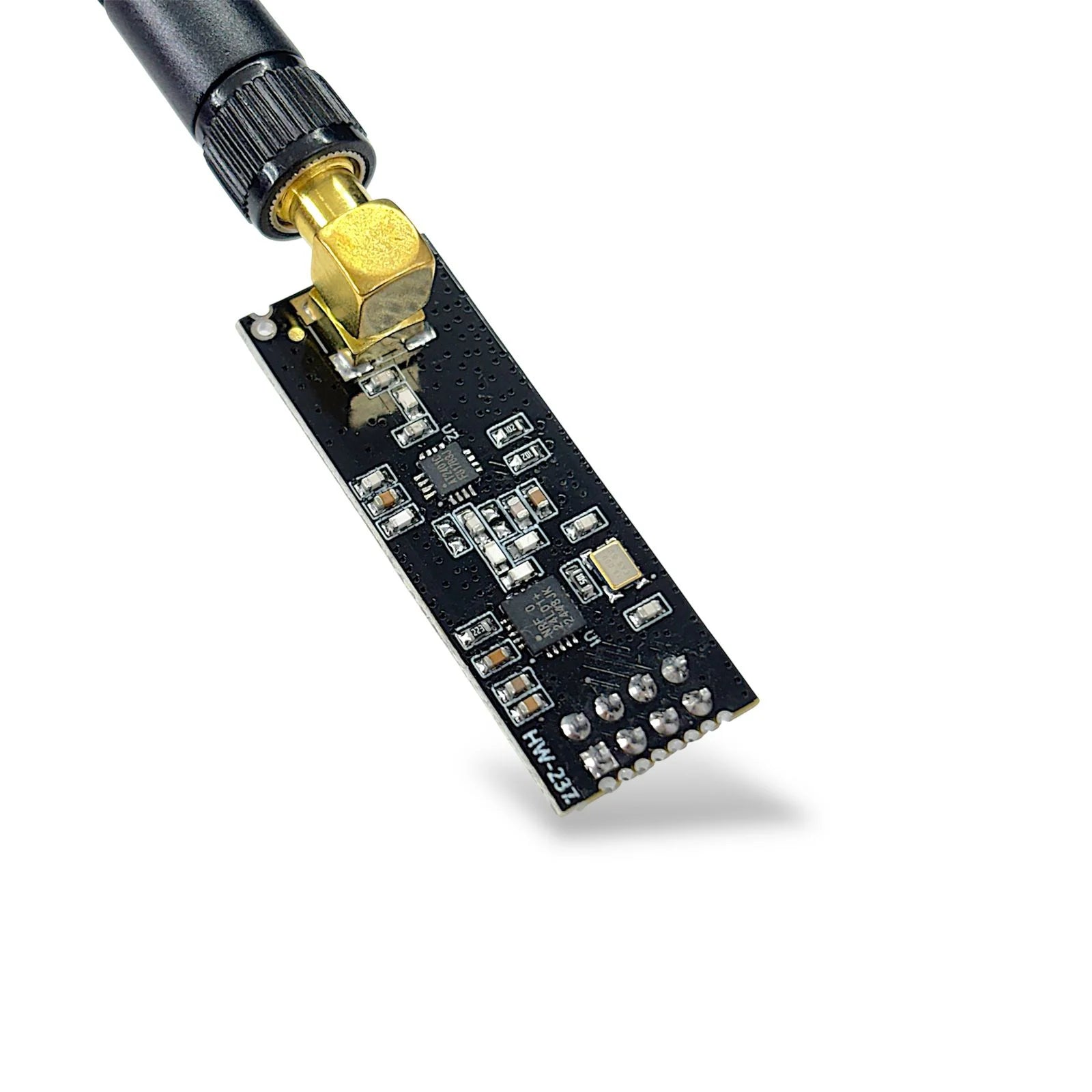

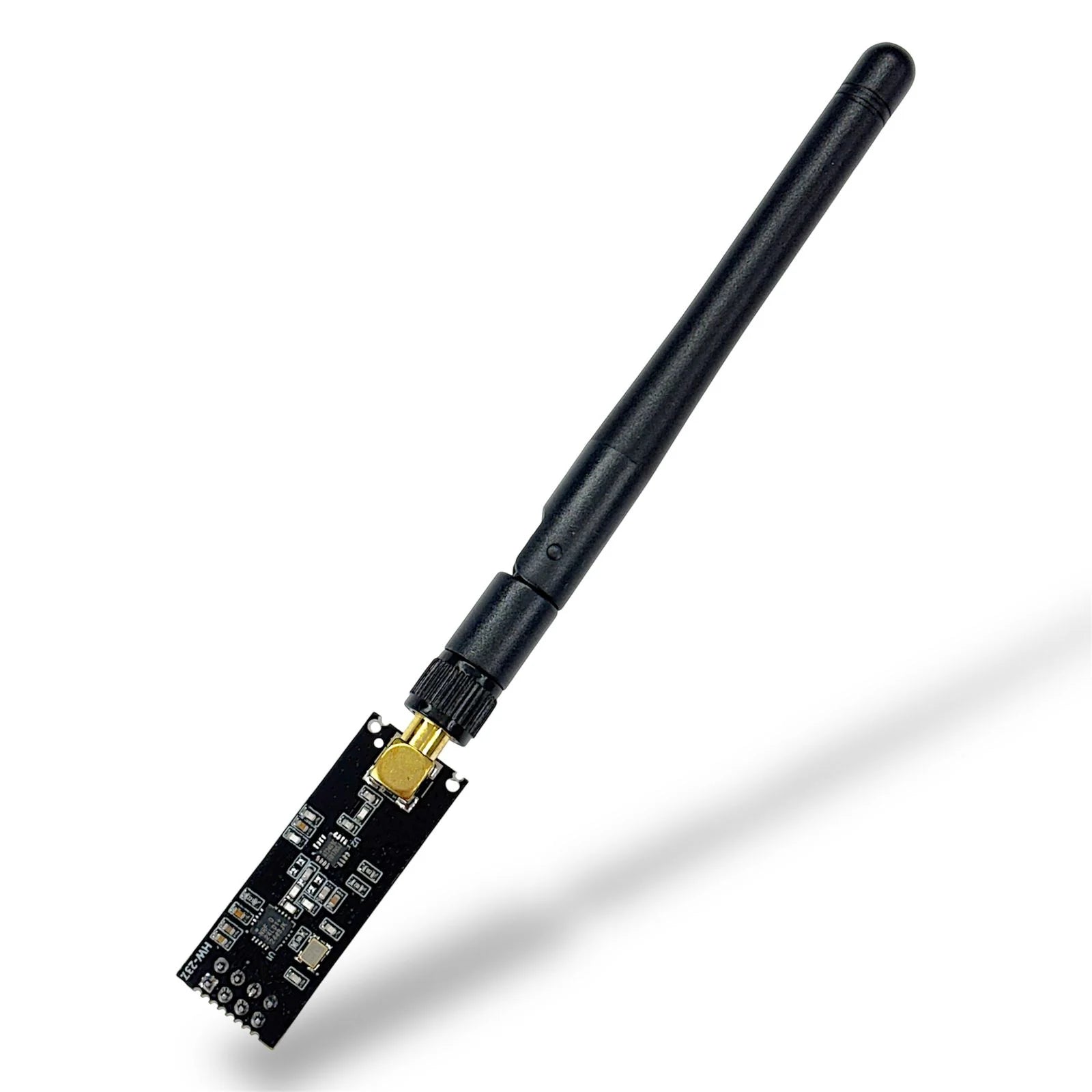

NRF24L01+PA+LNA 2.4GHz Wireless Transceiver Module | Long-Range RF Module for Arduino & IoT Projects

Technical Specifications

• Chipset: NRF24L01+ with PA & LNA
• Operating Frequency: 2.4GHz ISM Band
• Modulation: GFSK
• Data Rate: 250kbps / 1Mbps / 2Mbps
• Output Power: +20dBm (with PA)
• Receiver Sensitivity: –82dBm to –94dBm
• Voltage Supply: 3.3V DC
• Current Consumption: TX: ~115mA (max), RX: ~13.5mA
• Interface: SPI
• Communication Range: Up to 1 km (line of sight, with PA+LNA antenna)
• Antenna: External or PCB trace antenna
• Applications: Wireless sensor networks, IoT devices, Arduino/Raspberry Pi projects, robotics, telemetry, remote control systems
