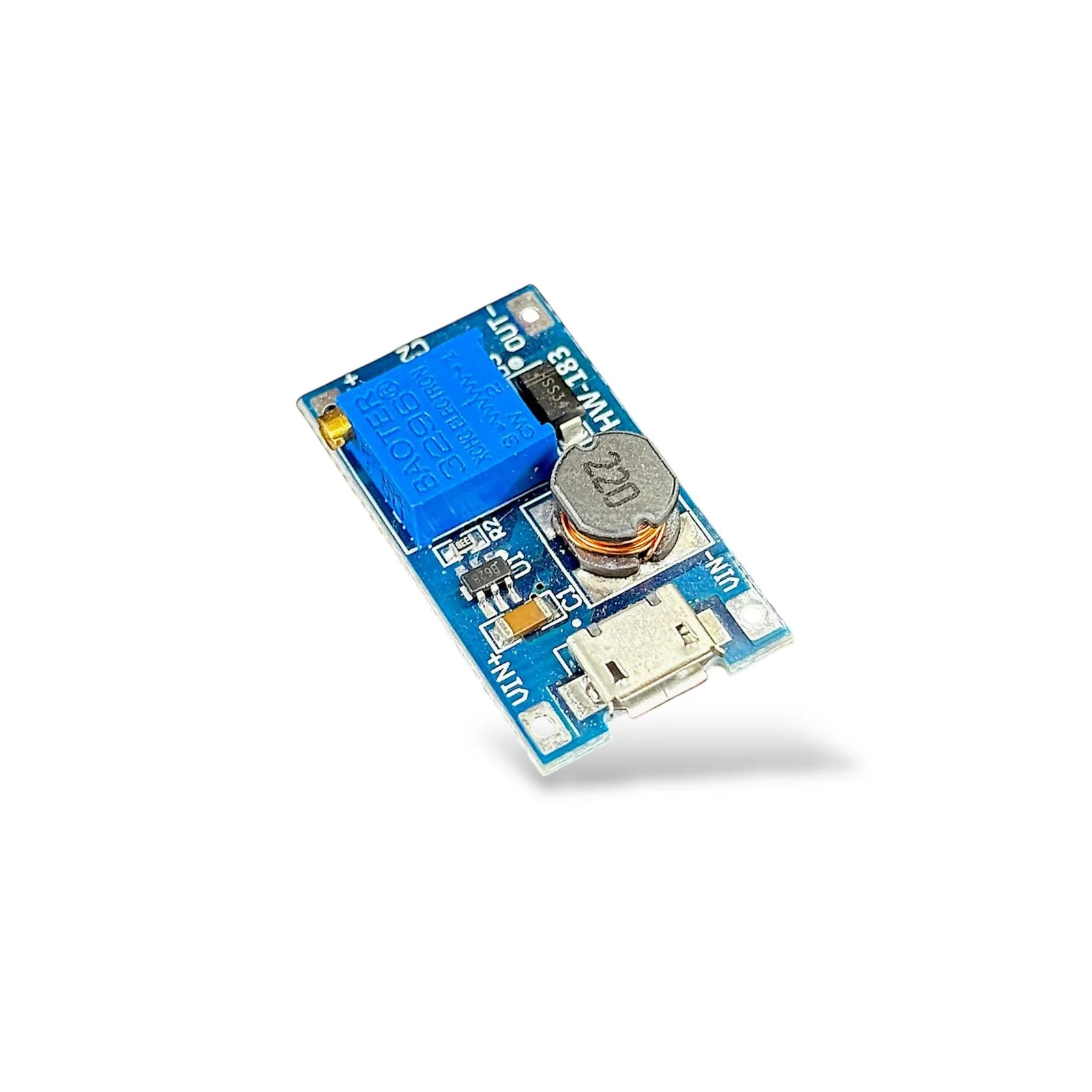

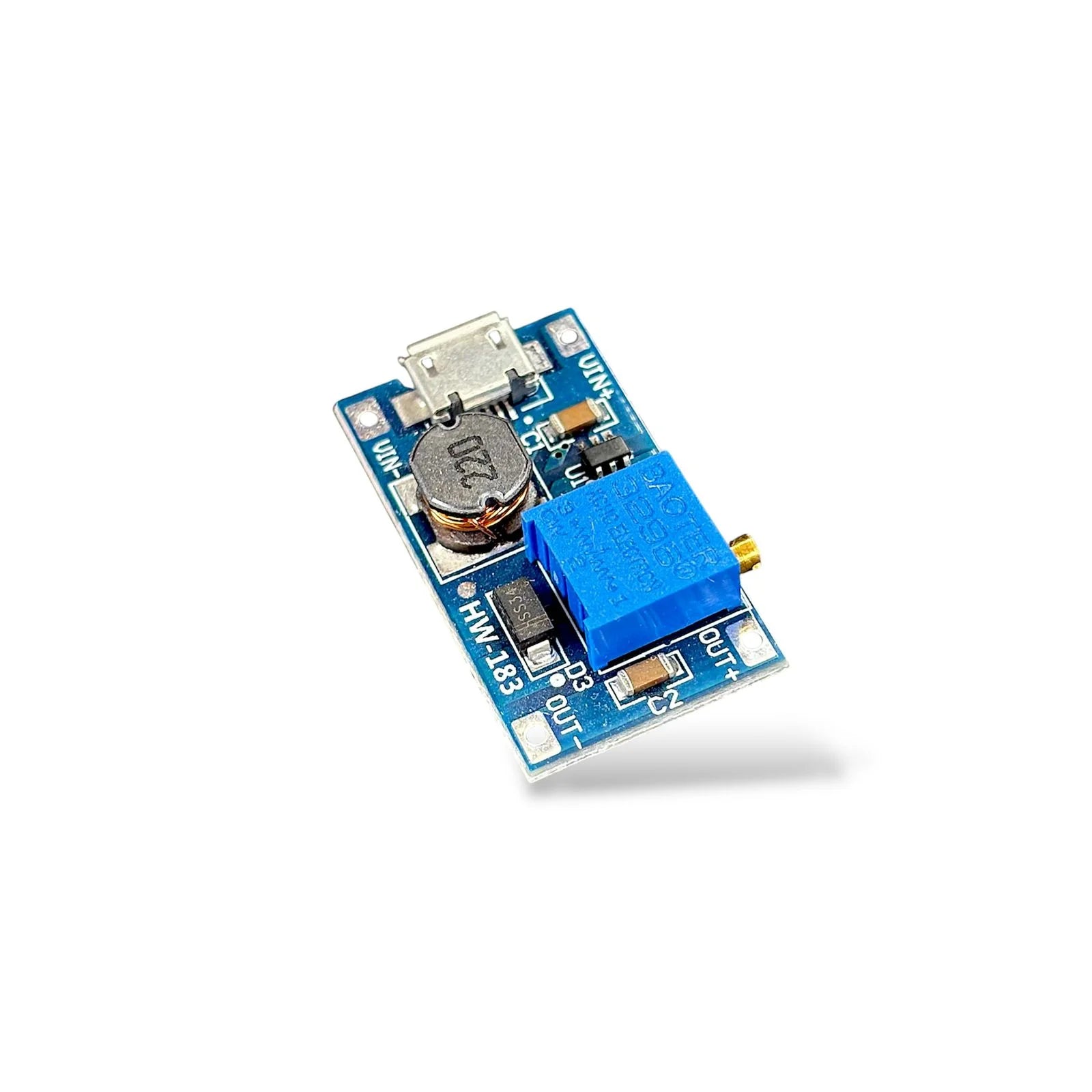

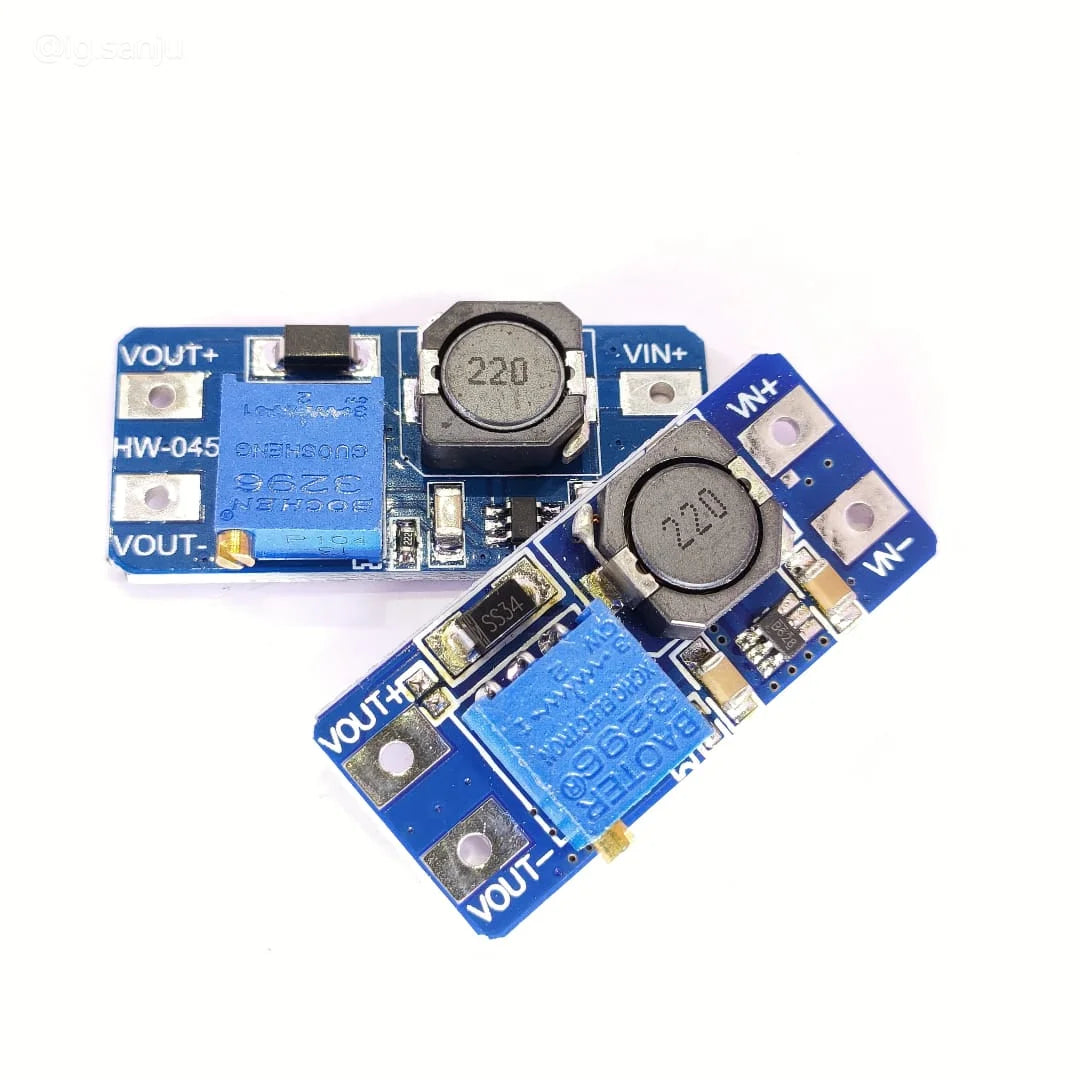

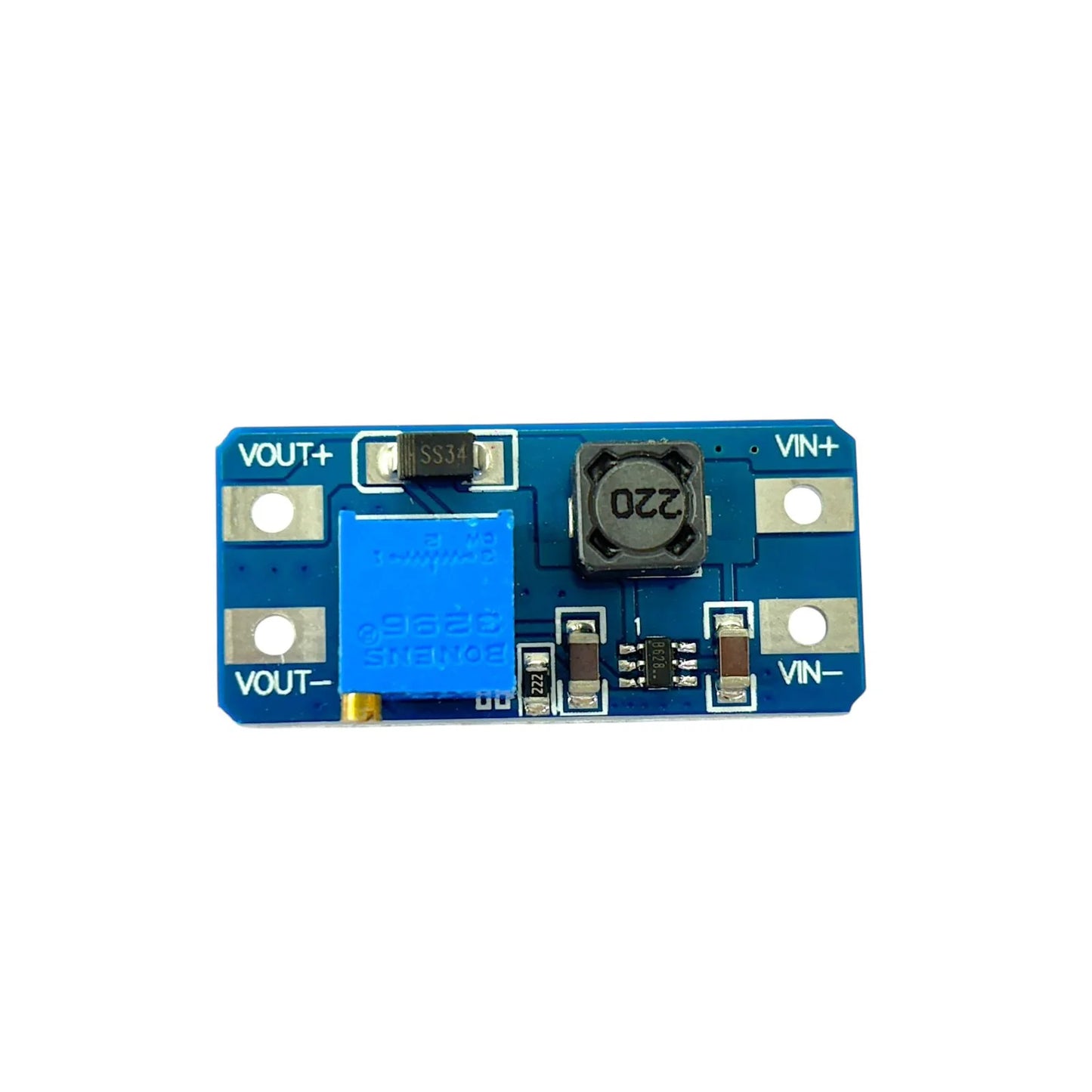

MT3608 Step Up Power Booster Module 2A Max DC-DC Power (Buy 3 & Get 1 DC Motor)

Specification

• Input Voltage : 2V to 7V
• Output Voltage : 2V to 28V (adjustable)
• More Info : See Description

Watch video click on the link below

https://youtu.be/XakvXXU56DY

Description

The MT3608 is a compact and efficient DC-DC step-up power module designed to boost low voltage sources to higher voltages. It is commonly used in various electronic projects and applications where a higher voltage is required, such as powering LEDs, sensors, motors, or charging batteries.

The module has a wide input voltage range, typically from 2V to 24V, making it compatible with a variety of power sources, including batteries, solar panels, or regulated power supplies. However, the recommended operating range for optimal performance is usually between 2V and 5V.

With a maximum output current of 2A, the MT3608 can deliver sufficient power to drive moderate loads. The output voltage is adjustable and can be set within a range of 2V to 28V using an onboard potentiometer or external resistors.

The module achieves high efficiency, typically around 93%, which helps minimize power loss and heat generation during the voltage boosting process. It employs a fixed frequency switching mechanism with a frequency of 1.2MHz, ensuring stable and reliable performance.

The MT3608 also incorporates several built-in protections to safeguard the module and the connected circuitry. It has over-temperature protection, which prevents excessive heat buildup, over-current protection to limit the output current in case of a fault, and short-circuit protection to safeguard against accidental short circuits.

In terms of size, the MT3608 module is generally compact and has dimensions of approximately 36mm x 17mm x 6.5mm, although the exact dimensions may vary slightly depending on the specific module version.

Overall, the MT3608 2A Max DC-DC Step-Up Power Module Power Booster is a versatile and efficient solution for boosting voltage in electronic projects, offering flexibility, reliability, and protection features to ensure safe and stable power conversion.

The MT3608 is a popular DC-DC step-up power module commonly used for boosting low voltage sources to higher voltages. Here are the general specifications for the MT3608 2A Max DC-DC Step-Up Power Module:

1. Input Voltage Range: Typically 2V to 24V (recommended operating range is 2V to 5V)
2. Output Voltage Range: 2V to 28V (adjustable)
3. Maximum Output Current: 2A
4. Efficiency: Typically around 93%
5. Switching Frequency: 1.2MHz (fixed frequency)
6. Operating Temperature Range: -40°C to +85°C
7. Built-in Over-temperature Protection
8. Built-in Over-current Protection
9. Built-in Short-circuit Protection
10. Dimensions: Typically around 36mm x 17mm x 6.5mm (may vary depending on the specific module version)

It’s important to note that the specifications can vary slightly depending on the specific manufacturer and version of the module. Therefore, it’s recommended to refer to the datasheet or product documentation provided by the manufacturer for the most accurate and detailed information about a particular MT3608 module.
