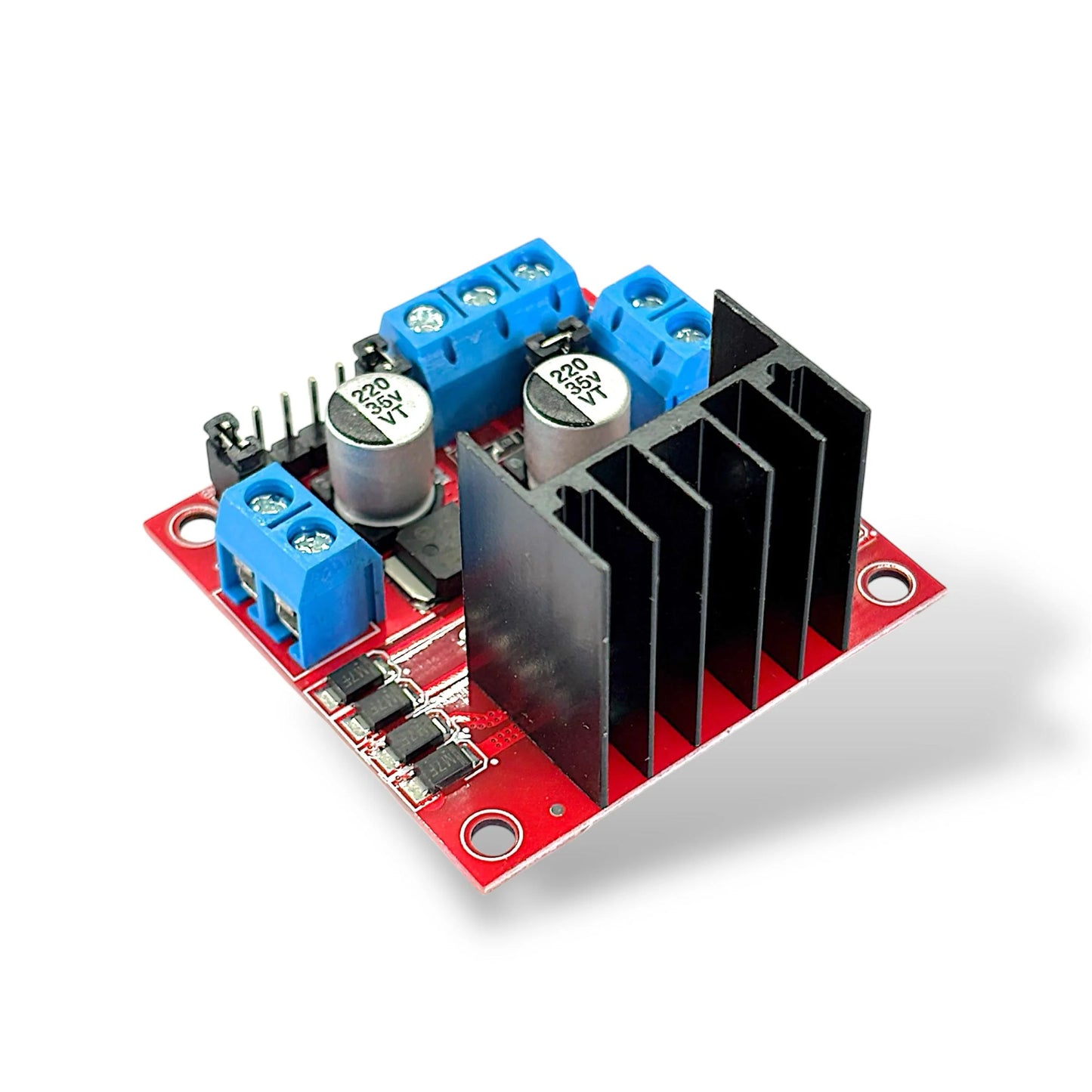

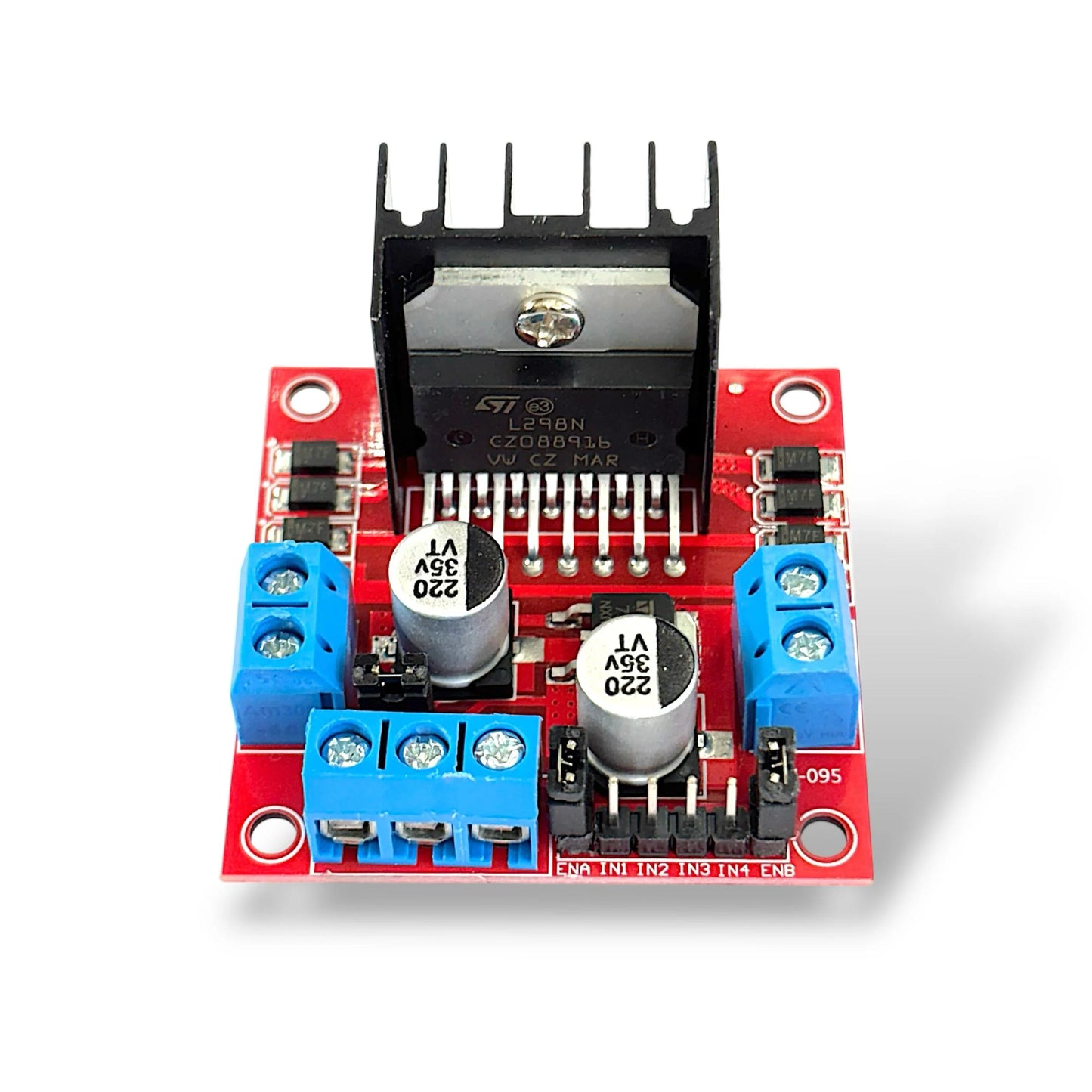

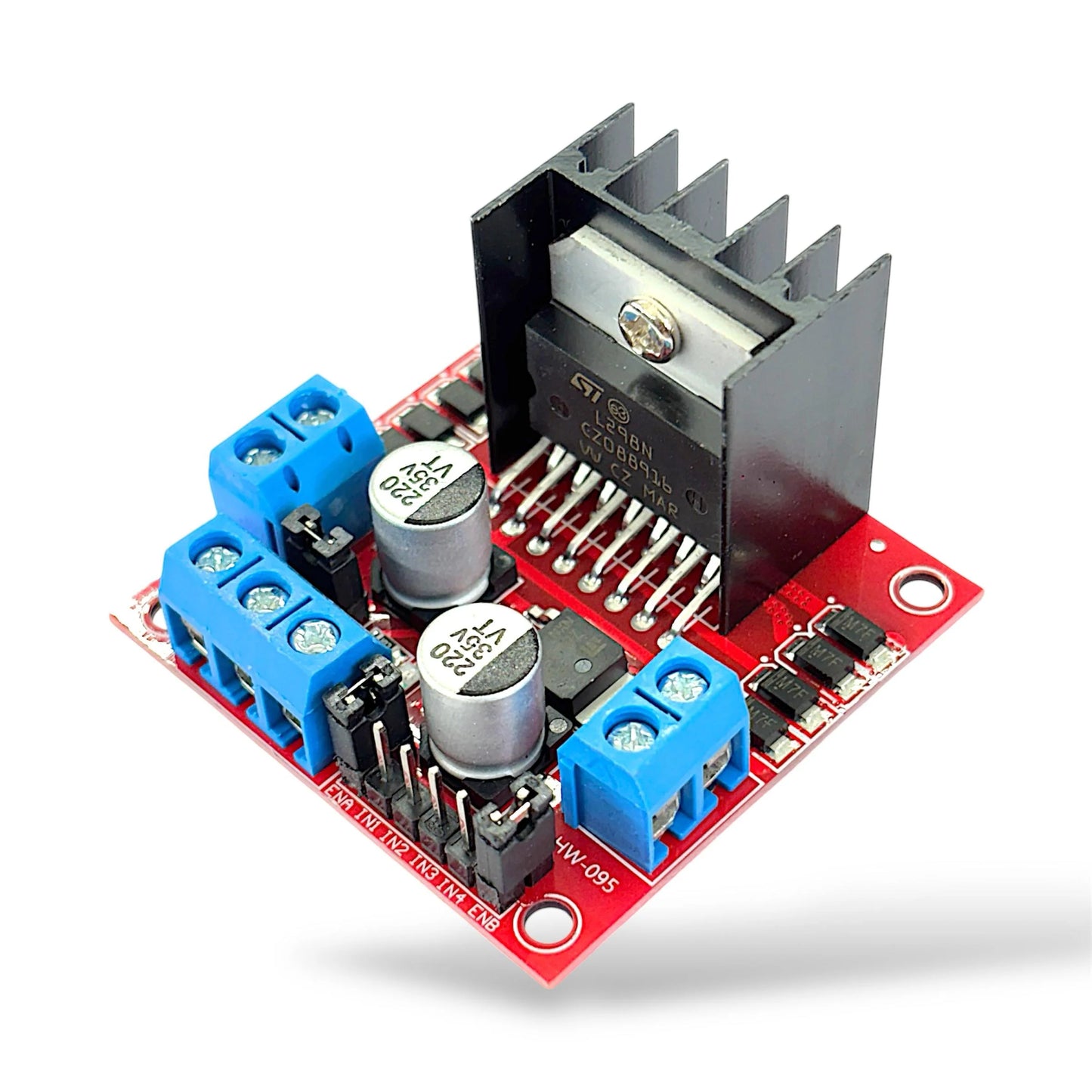

Motor Driver (L298 2A Dual Motor)

Specification

1. Maximum Motor Voltage: 46V
2. Maximum Current: 2A per channel (with proper heat sinking)
3. Peak Current: 3A per channel (with proper heat sinking)
4. Logic Voltage: 5V DC
5. Maximum Input Voltage: 7 to 12V DC
6. Operating Temperature Range: -20°C to 85°C
7. Pin Count: 15

Description

The L298 is a dual full-bridge driver IC that can be used to control two DC motors or a bipolar stepper motor. Here are some technical specifications of the L298 motor driver:

1. Maximum Motor Voltage: 46V
2. Maximum Current: 2A per channel (with proper heat sinking)
3. Peak Current: 3A per channel (with proper heat sinking)
4. Logic Voltage: 5V DC
5. Maximum Power Dissipation: 25W
6. Maximum Input Voltage: 7 to 12V DC
7. Operating Temperature Range: -20°C to 85°C
8. Pin Count: 15
9. Package Type: Multiwatt15

The L298 motor driver is designed to work with a wide range of microcontrollers and other control circuits. It has a built-in flyback diode protection to help prevent damage to the IC and other components in the system. It also has built-in thermal shutdown protection to prevent overheating. The L298 can be used in a variety of applications, such as robotics, automation, and other motor control systems.
