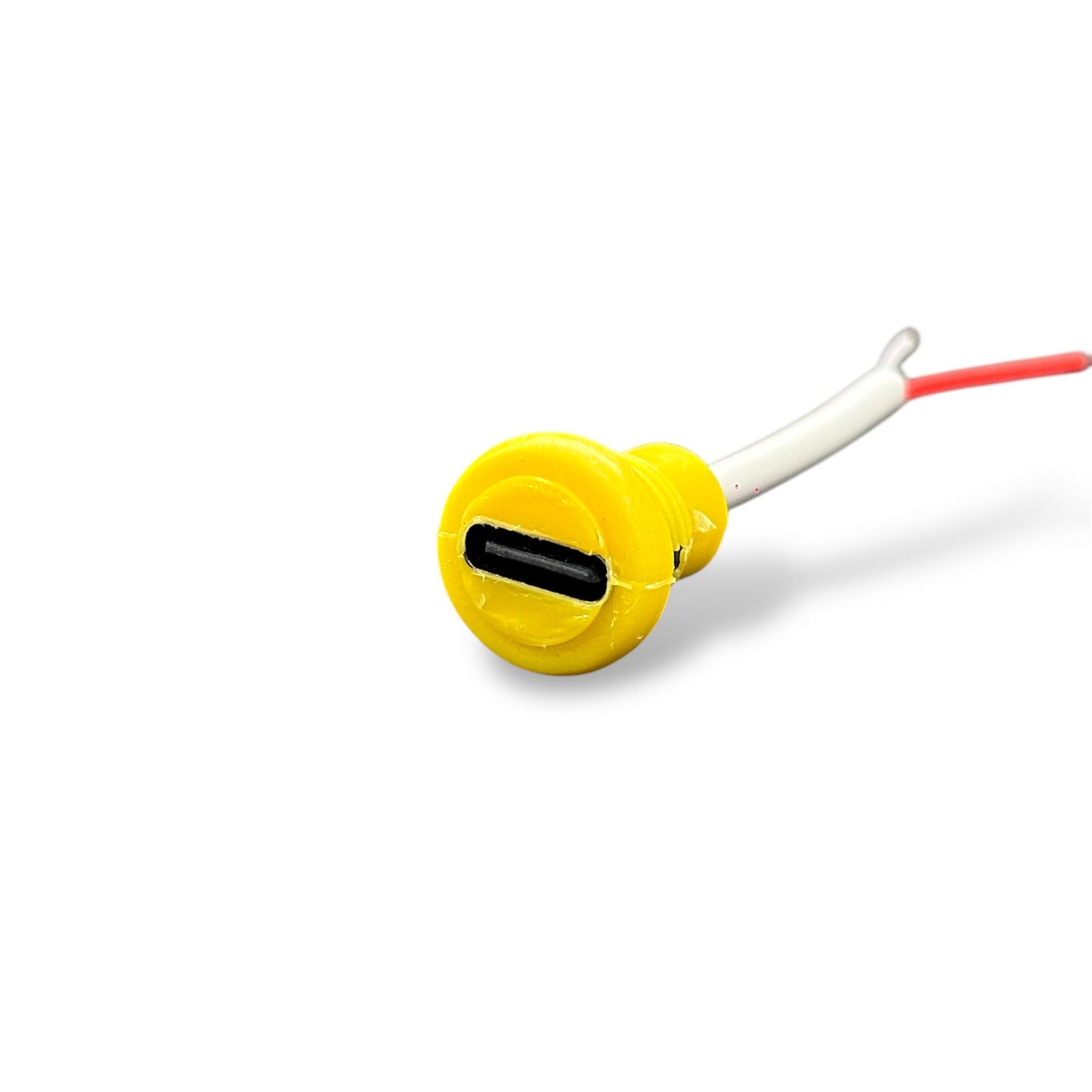

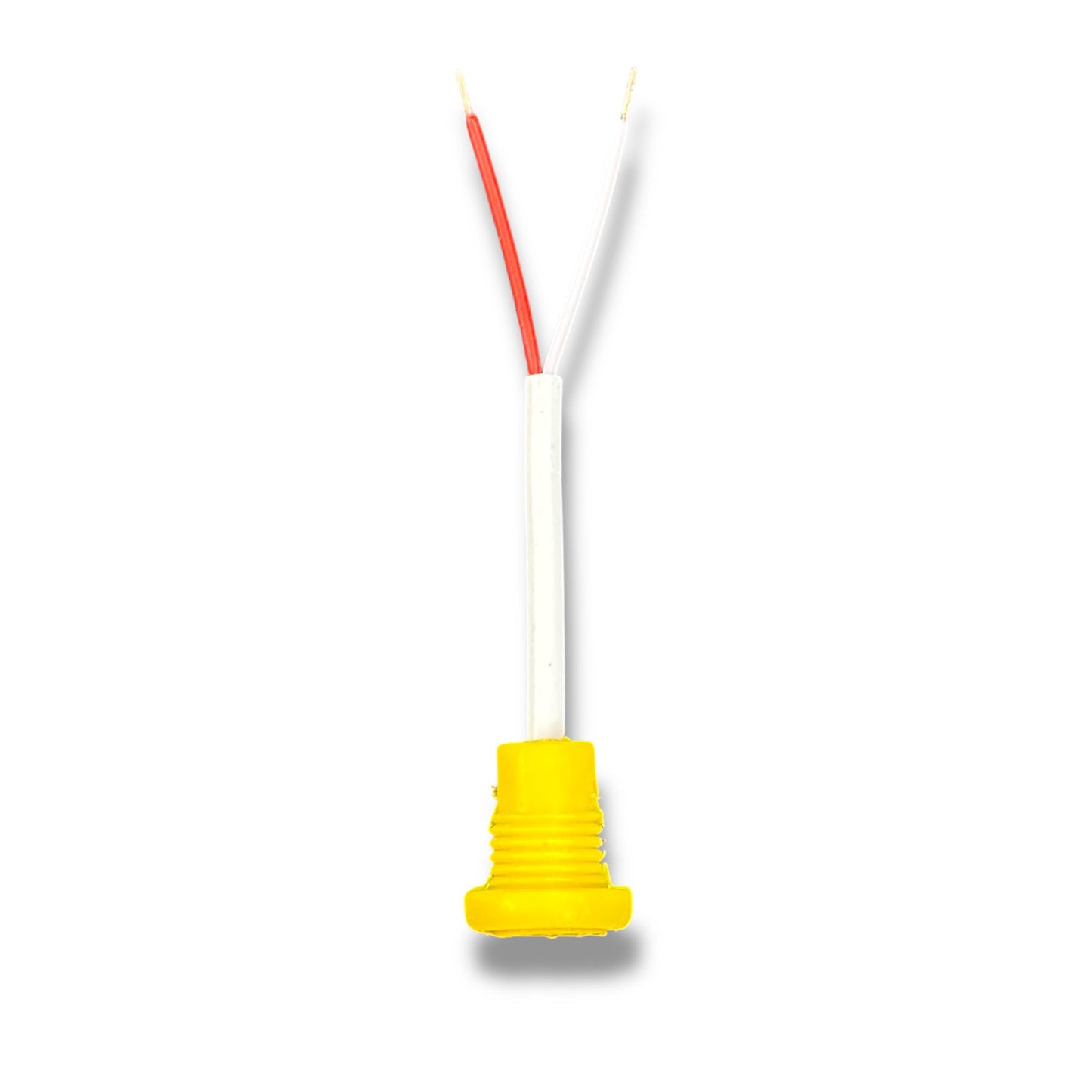

Micro USB Female Charging Socket (Buy 10 & Get 2 Push Button + 3 LED)

Specification

• Connector Type: Micro USB Female
• Pin Configuration: 2 pins
• Pinout Configuration:
• Pin 1: 5V/VCC
• Pin 2: GND (Ground)

Description

Micro USB Female Charging Socket is a type of connector used for charging in many electronic devices. Here are the technical specifications of Micro USB Female Charging Socket:

1. Connector Type: Micro USB Female

2. Pin Configuration: 2 pins

3. Pinout Configuration:

4. Pin 1: 5V/VCC

5. Pin 2: GND (Ground)

6. Operating Voltage: 5V DC

7. Current Rating: 1.5A maximum

8. Contact Resistance: 30mOhm maximum

9. Insulation Resistance: 100MOhm minimum

10. Durability: 10,000 cycles minimum

11. Temperature Range: -25°C to +85°C

11. Material: Copper alloy contacts with nickel plating, thermoplastic housing.

12. Dimensions: The Micro USB Female Charging Socket is typically small, measuring around 6mm x 6mm x 2.7mm.

Note: The above specifications may vary slightly depending on the manufacturer and the specific model of the Micro USB Female Charging Socket.
