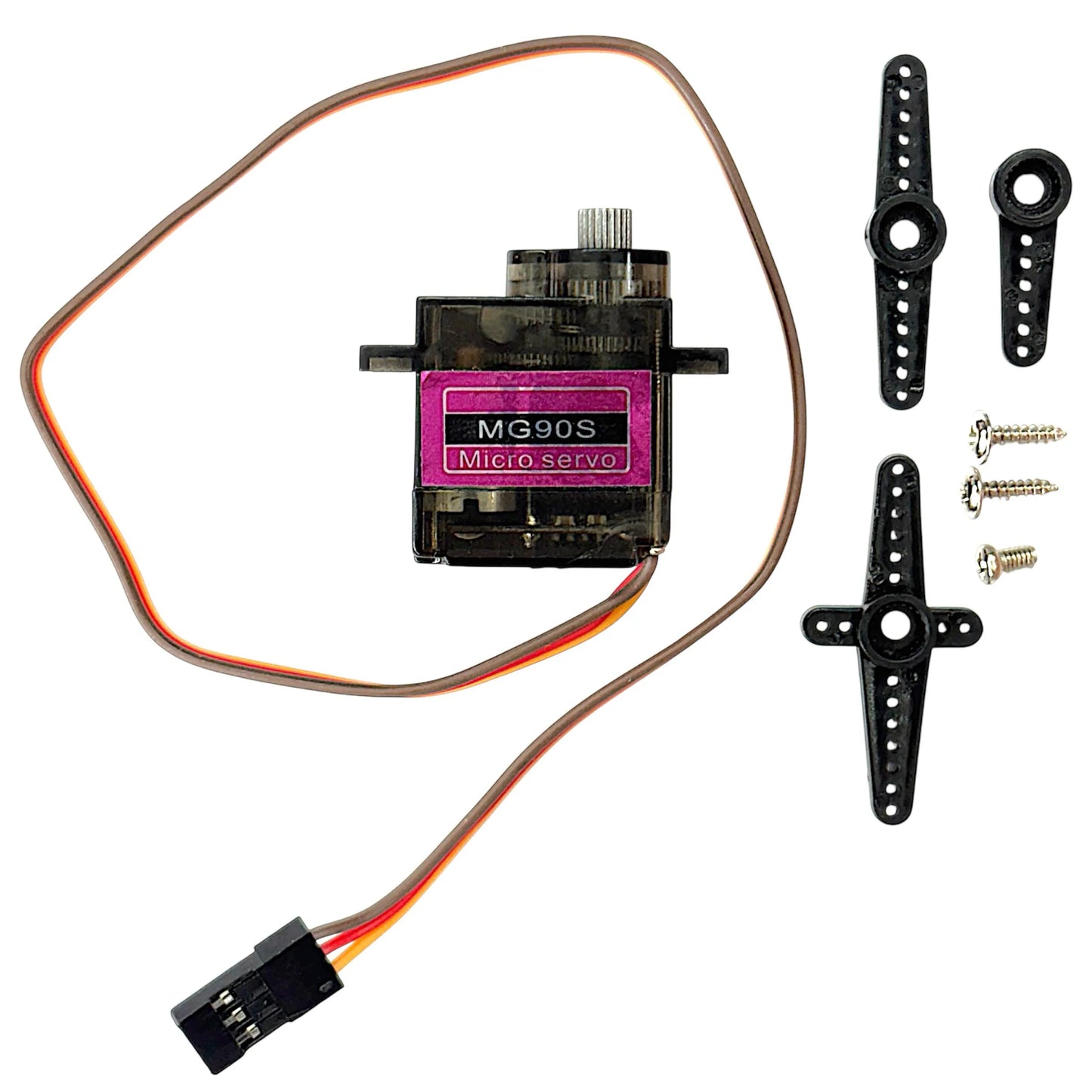

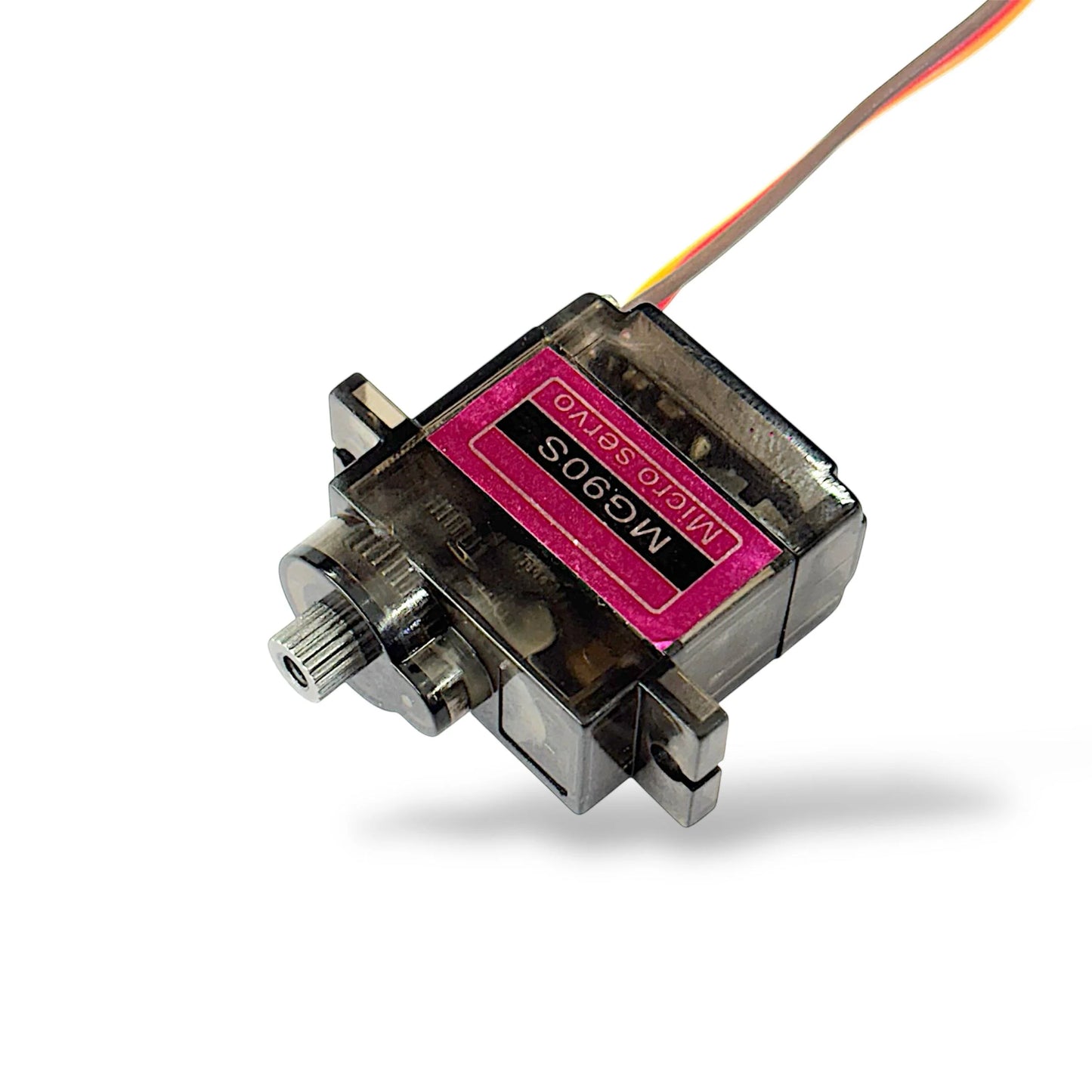

MG90S Servo Motor with Metal Gear | Micro Servo MG90S

Specification

• Model: MG90S
• Weight: 13.4g
• Operating Voltage: 4.8 ~ 6.6 VDC
• Operating Speed:
  • - 4.8V: 0.10 sec/60°
  •  - 6.6V: 0.08 sec/60°
• Stall Torque:
  •  4.8V: 1.8 Kg-Cm
  • 6.6V: 2.2 Kg-Cm
• Operating Temperature: 0 to 55°C
• Dead Band Width: 1 μs
• Rotational Degree: 180º
• Servo Plug: JR
• Cable Length: 25 cm
• Dimensions:
  • Length: 12.4 mm
  • Width: 22.8 mm
  • Height: 32.5 mm

Features

• Accurate and fast positioning.
• Instant control response.
• Constant torque throughout the servo travel range.
• Strong holding power for various applications.
