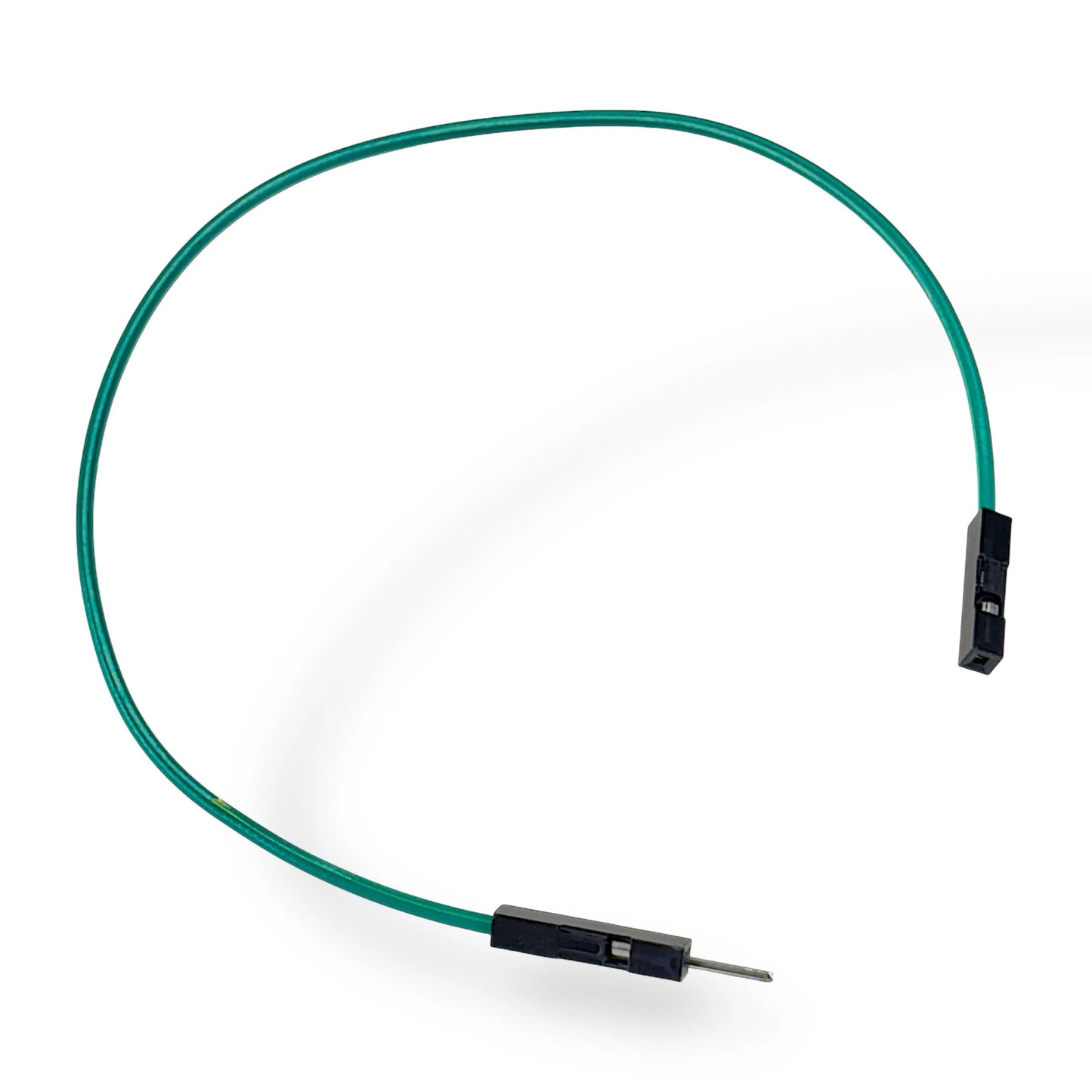

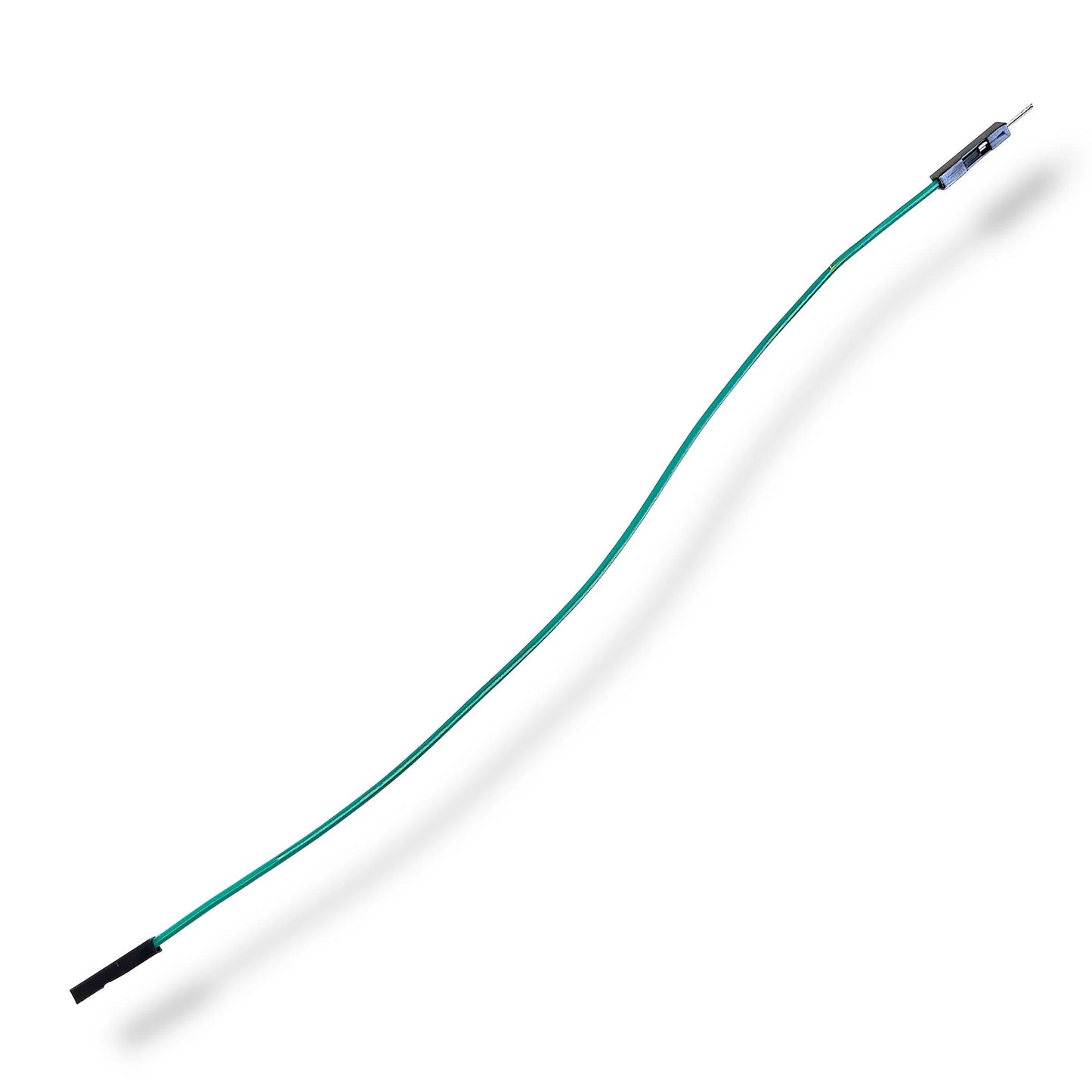

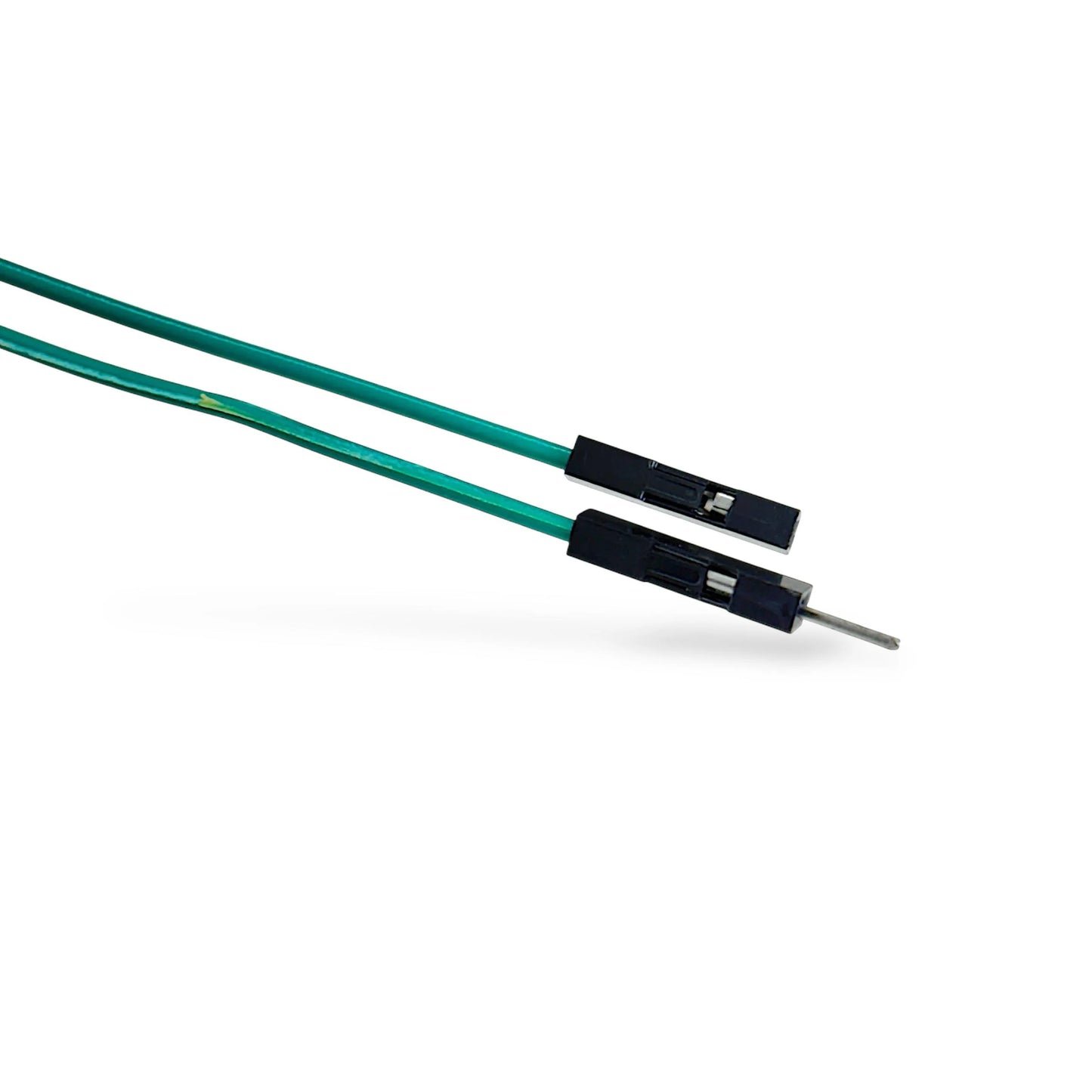

Male to Female Jumper Wire (Buy 100 & Get 10 Free)

Specification

• Wire gauge: 22 AWG and 24 AWG
• Length: 10 cm (4 inches) and 20 cm (8 inches)
• Insulation: PVC
• Pin pitch: 2.54 mm (0.1 inches)

Description

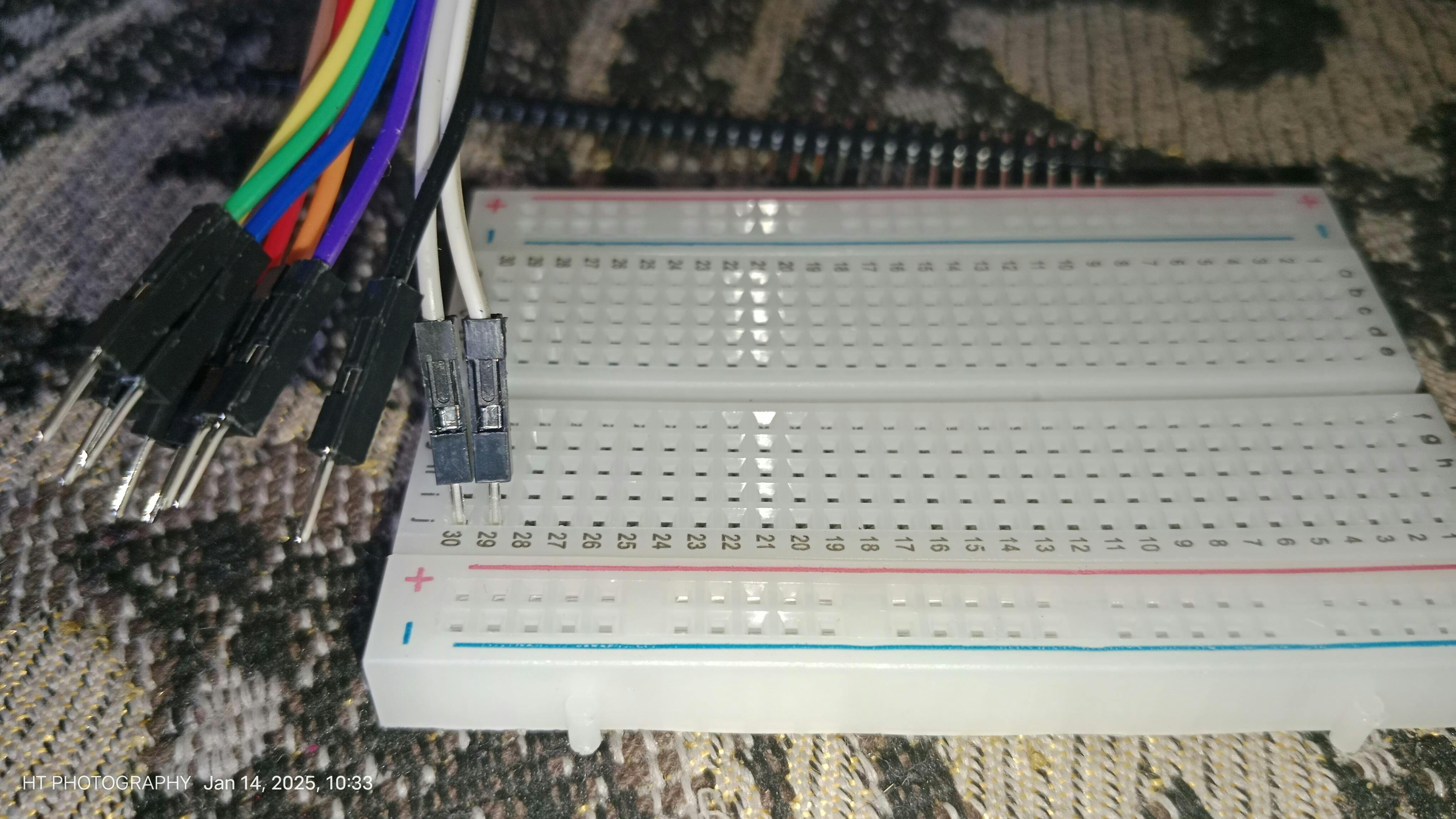

Male to female jumper wires are commonly used to connect components on breadboards, prototype boards, or other electronic circuits. These wires typically have a solid core, allowing them to be easily plugged into male & female headers.

The specifications of male-to-female jumper wires can vary depending on the manufacturer and intended use, but some common specifications include:

– Wire gauge: The wire gauge refers to the thickness of the wire. The most common wire gauges for jumper wires are 22 AWG and 24 AWG.
– Length: Jumper wires come in various lengths, ranging from a few centimeters to several meters. Common lengths for breadboard jumper wires are 10 cm (4 inches) and 20 cm (8 inches).
– Insulation: Jumper wires are typically insulated with PVC or silicone to protect against short circuits and provide electrical insulation.
– Pin pitch: The pin pitch refers to the distance between the male & female header pins. The most common pin pitch for breadboard jumper wires is 2.54 mm (0.1 inches), which is the standard pitch for most breadboards and prototyping boards.

It’s important to choose the right specifications for your project to ensure that the jumper wires can handle the required current and voltage levels, and fit properly on your circuit board.
