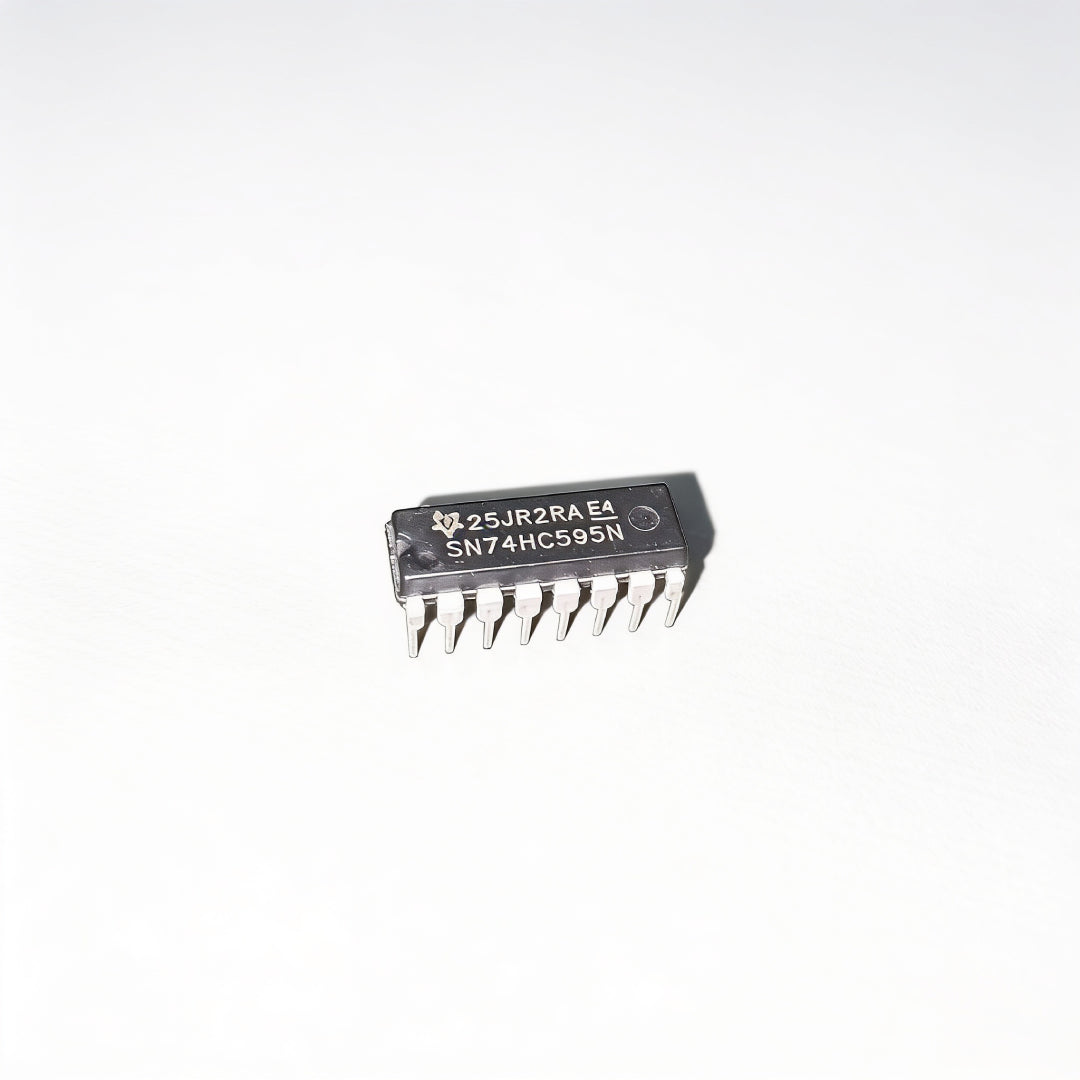

SN74HC595N IC 74595 8-Bit Shift Register | Serial-In Parallel-Out SIPO Logic IC with Output Latch DIP-16
SN74HC595N IC 74595 8-Bit Shift Register | Serial-In Parallel-Out SIPO Logic IC with Output Latch DIP-16
Regular price
Rs. 28.00
Regular price
Rs. 40.00
Sale price
Rs. 28.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 8-Bit Shift Register |
| Part Number | SN74HC595N |
| Common Number | IC 74595 / 74HC595 |
| Function | Serial-In, Parallel-Out |
| Number of Bits | 8 |
| Output Type | 8 Parallel Outputs |
| Data Input | Serial |
| Output Register | Yes |
| Cascading | Yes |
| Logic Family | 74HC CMOS |
| Package | DIP-16 |
| Operating Voltage | 2V – 6V DC |
| Typical Supply | 5V DC |
| Mounting Type | Through-Hole |
Product Description
The SN74HC595N / 74HC595 is an 8-bit serial-in, parallel-out shift register IC with a separate output register. It allows multiple digital outputs to be controlled using only a few microcontroller pins, making it ideal for Arduino, ESP32, LED displays, relay control, digital counters, and DIY electronics projects.
