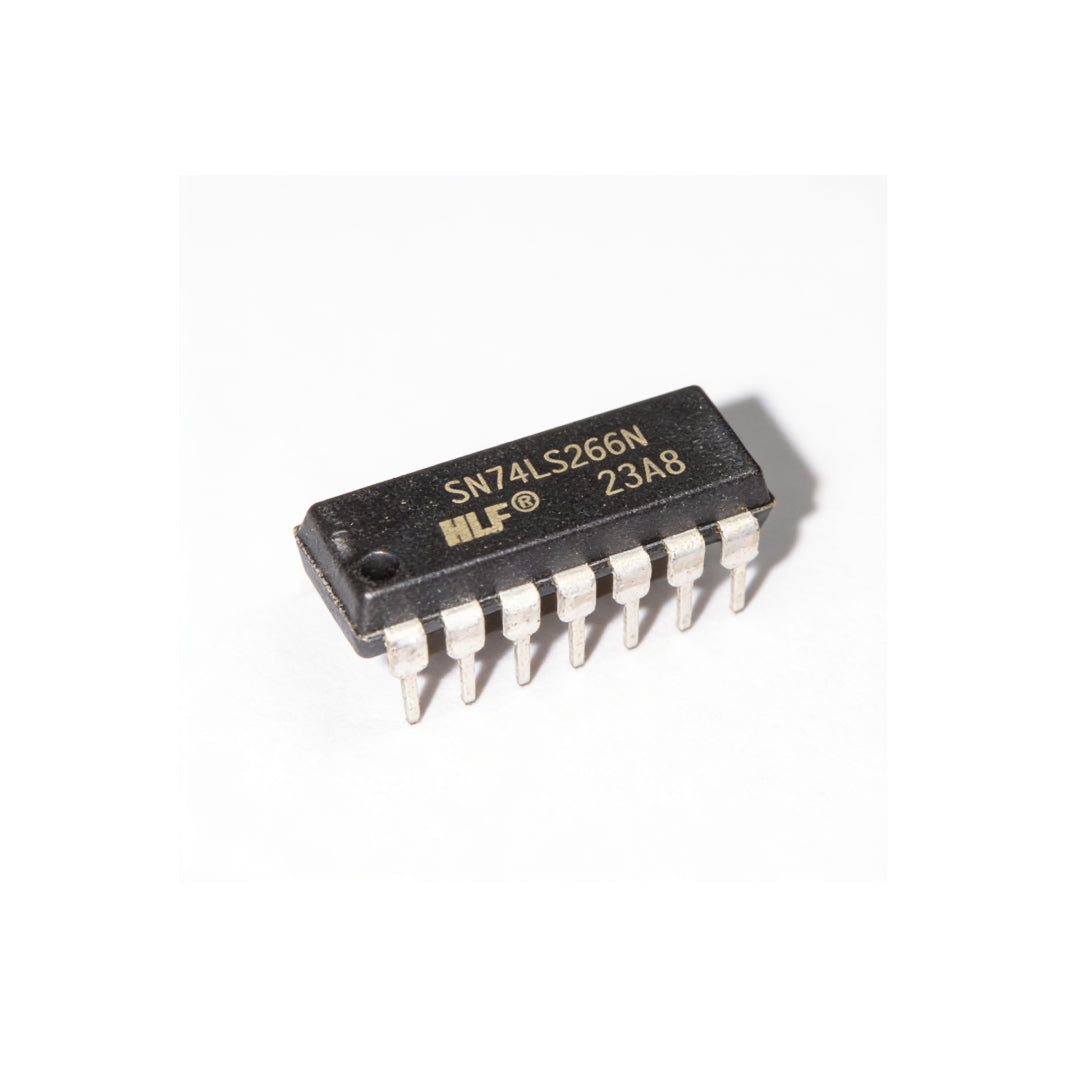

SN74LS266N IC 74266 Quad 2-Input XNOR Gate | 74LS266 Digital Logic IC with Open-Collector Outputs DIP-14
SN74LS266N IC 74266 Quad 2-Input XNOR Gate | 74LS266 Digital Logic IC with Open-Collector Outputs DIP-14
Regular price
Rs. 60.00
Regular price
Rs. 75.00
Sale price
Rs. 60.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Quad 2-Input XNOR Gate |
| Part Number | SN74LS266N |
| Common Number | IC 74266 / 74LS266 |
| Logic Function | XNOR / Exclusive-NOR |
| Number of Gates | 4 |
| Inputs per Gate | 2 |
| Output per Gate | 1 |
| Output Type | Open Collector |
| Logic Family | 74LS TTL |
| Package | DIP-14 |
| Typical Supply Voltage | 5V DC |
| Mounting Type | Through-Hole |
Product Description
The SN74LS266N / 74LS266 is a quad 2-input XNOR (Exclusive-NOR) logic gate IC containing four independent XNOR gates. It features open-collector outputs, making it useful for digital comparison, equality detection, logic circuits, switching applications, and electronics education.
