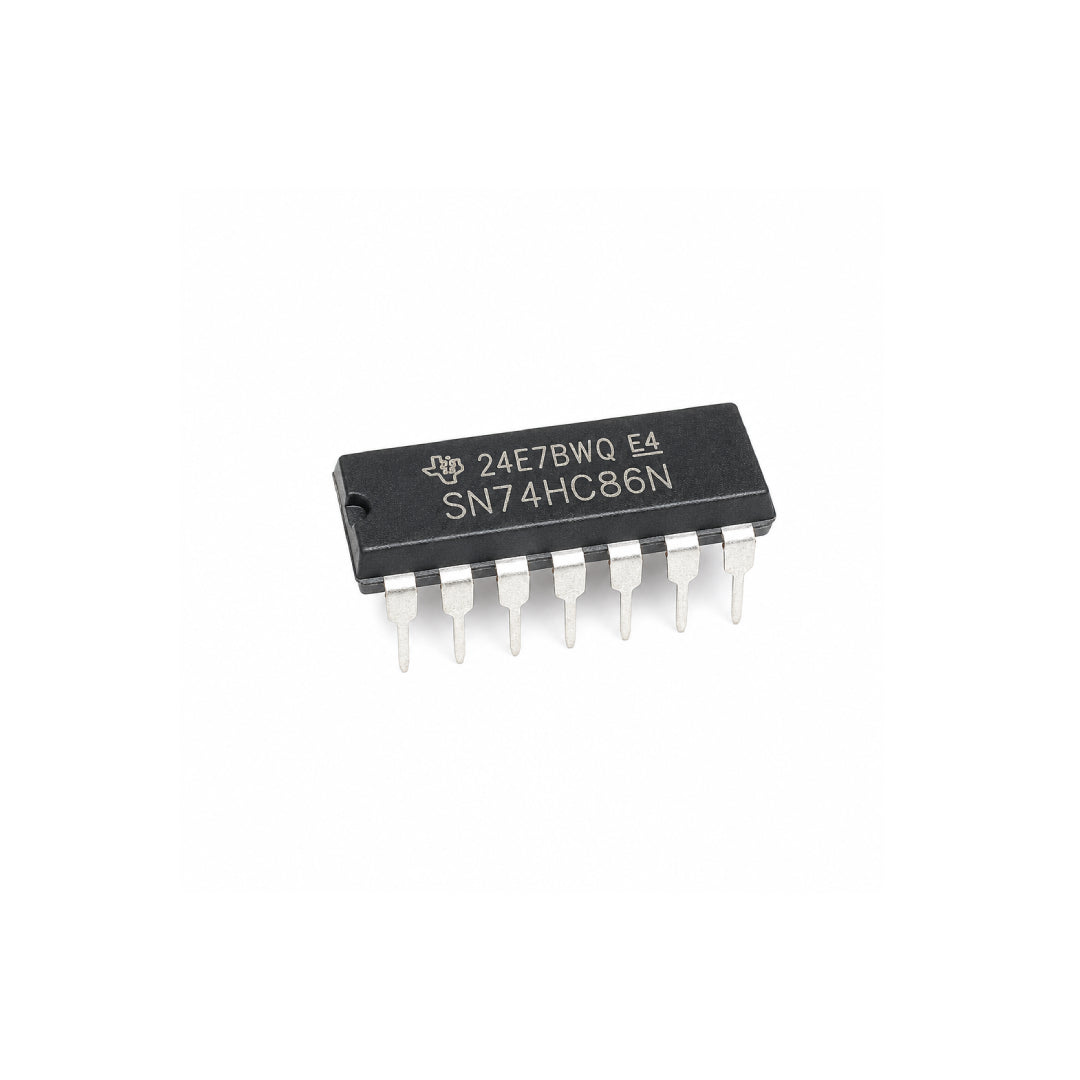

SN74HC86N IC 7486 Quad 2-Input XOR Gate | 74HC86 Digital Logic IC DIP-14 for Arduino, Electronics & DIY Projects
SN74HC86N IC 7486 Quad 2-Input XOR Gate | 74HC86 Digital Logic IC DIP-14 for Arduino, Electronics & DIY Projects
Regular price
Rs. 55.00
Regular price
Rs. 65.00
Sale price
Rs. 55.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Quad 2-Input XOR Gate IC |
| Part Number | SN74HC86N |
| Common Number | IC 7486 / 74HC86 |
| Logic Function | XOR / Exclusive-OR |
| Number of Gates | 4 Independent Gates |
| Inputs per Gate | 2 |
| Outputs per Gate | 1 |
| Logic Family | 74HC CMOS |
| Package | DIP-14 |
| Operating Voltage | 2V – 6V DC |
| Typical Supply | 5V DC |
| Mounting Type | Through-Hole |
Product Description
The SN74HC86N / 74HC86 is a quad 2-input XOR (Exclusive-OR) logic gate IC containing four independent XOR gates in a 14-pin DIP package. It is commonly used for binary addition, signal comparison, parity generation, digital switching, and educational electronics projects.
