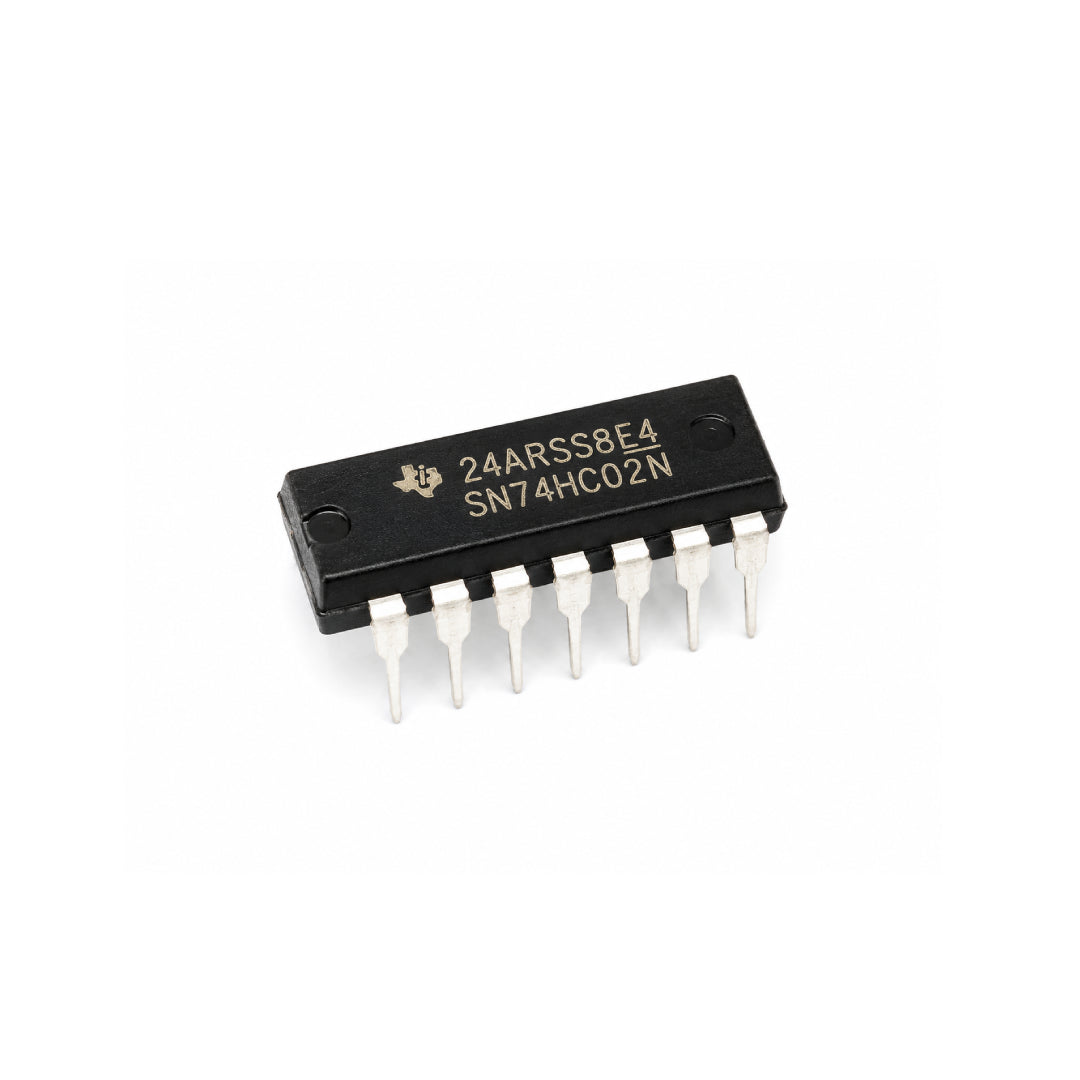

SN74HC02N IC 7402 Quad 2-Input NOR Gate | 74HC02 CMOS Digital Logic IC DIP-14 for Arduino & DIY Electronics
SN74HC02N IC 7402 Quad 2-Input NOR Gate | 74HC02 CMOS Digital Logic IC DIP-14 for Arduino & DIY Electronics
Regular price
Rs. 25.00
Regular price
Rs. 35.00
Sale price
Rs. 25.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Quad 2-Input NOR Gate IC |
| Part Number | SN74HC02N |
| Common Number | IC 7402 / 74HC02 |
| Logic Function | NOR |
| Number of Gates | 4 Independent Gates |
| Inputs per Gate | 2 |
| Outputs per Gate | 1 |
| Logic Family | 74HC CMOS |
| Operating Voltage | 2V – 6V DC |
| Typical Supply | 5V DC |
| Package | DIP-14 |
| Mounting Type | Through-Hole |
Product Description
The SN74HC02N / 74HC02 is a quad 2-input NOR gate logic IC containing four independent NOR gates in a 14-pin DIP package. It is widely used in digital logic circuits, control systems, signal processing, robotics, automation, educational experiments, and DIY electronics projects.
