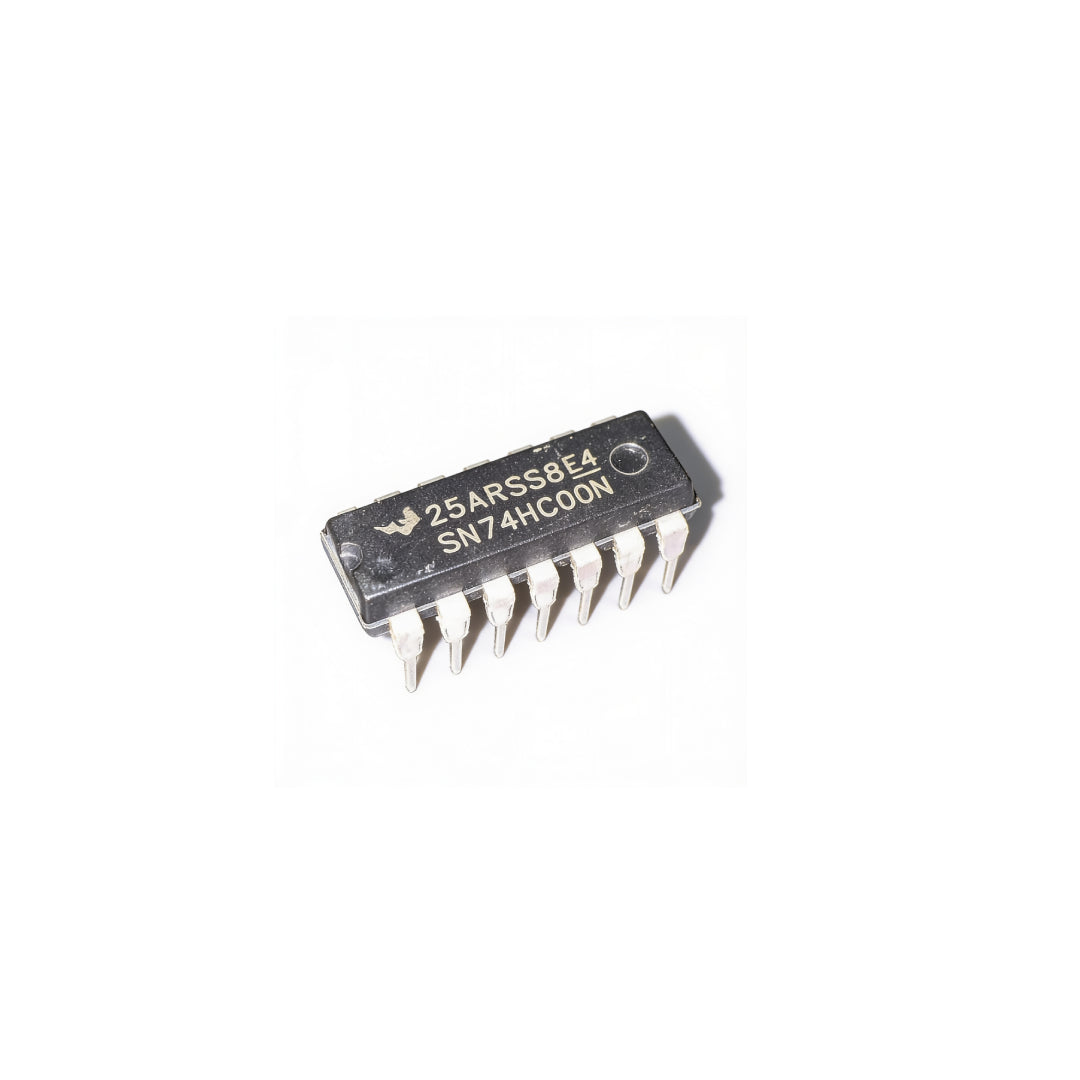

SN74HC00N IC 7400 Quad 2-Input NAND Gate | 74HC00 Digital Logic IC DIP-14 for Arduino, Electronics & DIY Projects
SN74HC00N IC 7400 Quad 2-Input NAND Gate | 74HC00 Digital Logic IC DIP-14 for Arduino, Electronics & DIY Projects
Regular price
Rs. 30.00
Regular price
Rs. 40.00
Sale price
Rs. 30.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Quad 2-Input NAND Gate IC |
| Part Number | SN74HC00N |
| Logic Function | NAND |
| Number of Gates | 4 Independent Gates |
| Inputs per Gate | 2 |
| Package | DIP-14 |
| Logic Family | 74HC CMOS |
| Operating Voltage | 2V – 6V DC |
| Typical Supply | 5V DC |
| Mounting Type | Through-Hole |
| Application | Digital Logic & Switching Circuits |
Product Description
The SN74HC00N / 74HC00 is a quad 2-input NAND gate logic IC containing four independent NAND gates in a single 14-pin package. It is widely used for digital logic circuits, signal processing, switching, control systems, educational electronics, and DIY projects.
