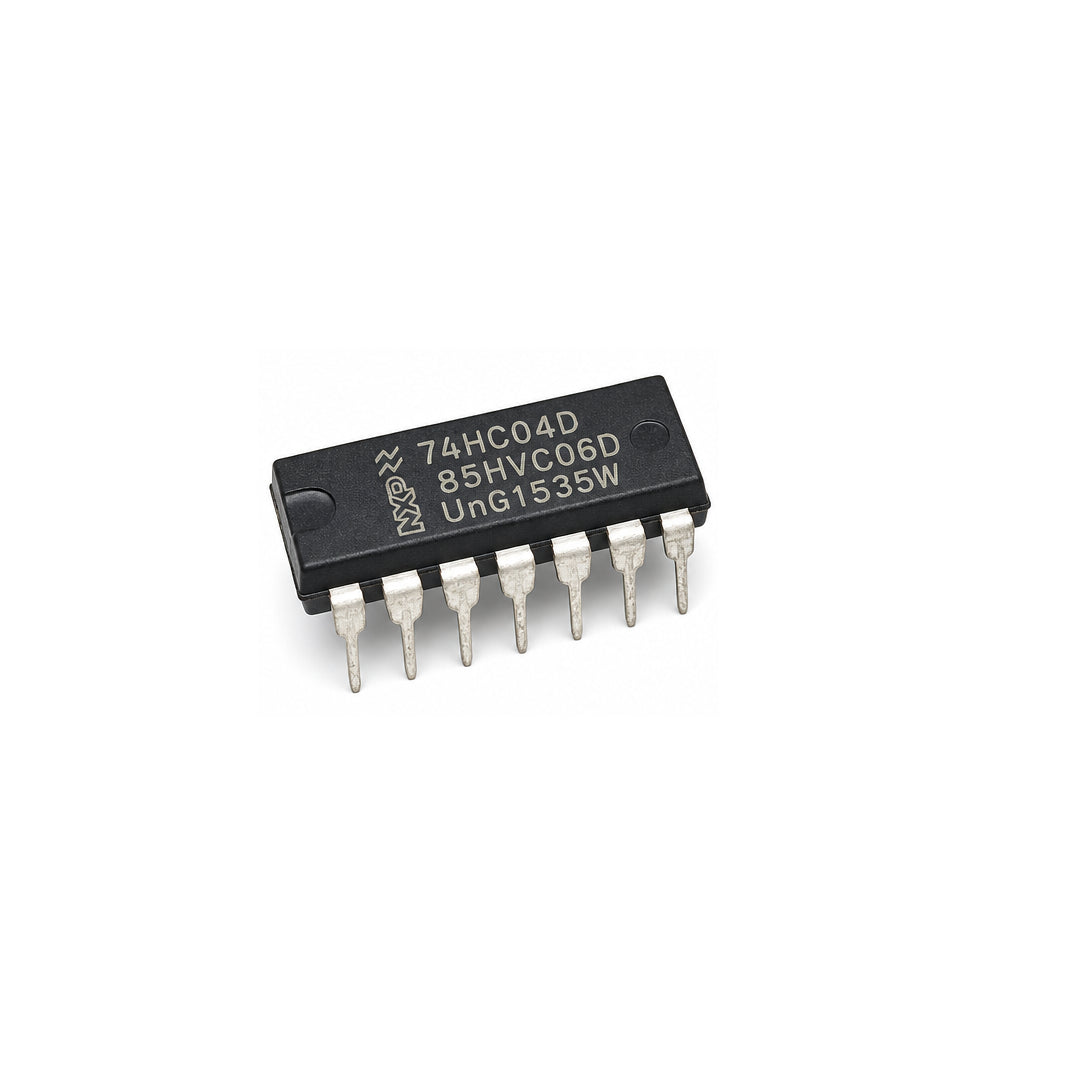

74HC04D IC 7404 | Hex Inverter / NOT Gate CMOS Logic IC with 6 Independent Inverters | DIP-14 / SOIC-14
74HC04D IC 7404 | Hex Inverter / NOT Gate CMOS Logic IC with 6 Independent Inverters | DIP-14 / SOIC-14
Regular price
Rs. 30.00
Regular price
Rs. 40.00
Sale price
Rs. 30.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Hex Inverter / NOT Gate |
| Part Number | 74HC04D |
| Common Equivalent | 7404 / 74HC04 |
| Logic Function | NOT / Inverter |
| Number of Gates | 6 |
| Inputs per Gate | 1 |
| Outputs per Gate | 1 |
| Logic Family | 74HC CMOS |
| Supply Voltage | 2V – 6V DC |
| Typical Supply | 5V DC |
| Package | SOIC-14 / SMD |
| Mounting Type | Surface Mount |
Product Description
The 74HC04D is a Hex Inverter / NOT Gate CMOS logic IC containing six independent inverters in a single package. Each inverter reverses the logic state of its input, making it useful for digital signal inversion, logic circuits, switching, waveform generation, and DIY electronics projects.
