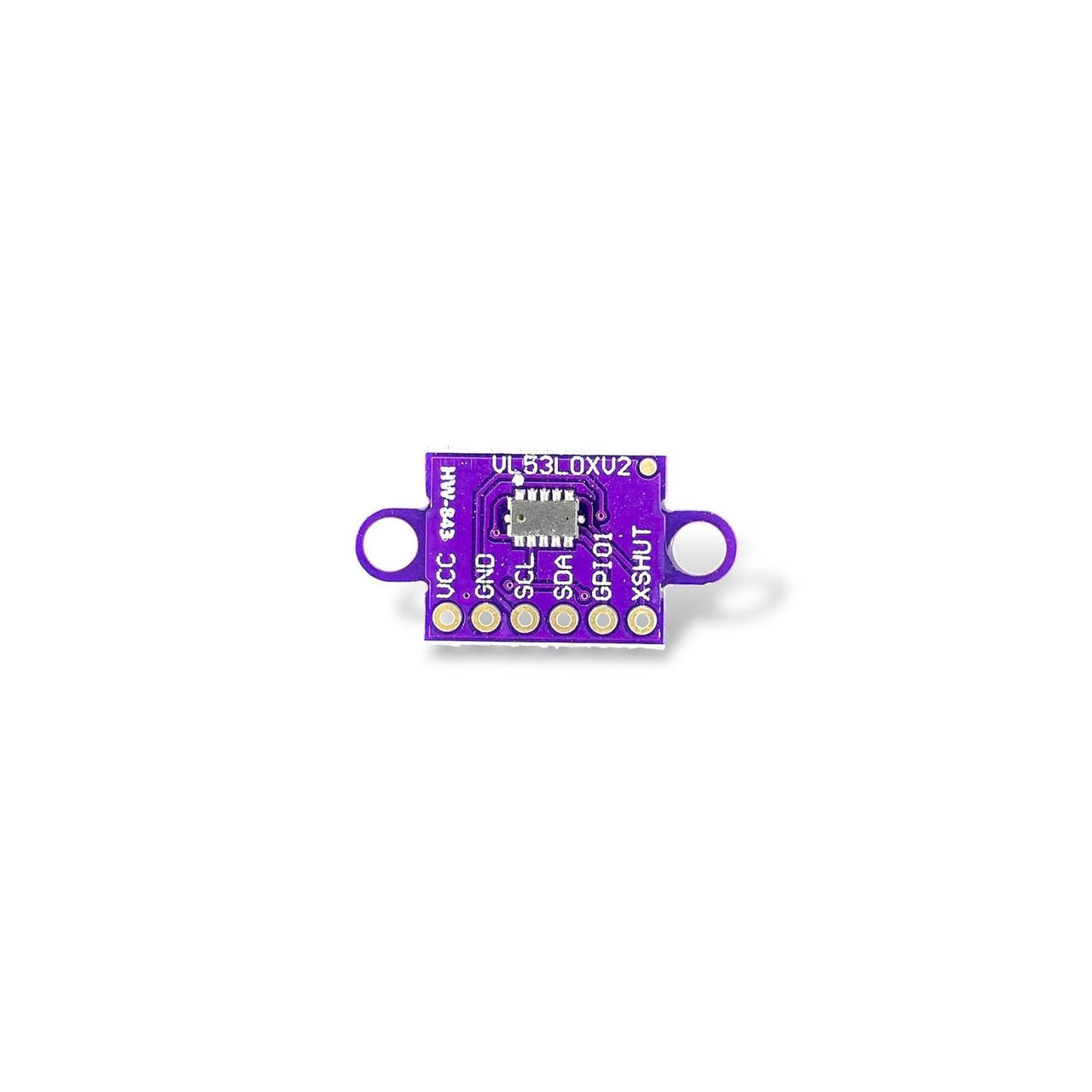

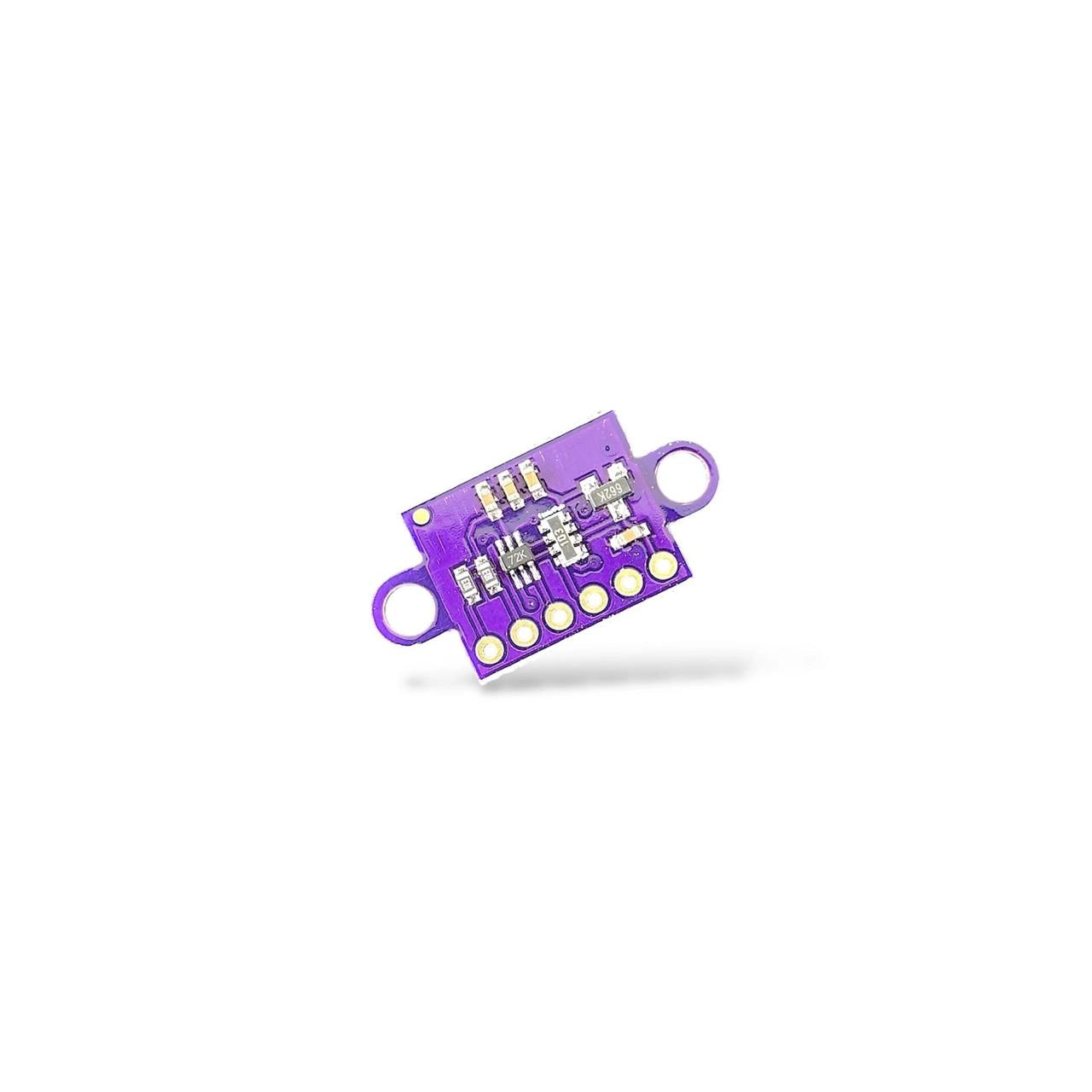

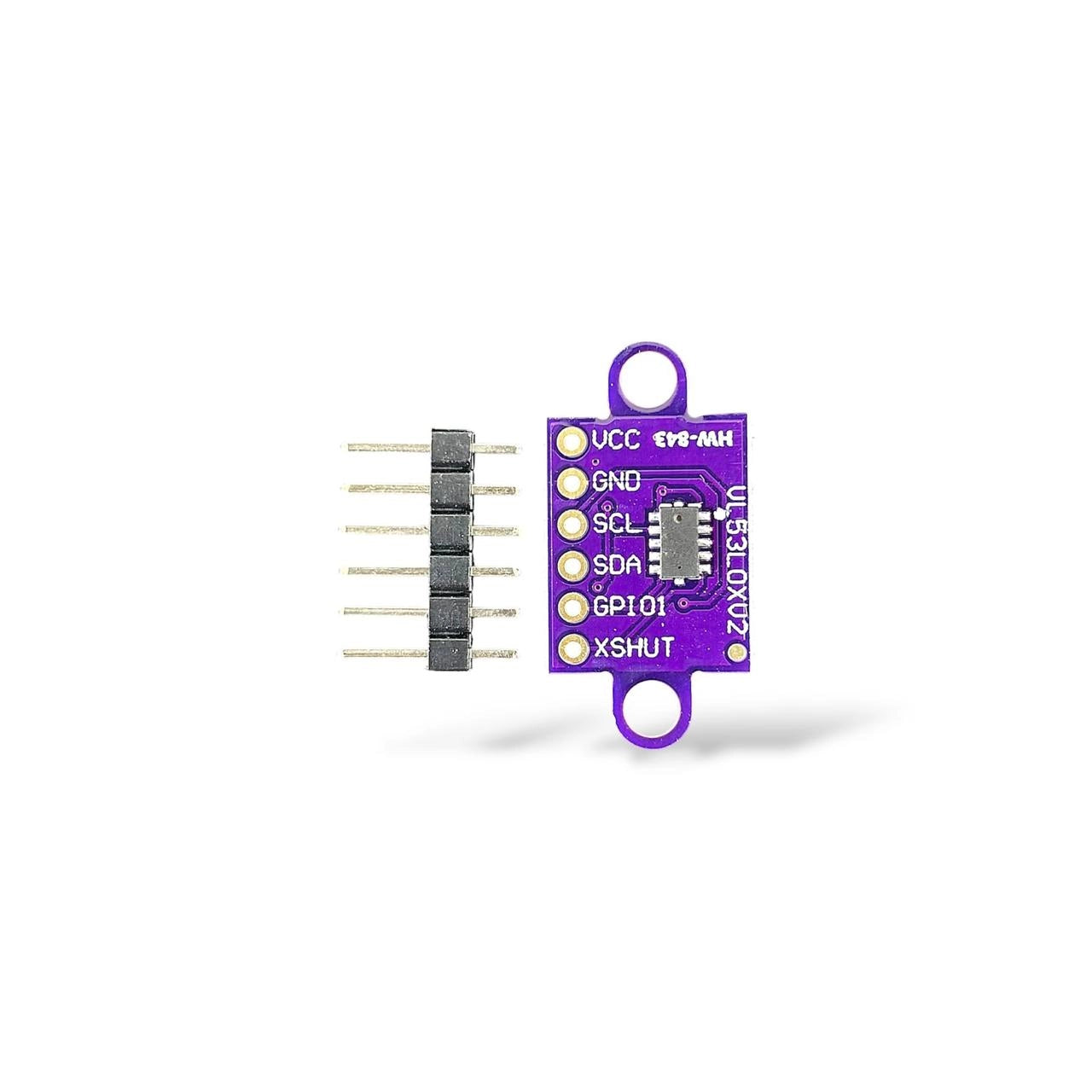

GY-53 VL53L0X Laser ToF Distance Ranging Sensor Module | High Precision Time-of-Flight Distance Sensor for Arduino, ESP32 & Raspberry Pi

Technical Specifications

• Sensor IC: VL53L0X
• Module Type: GY-53 Laser Distance Sensor
• Technology: Time-of-Flight (ToF) Laser Ranging
• Measurement Range: 30mm – 2000mm (Typical)
• Distance Resolution: Up to 1mm
• Operating Voltage: 2.6V – 5.5V DC
• Communication Mode: Serial output, PWM output, the chip itself IIC output.
• Laser Type: Infrared VCSEL Laser
• Field of View: Approx. 25°
• Power Consumption: Low Power Operation
• Compatible Boards: Arduino, ESP32, Raspberry Pi, STM32, NodeMCU

Description

The GY-53 VL53L0X Laser ToF Distance Ranging Sensor is a compact, high-precision distance measurement module that uses Time-of-Flight (ToF) technology to accurately measure distances up to 2 meters. Ideal for robotics, obstacle avoidance, drones, IoT, and smart automation projects.
