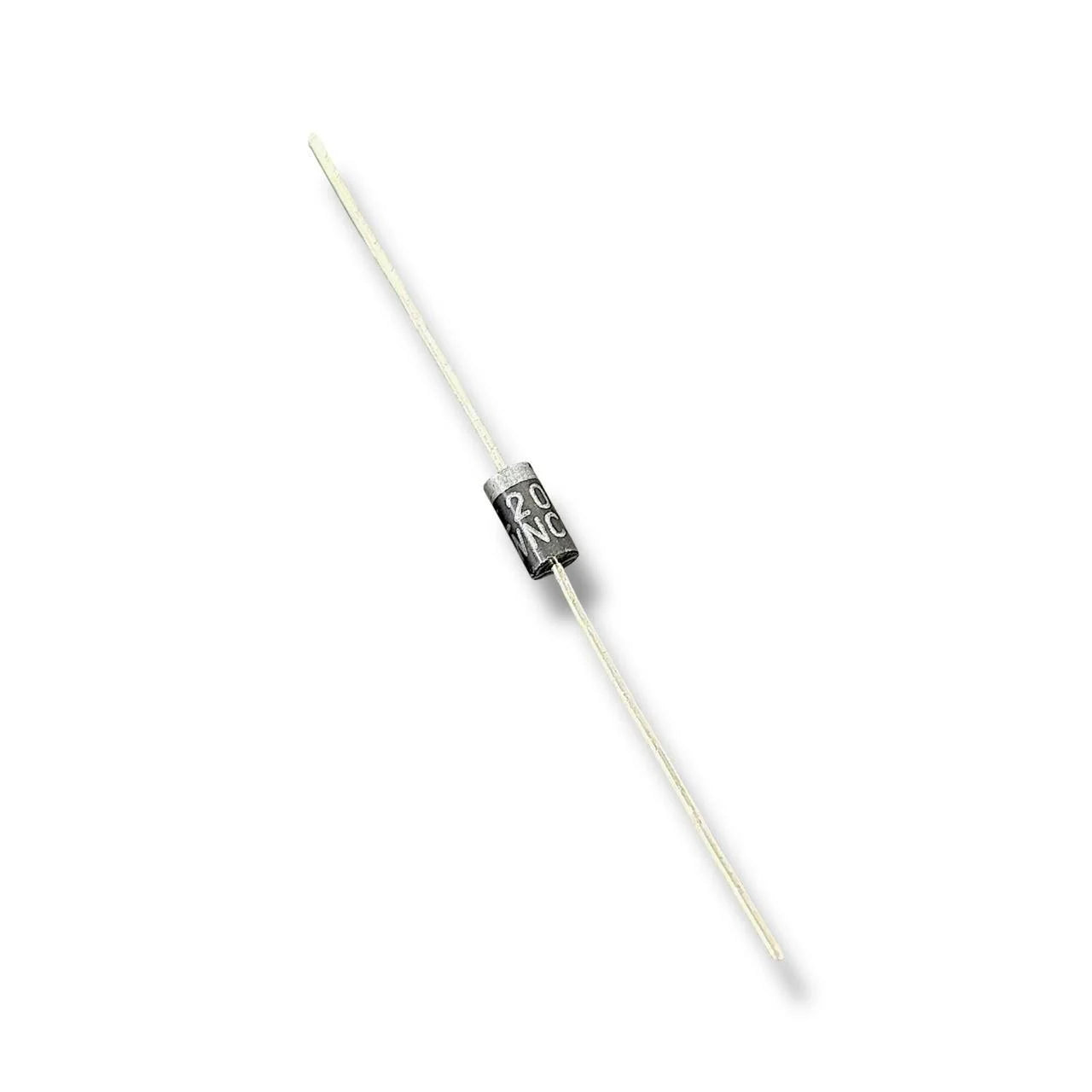

FR207 Fast Recovery Diode 2A 1000V High-Speed Rectifier Diode for Power Supply, SMPS & Protection Circuits

Technical Specification

• Model: FR207
• Type: Fast Recovery Rectifier Diode
• Polarity: Yes
• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000V
• Forward Current (IF): 2A
• Peak Forward Surge Current (IFSM): 50A (8.3ms single half-sine wave)
• Reverse Recovery Time (trr): 500ns (typical)
• Forward Voltage Drop (VF): 1.0V – 1.3V at rated current
• Operating Temperature: –55°C to +150°C
• Package Type: DO-15 axial lead
• Mounting: Through-hole
• Applications:
  • High-speed switching power supplies
  • DC to DC converters
  • Freewheeling diode for motors
  • Reverse polarity protection
  • UPS, inverters, battery chargers
  • SMPS rectification & filtering
  • General-purpose electronics DIY projects

Technical Descriptions

The FR207 Fast Recovery Diode is a high-performance rectifier diode designed for applications requiring fast switching, high voltage handling, and efficient rectification. With a 2A current rating and 1000V reverse voltage capacity, this diode is ideal for switching power supplies, motor drivers, battery chargers, inverters, and DC protection circuits.

Featuring a fast reverse recovery time of just 500ns, the FR207 offers excellent performance in high-frequency applications such as SMPS and DC-DC converters. Its DO-15 axial package ensures easy installation on PCB boards and DIY projects.

Whether you're building power circuits, working on robotics, or repairing appliances, the FR207 diode provides reliable performance, low losses, and long operational life—making it an essential electronic component for hobbyists and professionals.
