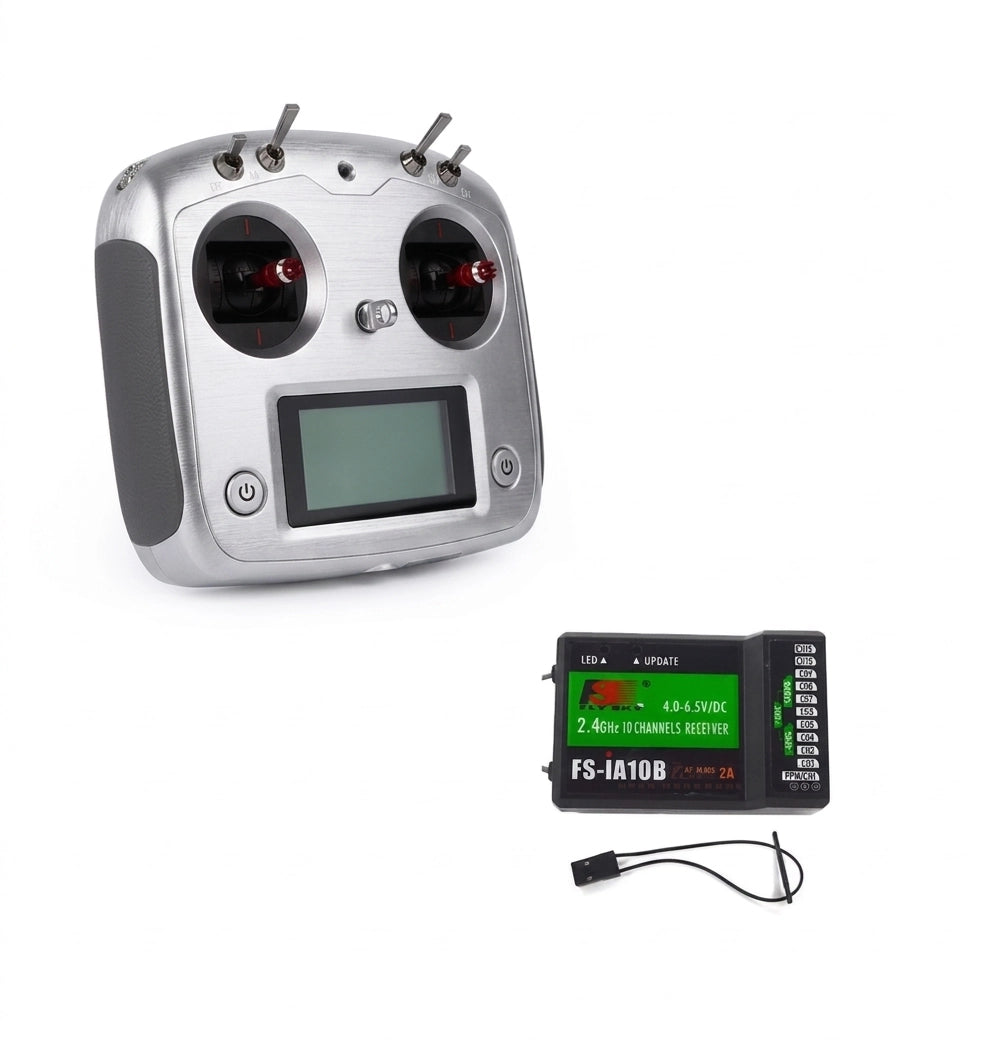

Flysky FS-i6S 2.4GHz 10 Channel AFHDS 2A RC Transmitter with FS-iA10B Receiver | Radio Controller for Drones, RC Planes & Robotics

Flysky FS-i6S 2.4GHz 10 Channel AFHDS 2A RC Transmitter with FS-iA10B Receiver | Radio Controller for Drones, RC Planes & Robotics

Rs. 7,200.00
Rs. 7,800.00 Rs. 7,200.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Technical Specifications

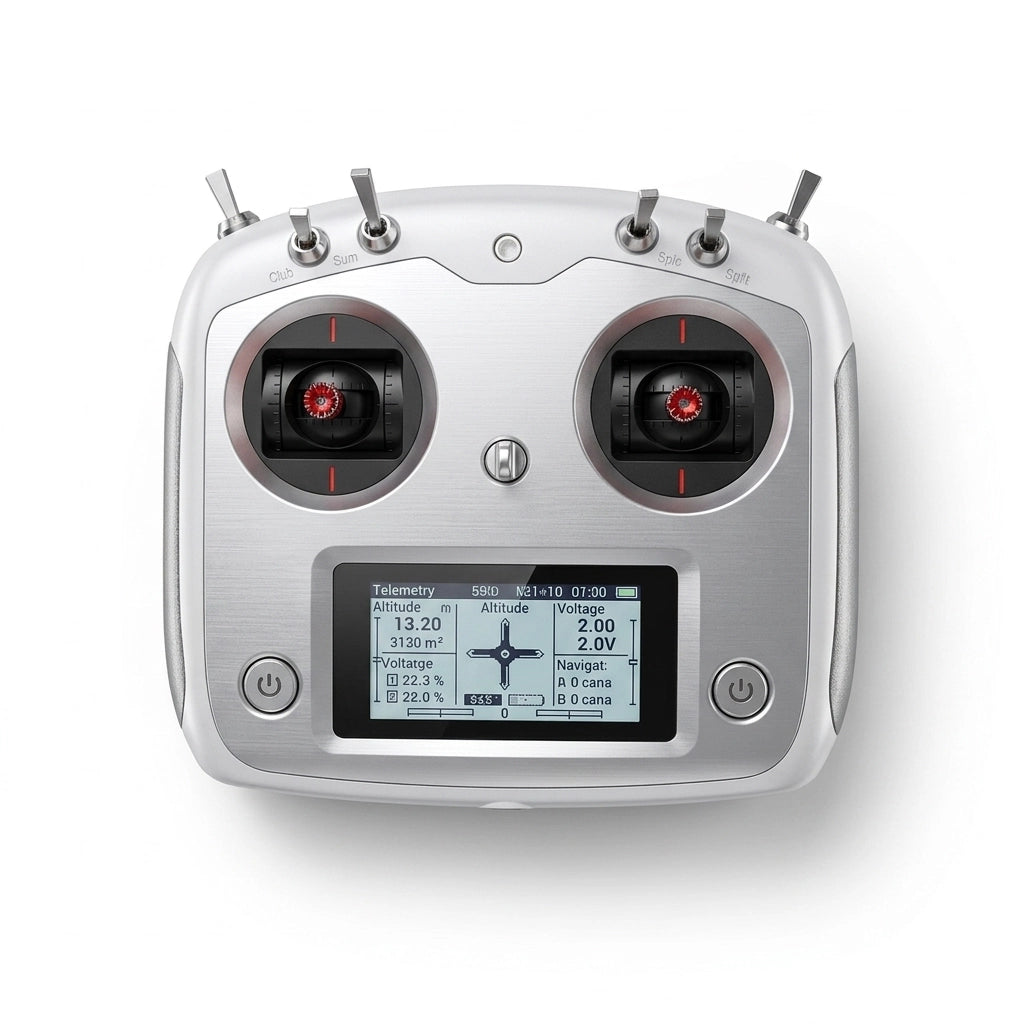

FS-i6S Transmitter

  • Channels: 10
  • Frequency Range: 2.4055 – 2.475 GHz
  • Bandwidth: 500 kHz
  • Number of Bands: 135
  • Transmitting Power: < 20 dBm
  • 2.4 GHz Protocol: AFHDS 2A
  • Modulation System: GFSK

FS-iA10B Receiver

  • Channels: 10
  • Frequency Range: 2.4055 – 2.475 GHz
  • Number of Bands: 140
  • Receiver Sensitivity: -105 dBm
  • 2.4 GHz Protocol: AFHDS 2A
  • Modulation System: GFSK

2.4GHz 6-Channel Transmitter and Receiver Specifications

Parameter Specification
Item Type Transmitter & Receiver
Number of Channels 6
Operating Frequency 2.4 GHz
Frequency Range 2.40 – 2.48 GHz
Modulation Type GFSK
Receiver Sensitivity -105 dBm
Bandwidth 500 kHz
Operating Voltage Transmitter: 12V DC, Receiver: 5V DC
Antenna Length 26 mm
Code Type Digital
DSC Port PS/2 Port (PPM)
Charging Port Yes
Low Voltage Warning Yes (below 9V)
RF Output Power < 20 dBm
Default Mode Mode 2 (Left-Hand Throttle)
Dimensions (L × W × H) 179 × 161 × 81 mm
Weight Transmitter: 410 g, Receiver: 15 g
UPC 713902799292
Color Silver
Shipping Weight 0.62 kg
Shipping Dimensions 22 × 18 × 9 cm

Features

  • 6-channel 2.4 GHz radio control system for aircraft, helicopters, drones, boats, and RC vehicles.
  • Advanced GFSK modulation provides reliable and interference-resistant signal transmission.
  • High receiver sensitivity (-105 dBm) ensures stable long-range communication.
  • Built-in charging port and low-voltage warning for added convenience and safety.
  • Default Mode 2 configuration with left-hand throttle control.
  • Compact, lightweight, and ergonomically designed transmitter for comfortable operation.

Description

The Flysky FS-i6S is a 2.4GHz 10-channel RC transmitter featuring AFHDS 2A technology, a responsive touchscreen interface, and reliable long-range communication. Paired with the FS-iA10B 10-channel receiver, it is ideal for drones, RC airplanes, helicopters, boats, cars, and advanced robotics projects.
