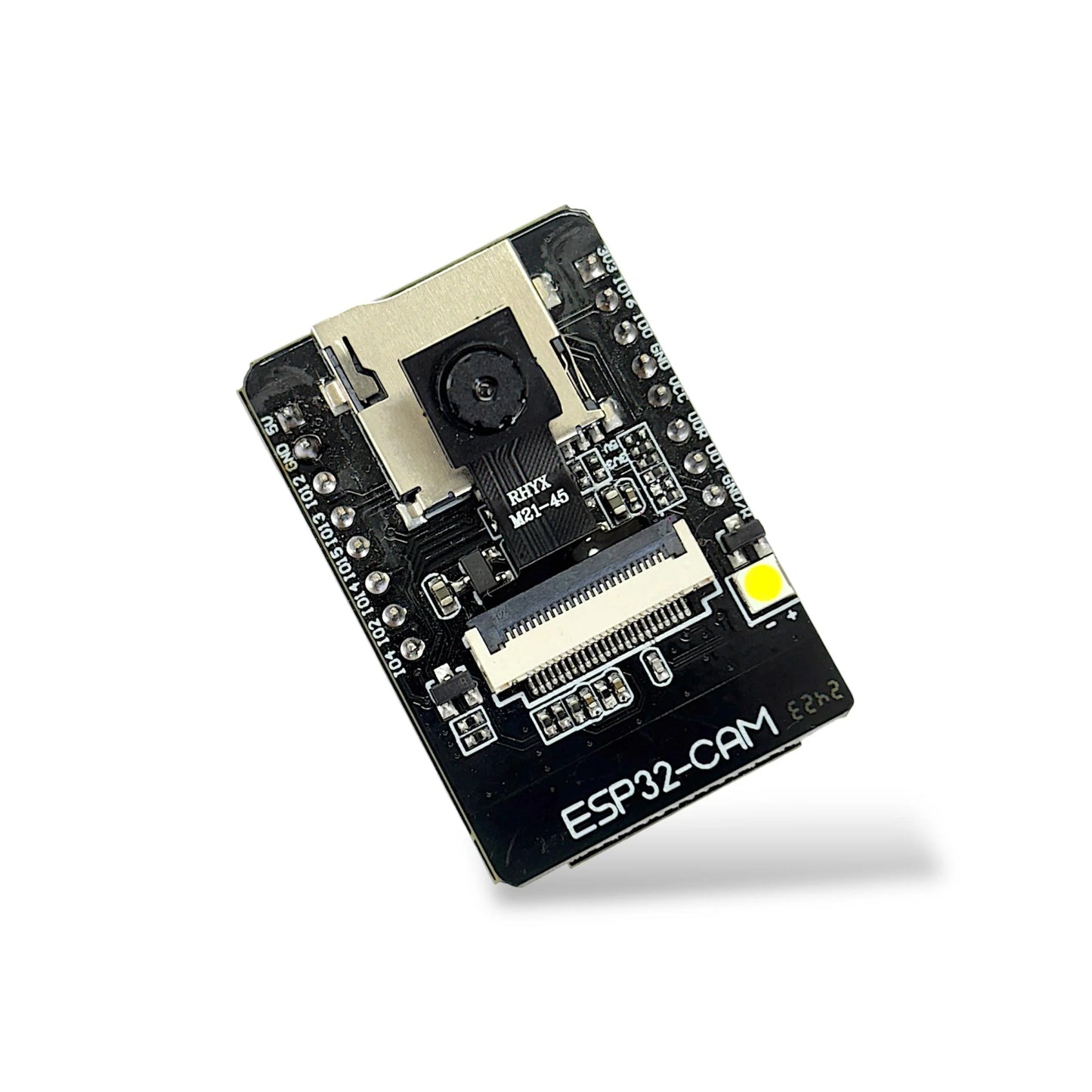

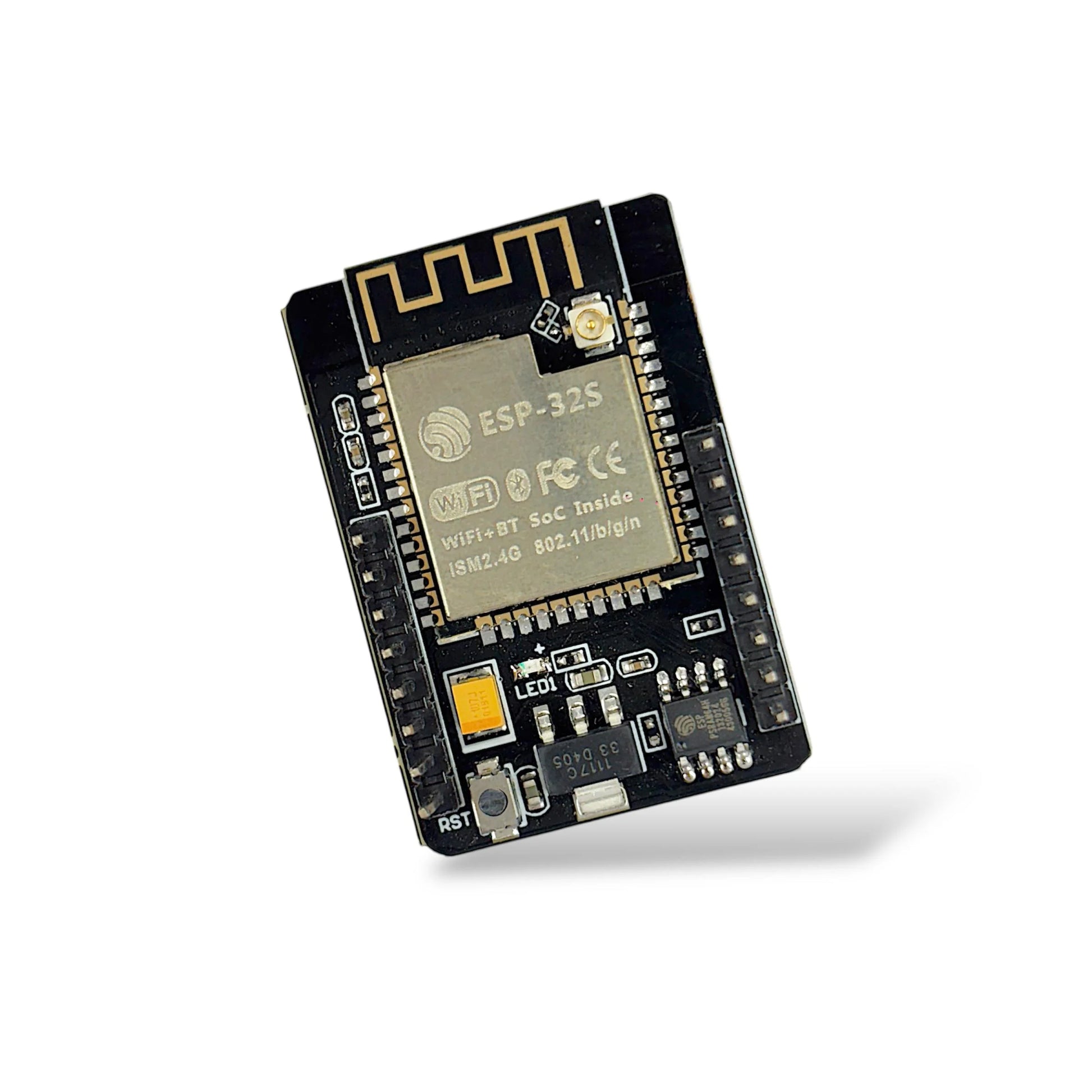

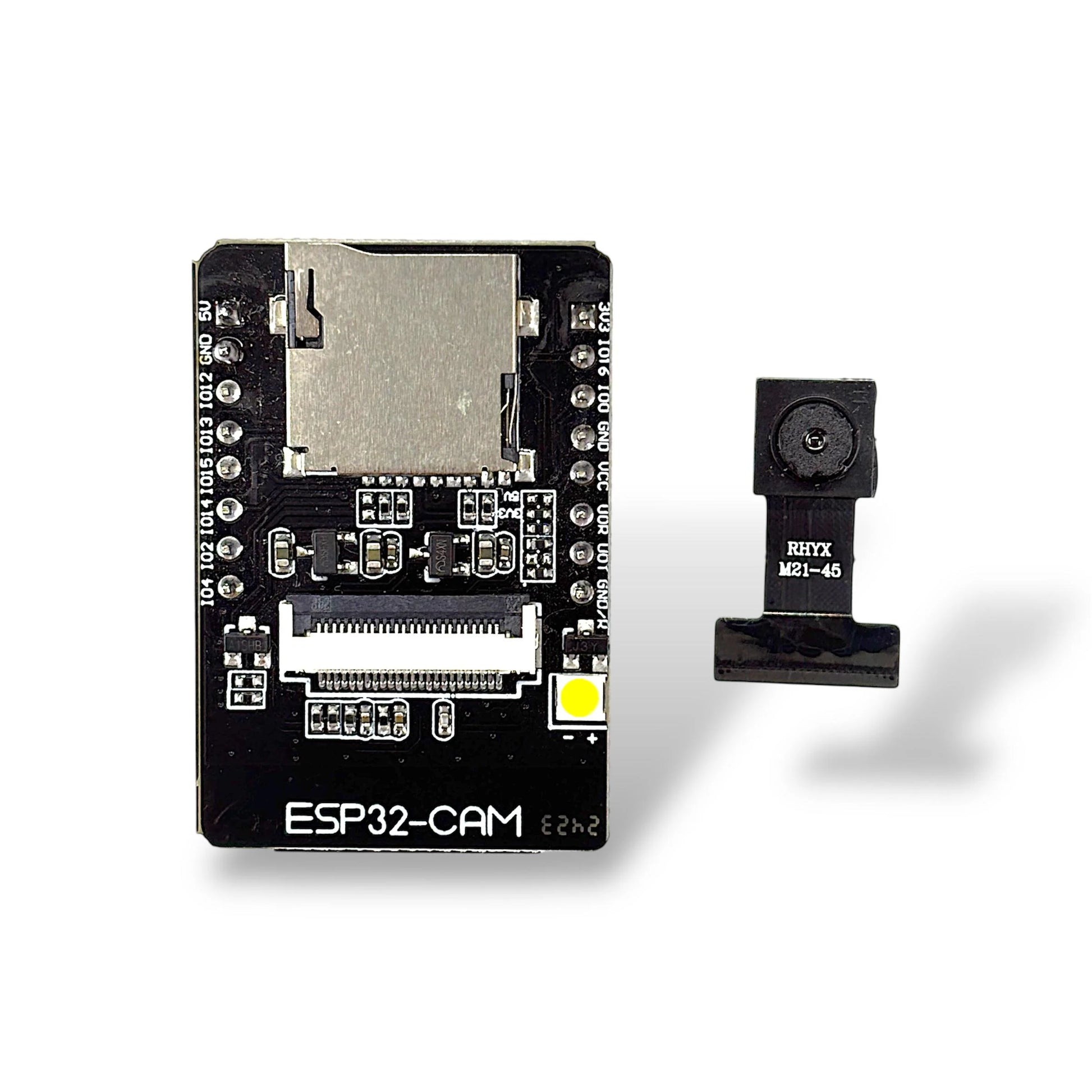

ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization
ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization
Couldn't load pickup availability
Share
Specification
- Connectivity: Wi-Fi
- Camera: 2MP
- Designed For: IoT Applications
- More: See Description
Watch video click on the link below
Description
- The smallest 802.11b/g/n Wi-Fi BT SoC module.
- Low power 32-bit CPU, can also serve the application processor.
- Up to 160MHz clock speed, summary computing power up to 600 DMIPS.
- Built-in 520 KB SRAM, external 4MPSRAM.
- Supports UART/SPI/I2C/PWM/ADC/DAC.
- Support OV2640 and OV7670 cameras, built-in flash lamp.
- Support image WiFI upload.
- Supports TF card.
- Supports multiple sleep modes.
- Embedded Lwip and FreeRTOS.
- Supports STA/AP/STA+AP operation mode.
- Support Smart Config/AirKiss technology.
- Support for serial port local and remote firmware upgrades (FOTA).
Short desc:
The ESP32-CAM is a compact development board based on the ESP32 microcontroller and equipped with a camera module. It is designed for building Internet of Things (IoT) applications that require image capturing and streaming capabilities. The board supports Wi-Fi and Bluetooth connectivity, has GPIO pins for connecting external components, includes a microSD card slot for local storage, and can be programmed using the Arduino IDE or ESP-IDF. It is a versatile and affordable solution for creating projects involving camera functionalities in the IoT domain.
Long desc:
The ESP32-CAM is a popular development board featuring the ESP32 microcontroller and a camera module, designed for building Internet of Things (IoT) applications that involve image capturing and streaming. Here’s a description of the ESP32-CAM:
1. ESP32 Microcontroller: The ESP32 is a powerful and versatile microcontroller manufactured by Espressif Systems. It combines a dual-core processor, Wi-Fi and Bluetooth connectivity, ample amounts of memory, and various peripherals, making it suitable for a wide range of IoT applications.
2. Camera Module: The ESP32-CAM board comes with a camera module attached to it. The camera module typically consists of an OV2640 or OV7670 image sensor, capable of capturing still images and streaming video.
3. Wi-Fi and Bluetooth Connectivity: The ESP32-CAM supports both Wi-Fi and Bluetooth connectivity. It can connect to a local Wi-Fi network, enabling it to communicate with other devices or send captured images and video over the internet. Bluetooth support allows for wireless communication with nearby devices.
4. GPIO Pins: The board provides a series of GPIO (General Purpose Input/Output) pins, allowing you to connect and control external components such as sensors, actuators, or displays. These pins can be configured for digital input/output, analog input, or specialized functions such as UART, I2C, or SPI.
5. MicroSD Card Slot: The ESP32-CAM board includes a microSD card slot, which allows you to store captured images or video locally on a microSD card.
6. USB Interface: The board features a micro USB port for power supply and programming. It can be connected to a computer for uploading firmware or interacting with the microcontroller.
7. Development Environment: The ESP32-CAM can be programmed using the Arduino IDE (Integrated Development Environment) or using the Espressif’s native ESP-IDF (Espressif IoT Development Framework). These environments provide libraries and tools to facilitate the development of IoT applications.
8. Support for AI Frameworks: The ESP32-CAM is capable of running lightweight machine learning models using frameworks such as TensorFlow Lite or MicroPython. This allows for on-device image recognition or other AI-related tasks.
Overall, the ESP32-CAM is a versatile and affordable development board that combines the power of the ESP32 microcontroller with a camera module, enabling the creation of IoT projects involving image capturing, streaming, and other related functionalities.
