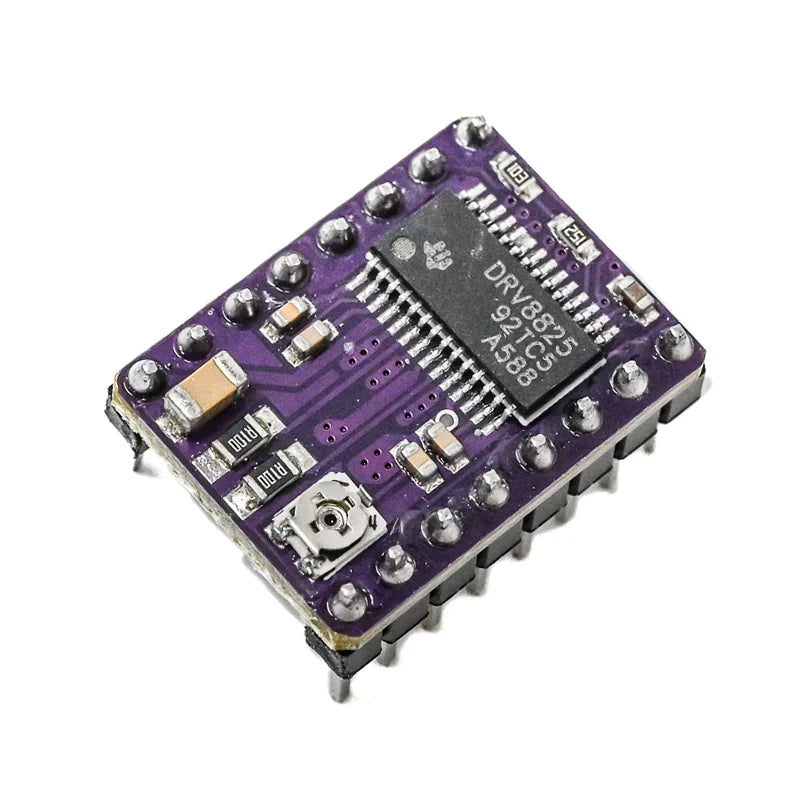

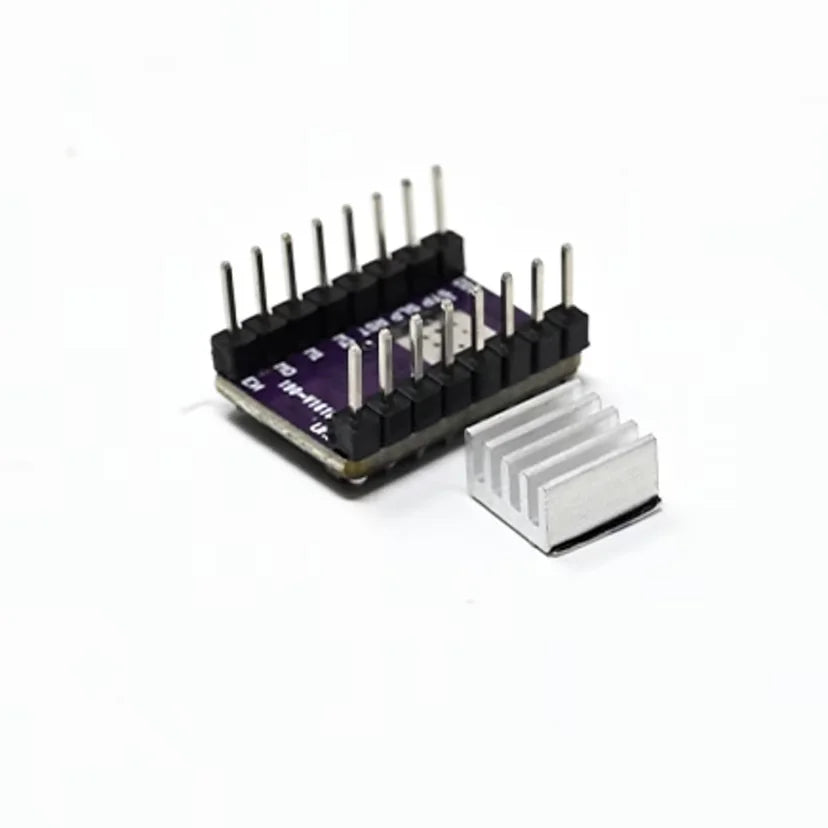

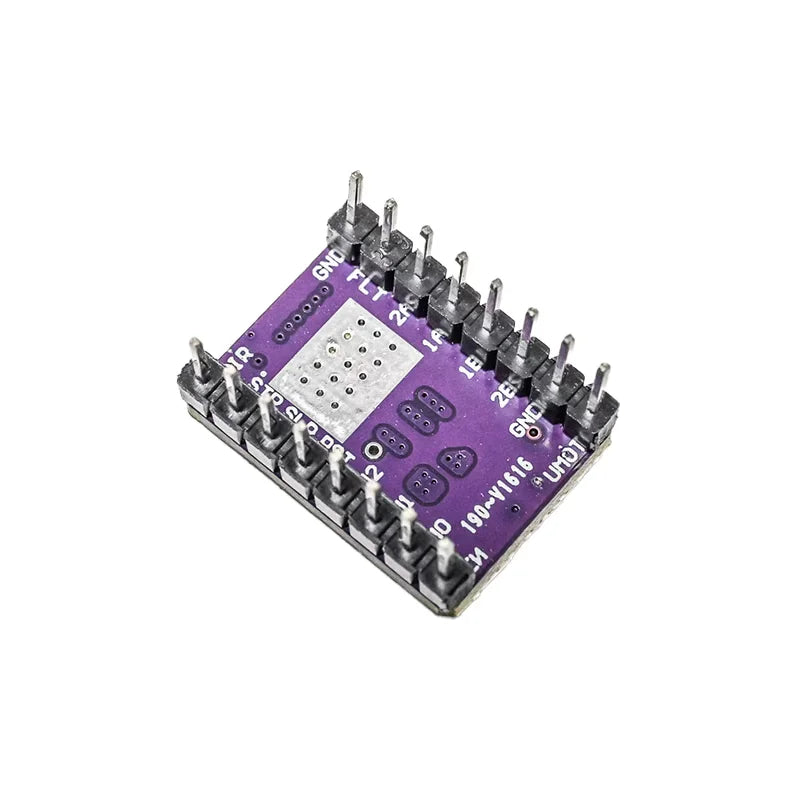

DRV8825 Stepper Motor Driver Module with Aluminum Heat Sink | 2.2A Microstepping Driver for Arduino, CNC, 3D Printers & Robotics

Technical Specifications

• Driver IC: DRV8825
• Motor Type: Bipolar Stepper Motor
• Supply Voltage: 8.2V – 42V DC
• Maximum Current Capacity: 2.2A Peak (with proper cooling)
• Continuous Current Per Phase: 1.5A
• Minimum Logic Voltage: 2.5V
• Maximum Logic Voltage: 5V
• Microstepping Modes: Full, 1/2, 1/4, 1/8, 1/16, 1/32 Step
• Current Limiting: Adjustable
• Protection Features: Overcurrent & Thermal Protection
• Module Dimensions: 15 × 20 mm
• Weight: Approx. 4g
• Heat Sink Included: Yes (Aluminum)

Description

The DRV8825 Stepper Motor Driver Module is a high-performance motor control solution capable of driving bipolar stepper motors with up to 2.2A peak current. Featuring adjustable current limiting, multiple microstepping modes up to 1/32 step, and an included aluminum heat sink, it is ideal for CNC machines, 3D printers, robotics, and automation projects.
