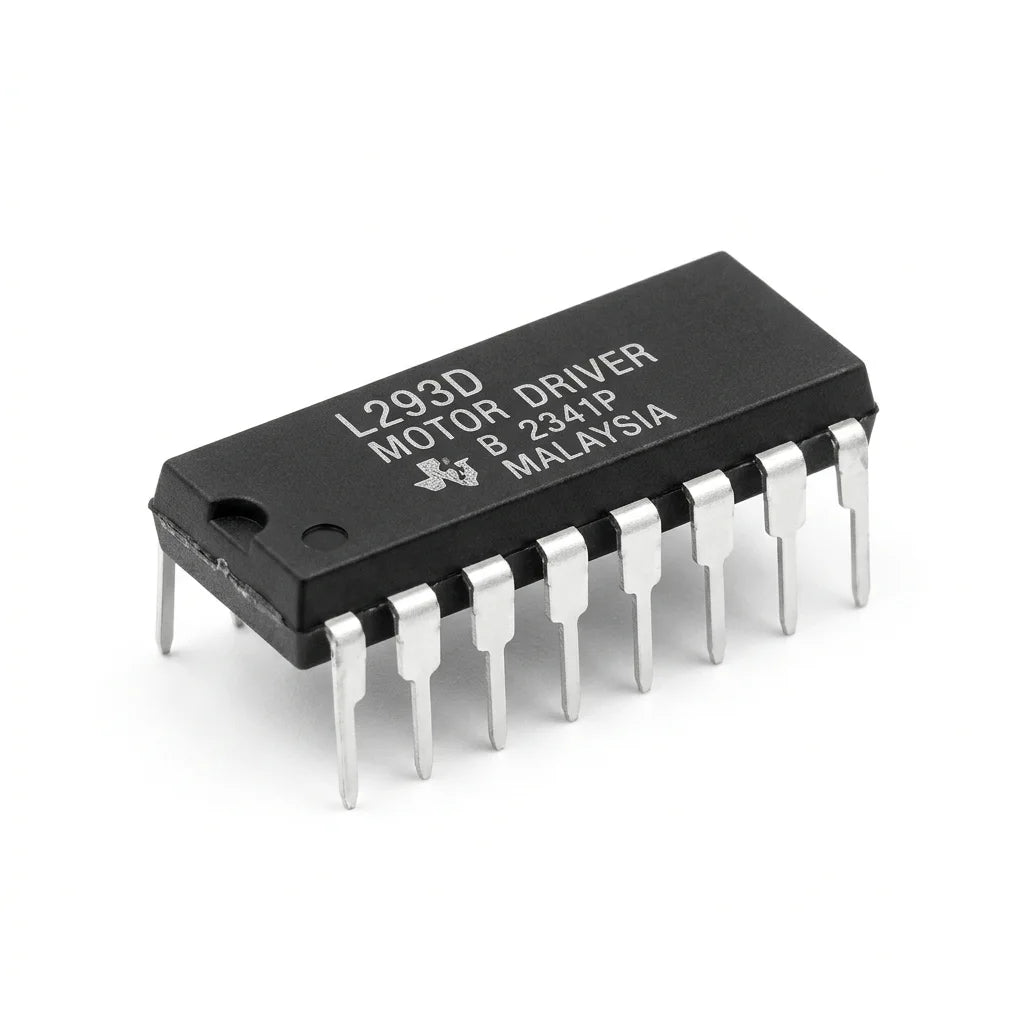

Driver IC DIP16 L293D Motor | Dual H-Bridge Motor Driver for DC & Stepper Motors | Arduino Robotics Component
Driver IC DIP16 L293D Motor | Dual H-Bridge Motor Driver for DC & Stepper Motors | Arduino Robotics Component
Regular price
Rs. 30.00
Regular price
Rs. 50.00
Sale price
Rs. 30.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No reviews
Share
Technical Specifications
- IC Model: L293D
- Package Type: DIP16 (Dual Inline Package)
- Motor Driver Type: Dual H-Bridge
- Motor Support: 2 DC Motors or 1 Stepper Motor
- Logic Supply Voltage (Vcc1): 4.5V – 7V
- Motor Supply Voltage (Vcc2): Up to 36V
- Maximum Output Current: 600mA per channel
- Peak Output Current: 1.2A per channel
- Control Inputs: TTL Compatible
- Built-in Protection: Internal Flyback Diodes
- Operating Temperature: 0°C to 70°C
- Applications: Robotics, Motor Control, Automation Systems
Description
The L293D Motor Driver IC (DIP16 Package) is a dual H-bridge motor driver designed to control DC motors and stepper motors in robotics and embedded projects. It allows microcontrollers like Arduino to drive motors with bidirectional control and built-in protection diodes.
