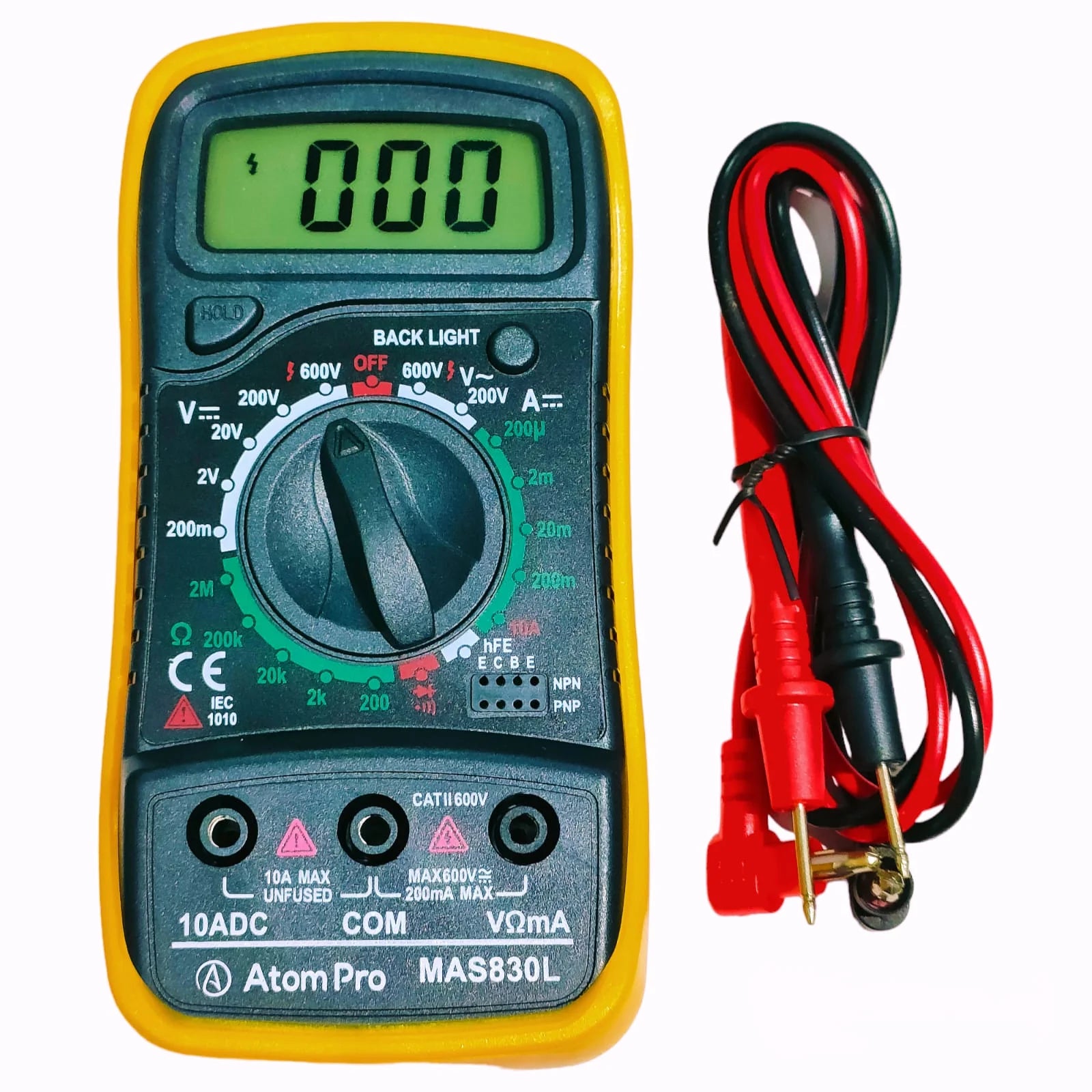

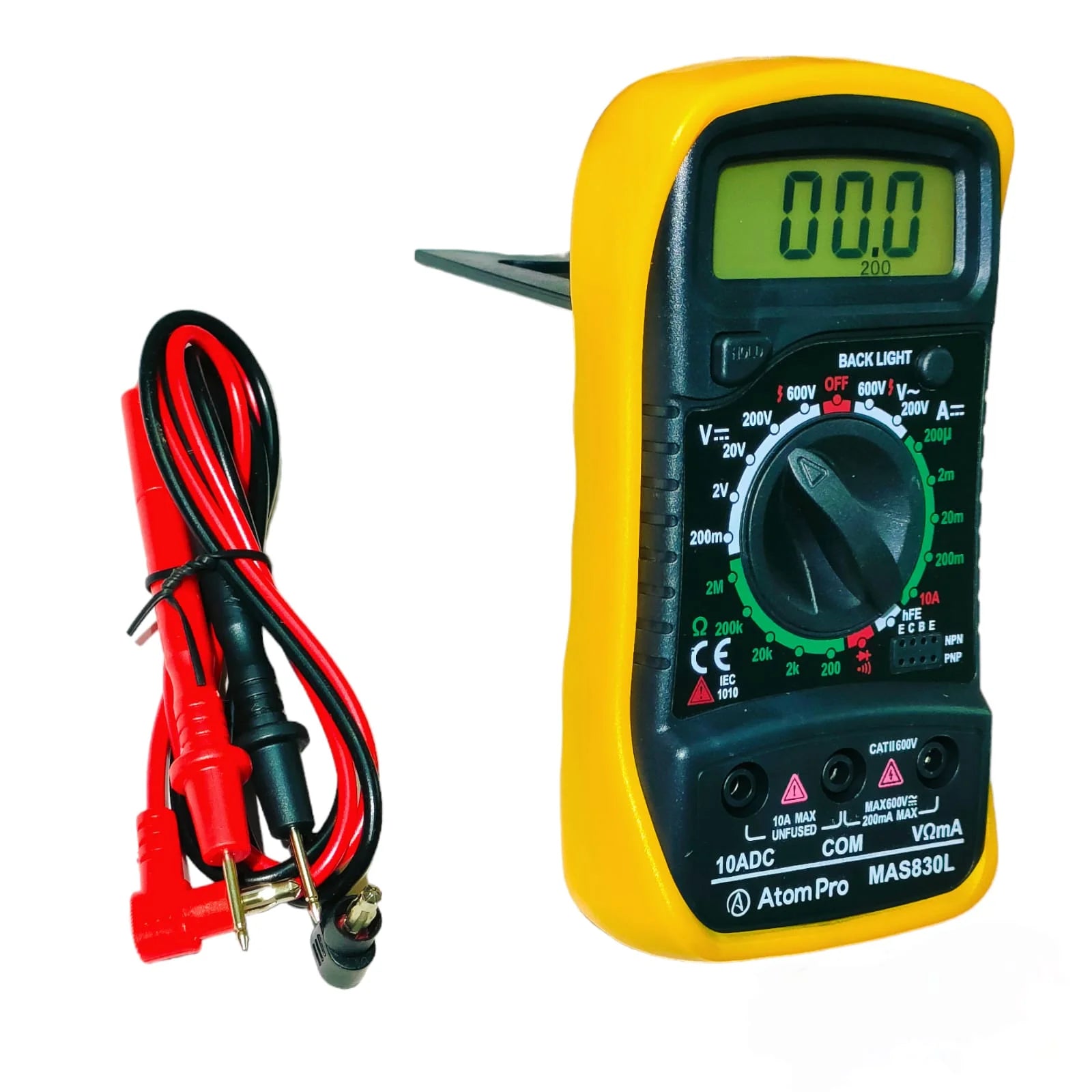

Digital Multimeter High Quality MAS830L (Free 5V White LED 1)

Specification

• Display: 3.5 to 4.5 digit LCD display
• Measurement Ranges:–
• DC Voltage: Up to 1000V
• AC Voltage: Up to 750V
• DC Current: Up to 10A
• AC Current: Up to 10A
• Resistance: Up to several megaohms (MΩ)
• Frequency: Up to several kHz (kilohertz)
• Color: Random

Description

The MAS830L is a digital multimeter (DMM) designed for measuring various electrical parameters. It’s commonly used by technicians, engineers, and hobbyists to troubleshoot and test electronic circuits and components. Here’s a description of the features and capabilities typically found in the MAS830L digital multimeter:

1. Measurement Capabilities: The MAS830L can measure a range of electrical parameters, including voltage, current, resistance, and sometimes frequency. It’s capable of handling both AC (alternating current) and DC (direct current) measurements.

2. Display: The multimeter usually features a digital LCD (liquid crystal display) screen that shows the measured values in numeric form. Some models might have additional features like a backlight for easier reading in low-light conditions.

3. Voltage Measurements: The DMM can measure both AC and DC voltages. This is useful for checking the voltage levels in circuits, batteries, power supplies, and more.

4. Current Measurements: The multimeter allows for the measurement of current in both AC and DC circuits. It often includes multiple current ranges to accommodate different levels of current.

5. Resistance Measurements: This feature allows you to measure the resistance of various components, such as resistors, conductors, and other elements in a circuit.

6. Continuity Test: The continuity test mode helps you determine if a circuit is complete or if there’s a break in the connection. It’s useful for identifying faulty wires or connections.

7. Diode Testing: The diode test function helps you test the functionality of diodes and check for their polarity.

8. Auto-ranging: Some models have an auto-ranging feature that automatically selects the appropriate measurement range based on the input signal. This simplifies the measurement process.

9. Manual Range Selection: In addition to auto-ranging, the DMM might allow you to manually select the measurement range. This can be useful when you want to get more precise readings or work in a specific range.

10. Data Hold: The data hold function allows you to freeze the displayed value on the screen. This is handy when taking measurements in situations where you can’t easily see the display while making the measurement.

11. Battery and Safety Features: The multimeter is usually powered by batteries, often a 9V battery. It might also have safety features like overload protection, which helps prevent damage to the multimeter when measuring high-voltage or high-current circuits.

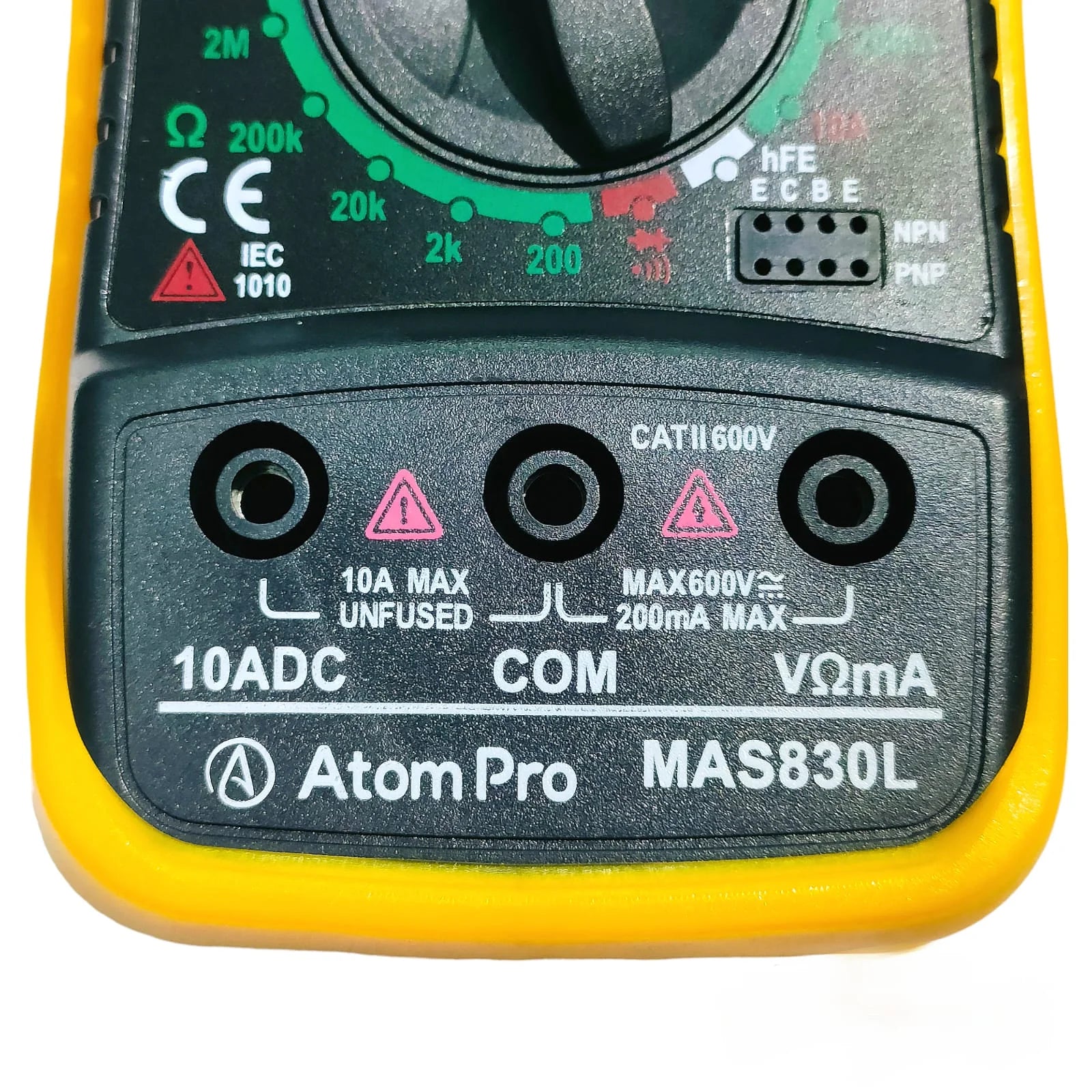

12. Input Jacks: The MAS830L typically has input jacks where you connect the test leads. There are separate jacks for voltage, current, and resistance measurements.

It’s important to note that while the above features are common in digital multimeters like the MAS830L, specific models might have variations and additional capabilities. Always refer to the user manual provided with the multimeter for accurate information on its features and usage instructions. Additionally, take necessary precautions and follow safety guidelines when using a multimeter to avoid electric shock or damage to the device and circuit you’re testing.
