Digital Multimeter DT830D High Quality (Free 1 LED)

Description

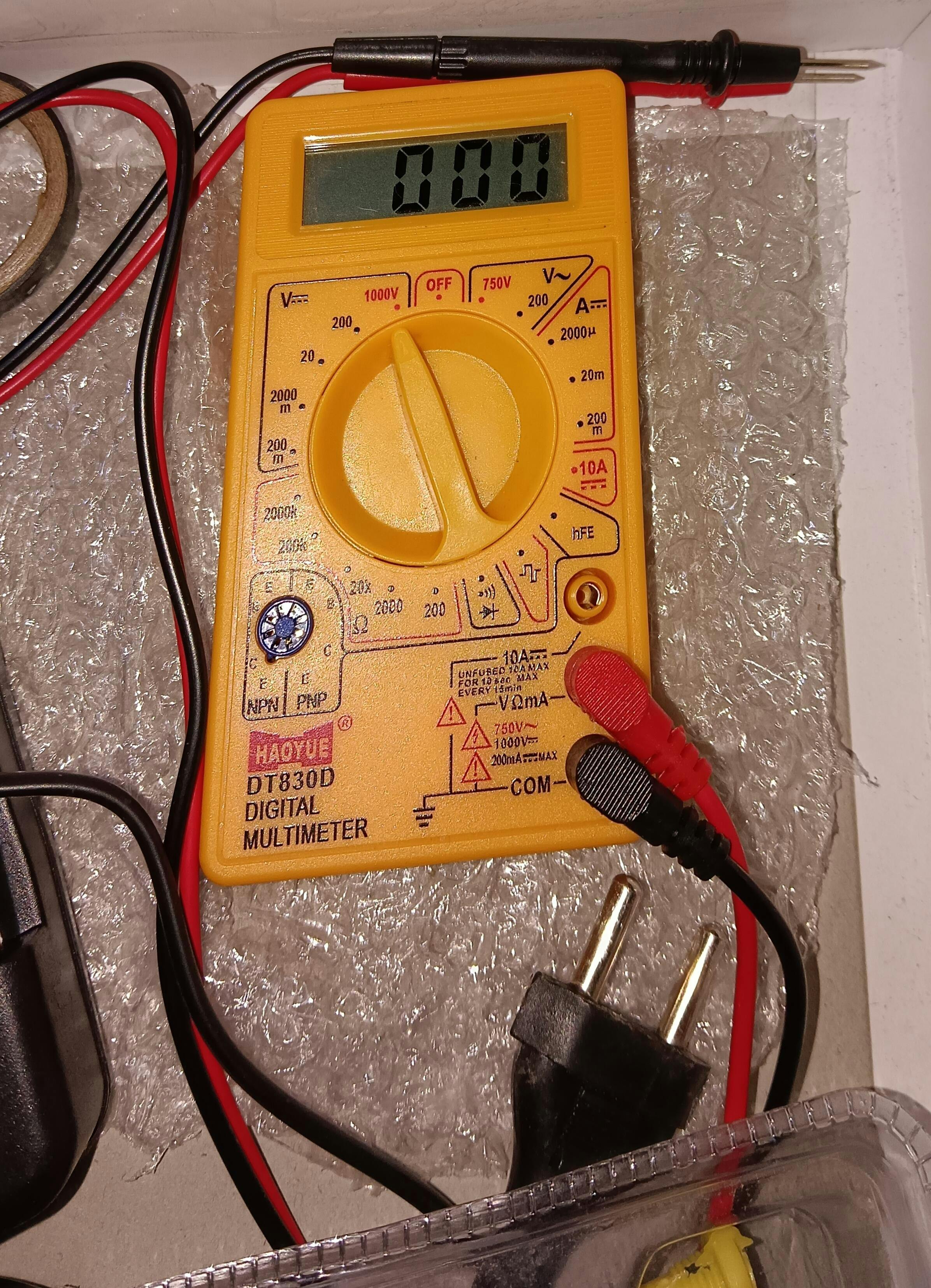

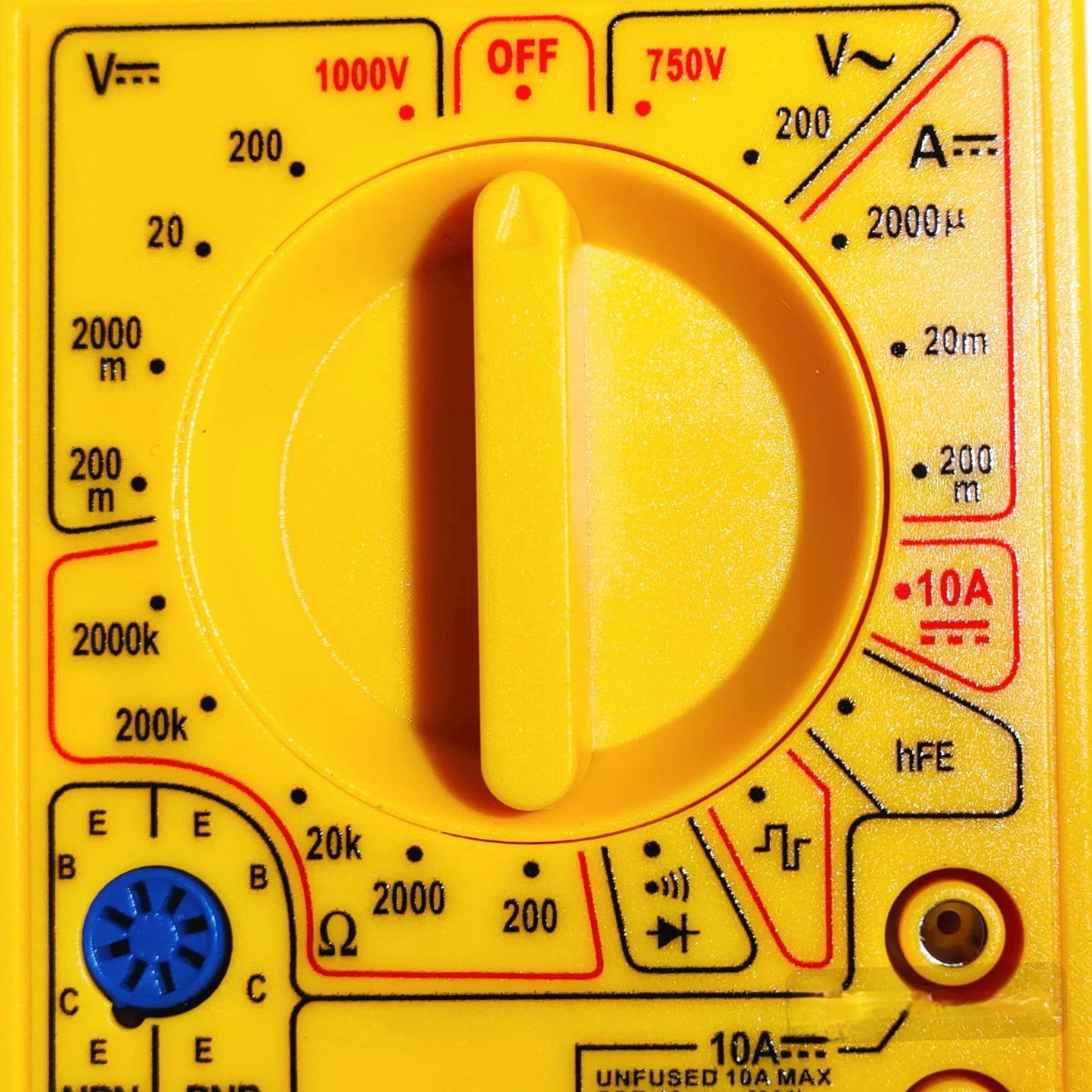

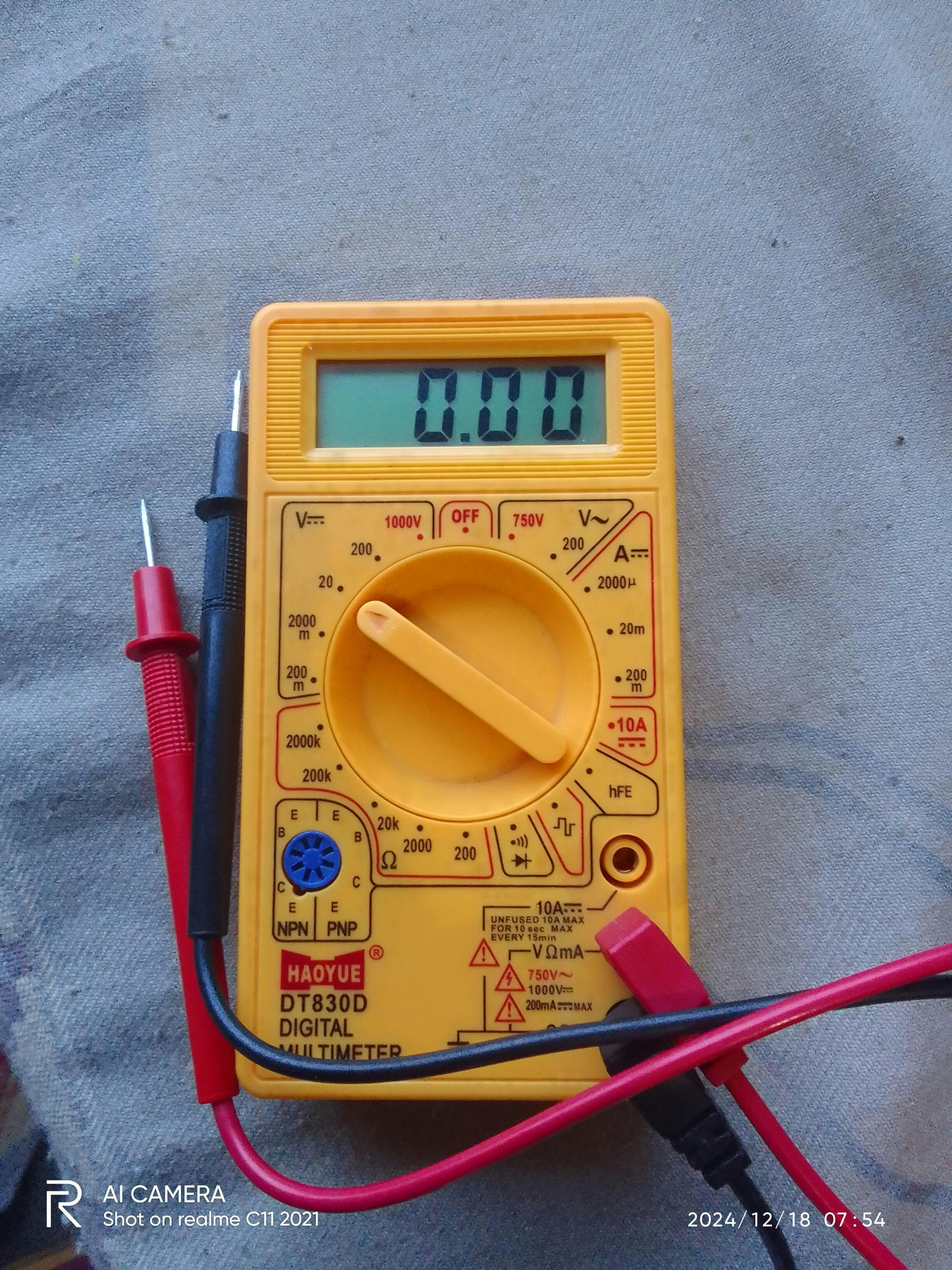

The DT830D is a basic digital multimeter (DMM) commonly used for measuring electrical properties such as voltage, current, resistance, and sometimes other parameters like diode testing and continuity. Some general specifications and features that are commonly associated with this type of DMM:

1. Voltage Measurement:
– DC Voltage Range: Typically up to 1000V
– AC Voltage Range: Typically up to 750V

2. Current Measurement:
– DC Current Range: Usually up to 10A
– AC Current Range: Usually up to 10A

3. Resistance Measurement:
– Resistance Range: Typically up to 20MΩ

4. Display:
– 3½ digit LCD display, which means it can display values up to 1999 (e.g., 1.999V).

5. Additional Features:
– Diode testing: To check the forward voltage drop of diodes.
– Continuity testing: To check if a circuit is continuous (i.e., if there is a complete path for current flow).
– Some models might include a hFE (hFE) transistor testing function.

6. Safety Features:
– Typically includes overload protection and fused current input for user safety.

7. Power Source:
– Powered by one or more 9V batteries.

8. Size and Design:
– Compact handheld design for portability and ease of use.

Remember that the exact specifications of a DT830D digital multimeter may vary slightly depending on the manufacturer and model variation. Always refer to the user manual provided with the specific unit you have to ensure you’re using it correctly and safely. So it’s a good idea to consult the manufacturer’s website or product documentation for the most up-to-date information.
