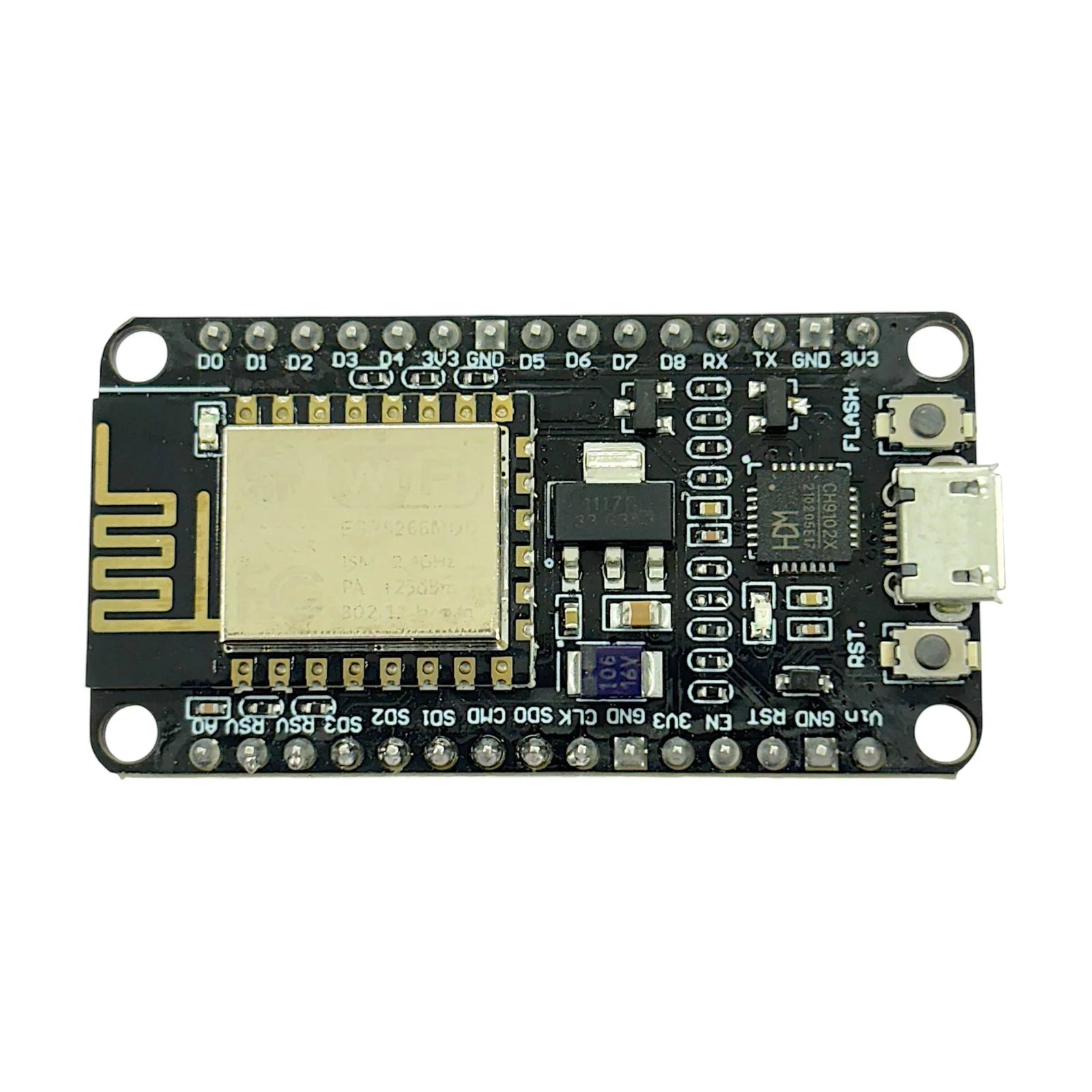

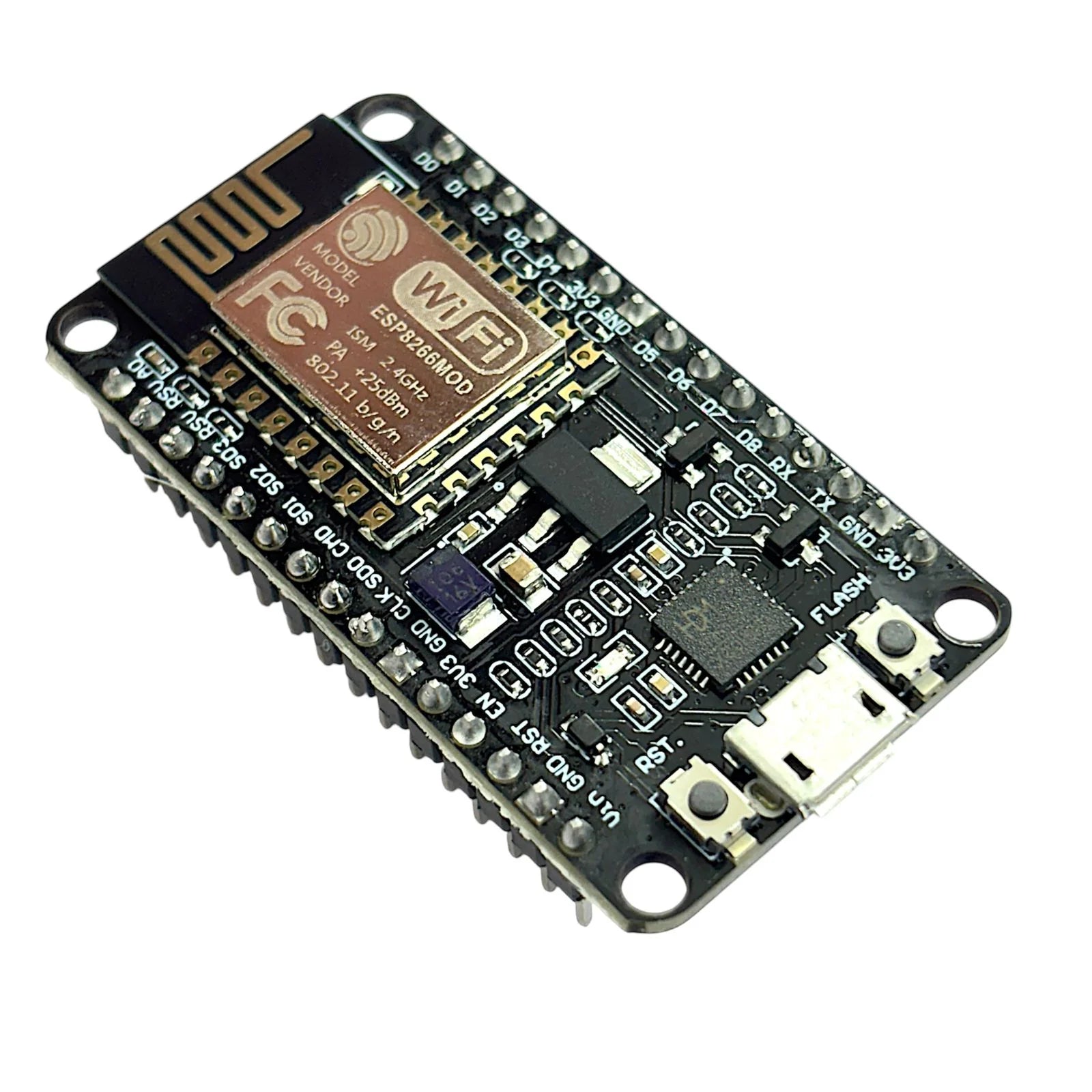

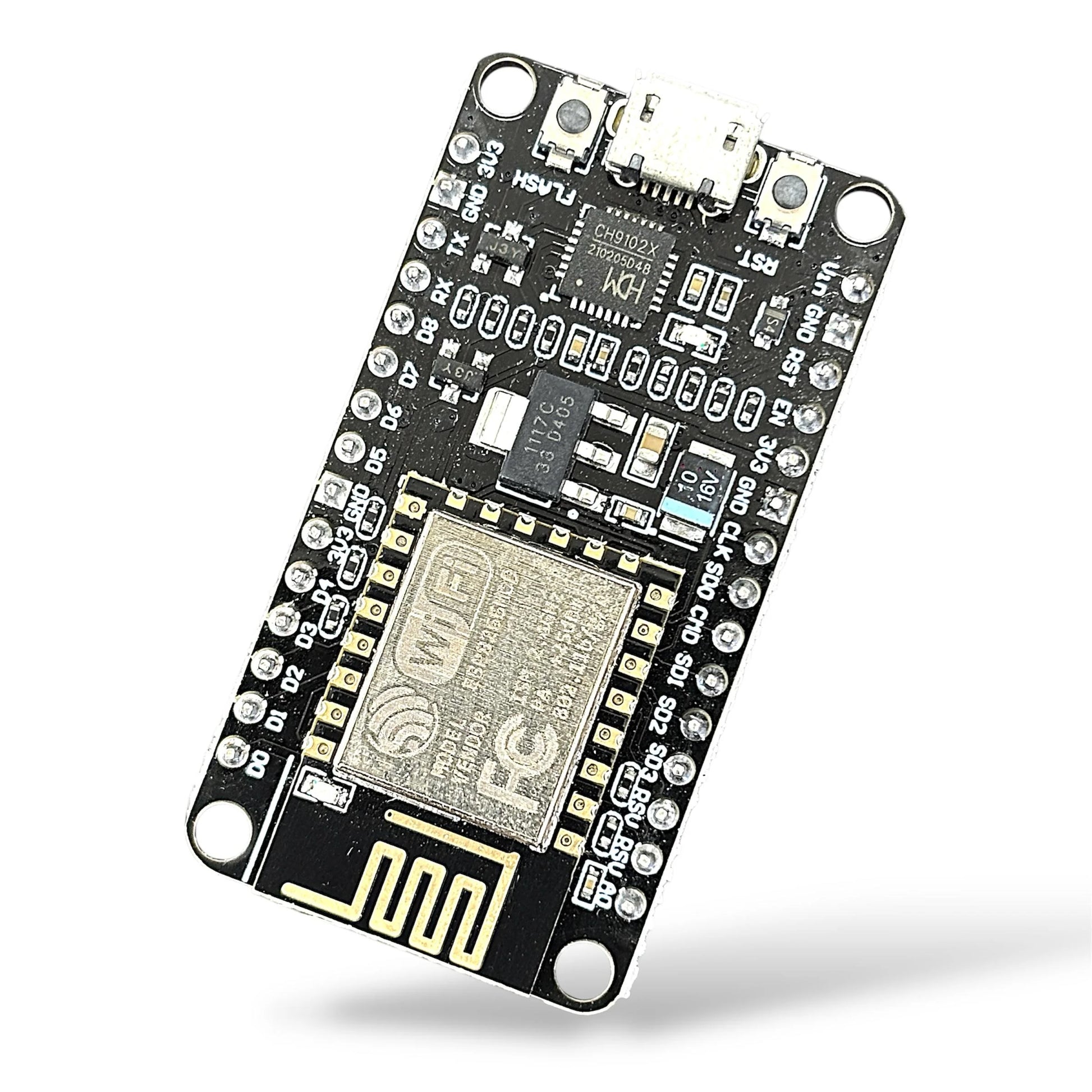

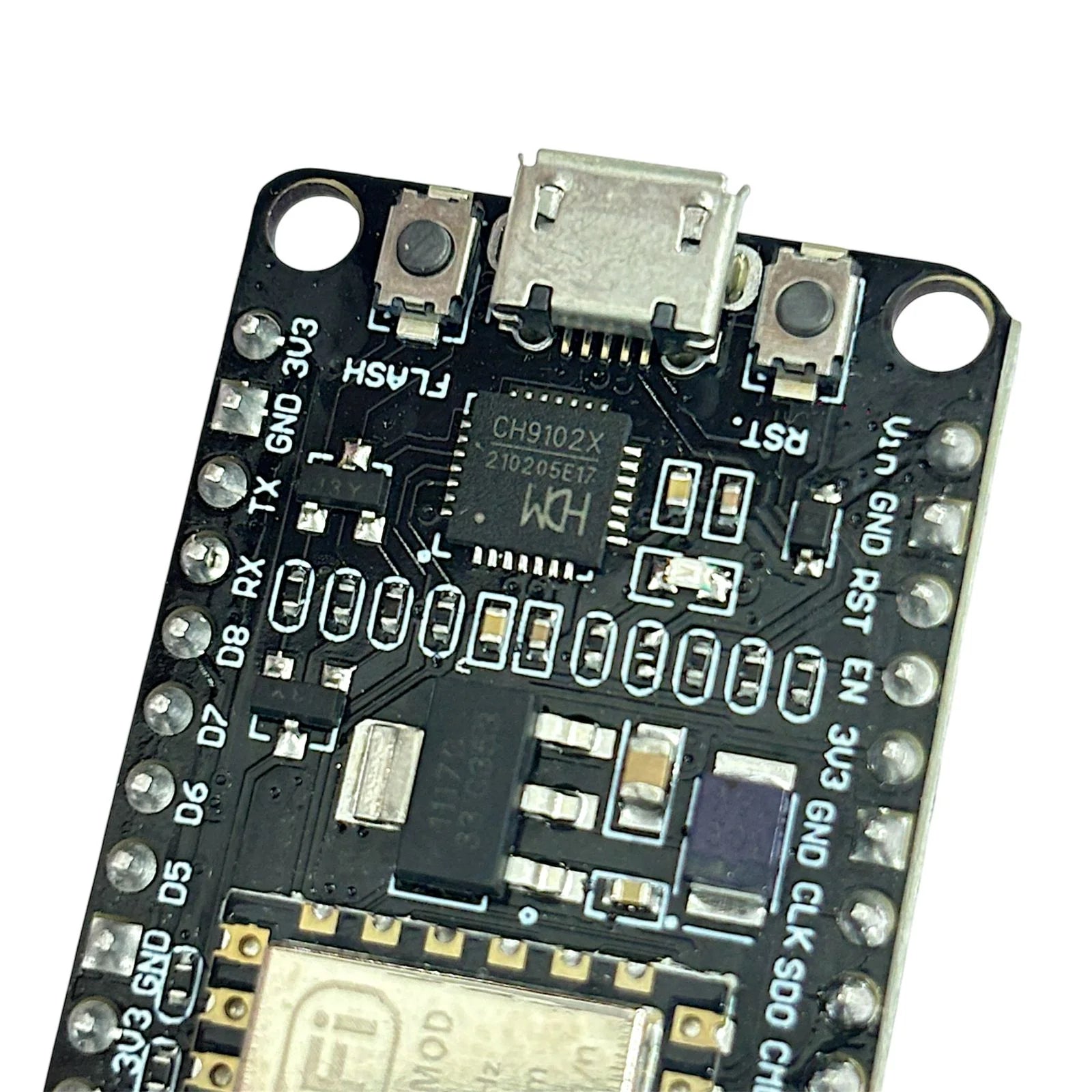

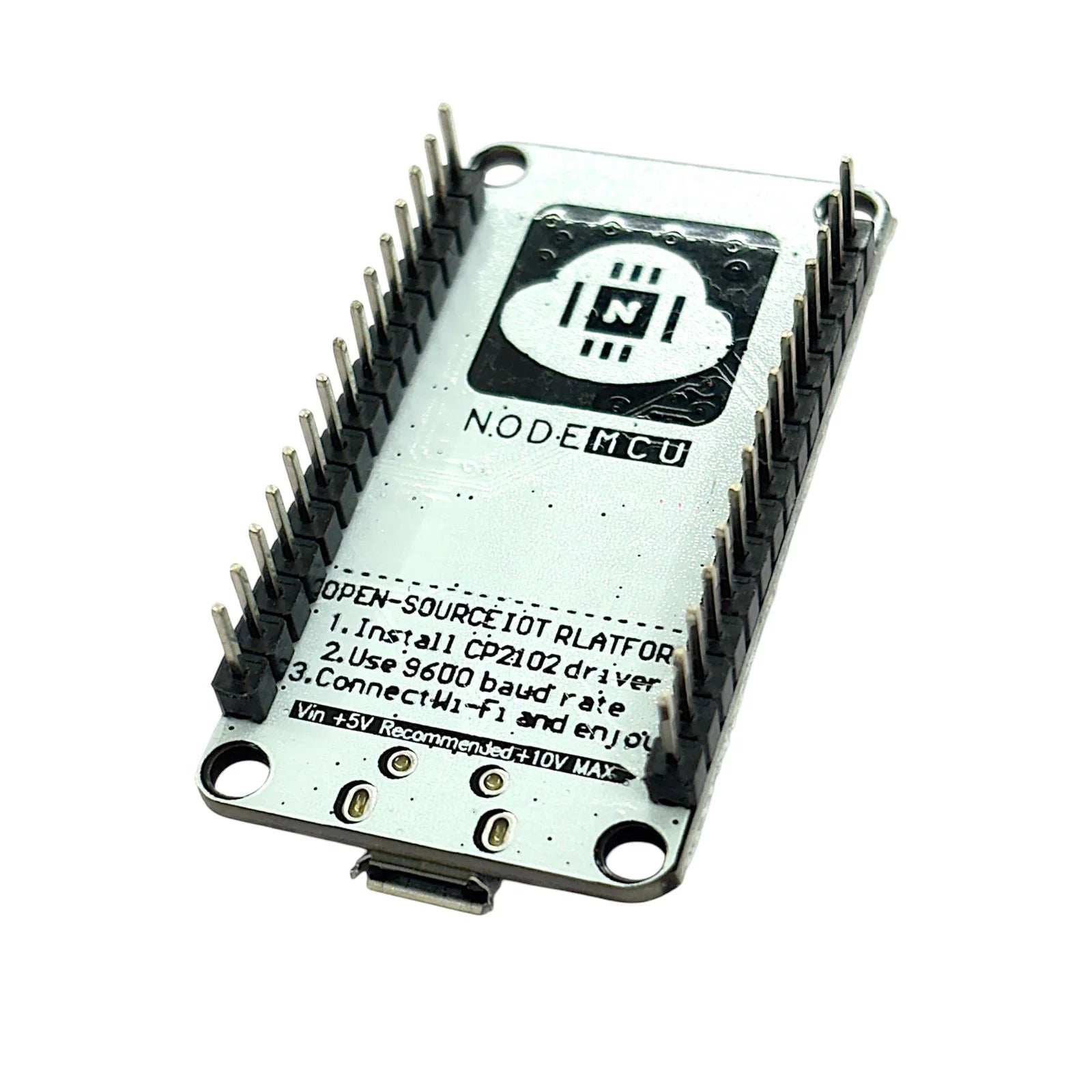

CP2102 Node MCU ESP8266 Wi-Fi module Best Quality

Key Features of NodeMCU CP2102:

• ESP8266 Microcontroller with built-in Wi-Fi.
• CP2102 USB to Serial Converter for easy communication with a PC.
• Multiple I/O Pins for GPIO (General Purpose Input/Output), PWM (Pulse Width Modulation), ADC (Analog to Digital Conversion), etc.
• Support for Lua and Arduino IDE programming environments.
• Onboard Voltage Regulator (typically 3.3V, as ESP8266 operates at 3.3V).
• Small Form Factor making it compact and suitable for prototyping and IoT applications.
• Supports OTA (Over-The-Air) programming, which means you can update the firmware wirelessly after the initial setup.

The NodeMCU CP2102 refers to a development board that incorporates the NodeMCU platform with a CP2102 USB-to-UART bridge chip. Here's an overview of each of these components:

1. NodeMCU:

• NodeMCU is an open-source development board based on the ESP8266 Wi-Fi module, which allows you to easily build IoT (Internet of Things) projects.
• The board comes with an onboard microcontroller (ESP8266) that has Wi-Fi capabilities and is widely used in projects that require wireless communication.
• The board is usually programmed using Lua or Arduino IDE (with the ESP8266 libraries).

2. CP2102 USB-to-UART Bridge:

• The CP2102 is a USB-to-UART (Universal Asynchronous Receiver/Transmitter) bridge from Silicon Labs. It is used for enabling communication between the USB port of a computer and microcontroller-based systems like the ESP8266 (on the NodeMCU).
• The CP2102 chip takes care of converting the USB signals from your computer to serial UART signals that the NodeMCU can understand, enabling you to upload code and communicate with the microcontroller.
• It also allows you to power the NodeMCU via the USB connection.

Use Cases:

• IoT Projects: For devices that connect to Wi-Fi networks, such as smart home devices, sensors, and automation systems.
• Prototyping and Experimentation: The NodeMCU is widely used in DIY and educational projects due to its low cost and ease of use.
• Web Servers and APIs: You can use it to build small web servers or APIs that can be accessed over a local network or the internet.

Typical Pinout:

The NodeMCU has the following pinout, which includes GPIOs (General Purpose Input/Output pins), ADCs (Analog to Digital Conversion), and more. These pins can be used for various purposes like reading sensor data, controlling LEDs, motors, etc.

In summary, the NodeMCU CP2102 is an affordable and efficient board for developing IoT applications, particularly for wireless communication, and is widely used by hobbyists, engineers, and developers.
