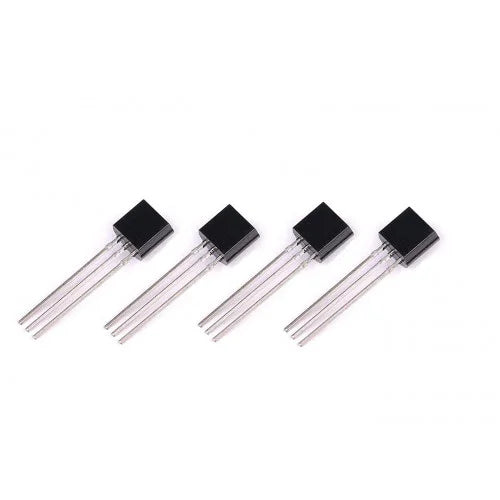

BC547 Transistor (Buy 20 & Get 5 Free)

Specification

• Maximum Collector-Emitter Voltage (Vceo): 45V

• Maximum Collector-Base Voltage (Vcbo): 50V

• Maximum Emitter-Base Voltage (Vebo): 6V

• Maximum Collector Current (Ic): 100mA

• DC Current Gain (hfe): 110 – 800

• Power Dissipation (Pd): 500mW

• Transition Frequency (ft): 150MHz

• Operating Temperature Range: -55°C to +150°C

• Package Type: TO-92

Description

The BC547 is a general-purpose NPN bipolar junction transistor commonly used in electronic circuits for amplification and switching applications. Here are some technical specifications of the BC547 transistor:

1. Maximum Collector-Emitter Voltage (Vceo): 45V
2. Maximum Collector-Base Voltage (Vcbo): 50V
3. Maximum Emitter-Base Voltage (Vebo): 6V
4. Maximum Collector Current (Ic): 100mA
5. DC Current Gain (hfe): 110 – 800
6. Power Dissipation (Pd): 500mW
7. Transition Frequency (ft): 150MHz
8. Operating Temperature Range: -55°C to +150°C
9. Package Type: TO-92

Note that the above specifications are for a BC547 transistor with a standard tolerance of ±5%, and actual specifications may vary depending on the manufacturer and specific part number. It’s always important to consult the datasheet of a particular component for precise information.
