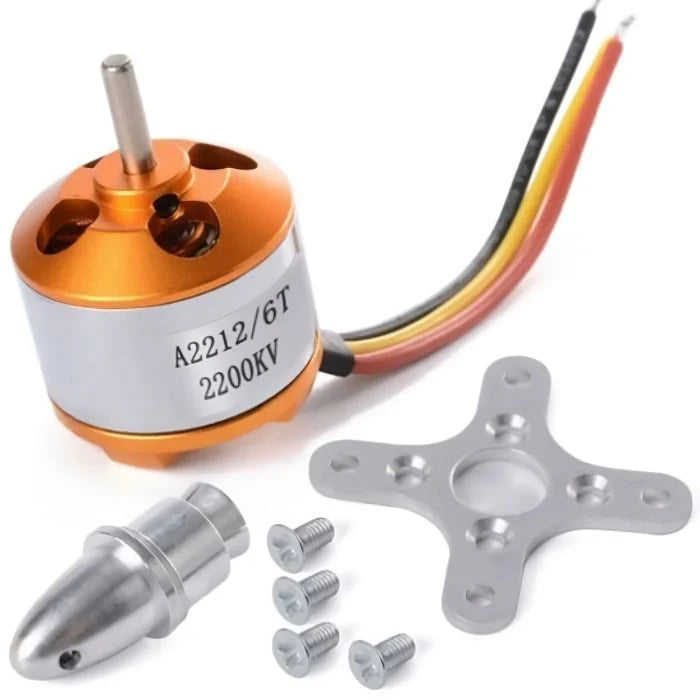

A2212 2200KV 6T BLDC Brushless Outrunner Motor | High-Speed BLDC Motor for RC Aircraft, Quadcopter, Drone & Helicopter

Technical Specifications

• Model: A2212 / 6T
• Motor Type: Brushless Outrunner Motor
• KV Rating: 2200 KV (RPM per Volt)
• Configuration: 6T Winding
• Operating Voltage: 2S–3S LiPo Battery
• Maximum Efficiency Current: 4–10A
• Current Capacity: Up to 12A
• Maximum Efficiency: Up to 80%
• No Load Current: 0.5A @ 10V
• Shaft Diameter: 3.17mm
• Motor Diameter: Approx. 27.5mm
• Motor Length: Approx. 30mm
• Weight: Approx. 47g
• Recommended ESC: 18A–30A Brushless ESC
• Recommended Applications: Drones, RC Planes, Helicopters, UAVs, DIY Projects

Description

The A2212 2200KV 6T Brushless Outrunner Motor is a lightweight, high-performance BLDC motor designed for RC aircraft, quadcopters, helicopters, and DIY drone projects. Featuring a 2200KV rating, efficient outrunner design, and smooth throttle response, it delivers excellent speed and thrust for aerial applications.
