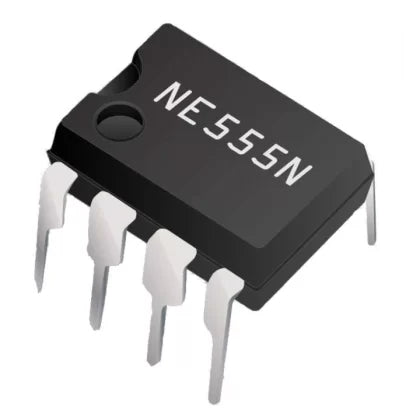

555 timer IC (Buy 20 & get 5 Push Button)

Specification

• Voltage: 4.5 to 9V
• Temperature: -55°C to +125°C
• Type: 555 Timmer IC
• More: See description

Description

The 555 timer IC (integrated circuit) is a widely used electronic component that is capable of producing precise and stable timing signals. Here are some of its technical specifications:

1. Operating voltage range: The 555 IC can operate at a voltage range of 4.5V to 18V DC.

2. Operating temperature range: The 555 IC can operate in a temperature range of -55°C to +125°C.

3. Timing accuracy: The timing accuracy of the 555 IC is typically within 1% of the selected timing interval.

4. Timing range: The timing range of the 555 IC can be adjusted from microseconds to hours using external resistors and capacitors.

5. Output type: The 555 IC can be configured to operate in three different output modes: astable (free-running), monostable (one-shot), and bistable (flip-flop).

6. Output current: The maximum output current of the 555 IC is 200mA.

7. Power consumption: The power consumption of the 555 IC is typically around 3-15mA.

8. Pin configuration: The 555 IC has eight pins, which are labeled as VCC, GND, TRIG, OUT, RESET, CTRL, THRES, and DISCH.

9. Package type: The 555 IC is available in various package types, including DIP (dual inline package) and SOIC (small outline integrated circuit).

Overall, the 555 IC is a versatile and reliable component that is widely used in various electronic applications, including timers, oscillators, and PWM (pulse-width modulation) circuits.
