5 mm RGB LED (Buy 20 Get Free 2 Push Button)

Specification

• No of LED pin: 4
• Voltage: 2.0-2.2V for red, 3.0-3.2V for green, and 3.0-3.2V for blue

• Current: 20mA for each color

• Luminous intensity: 500-2000 mcd for each color

• Viewing angle: 120 degrees

Description

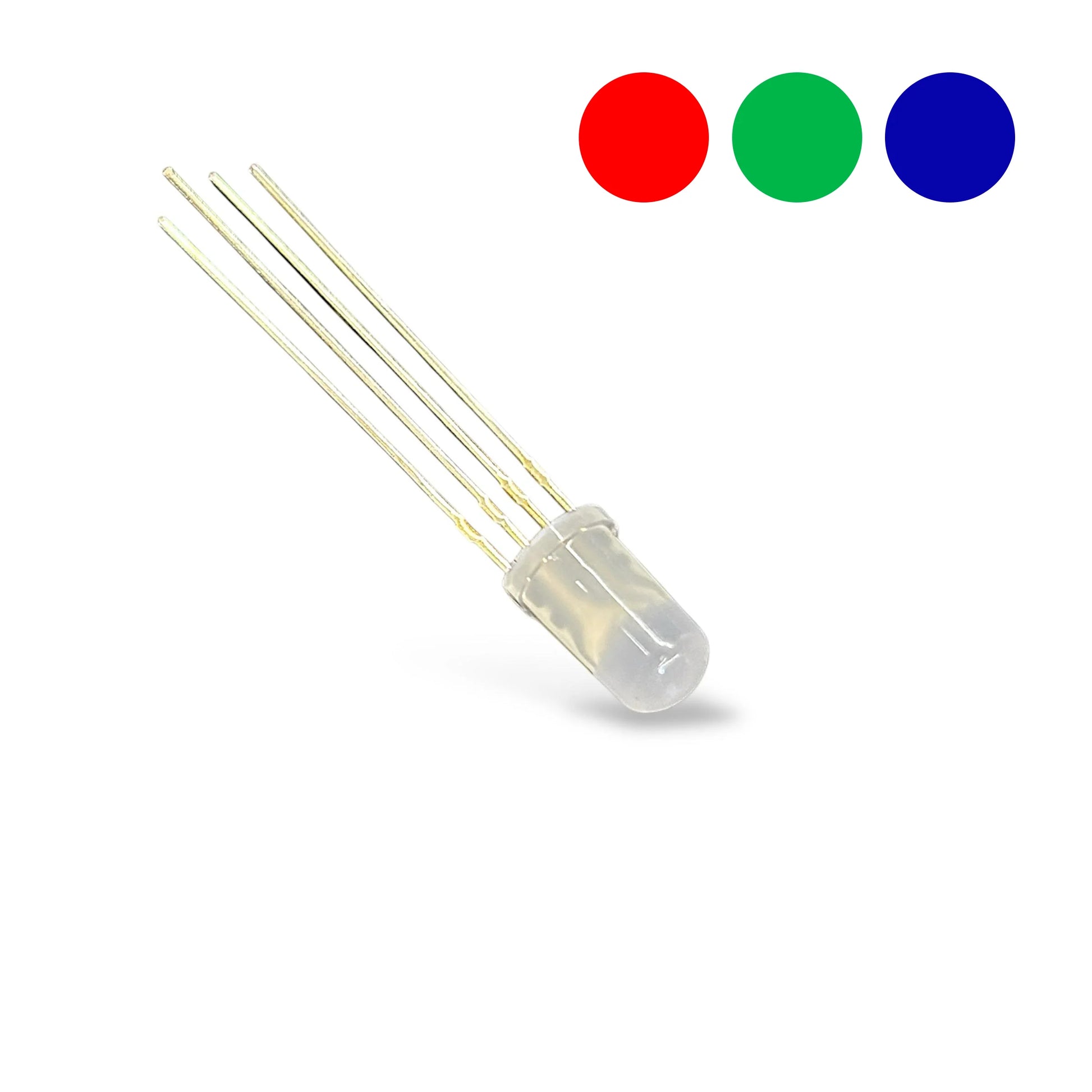

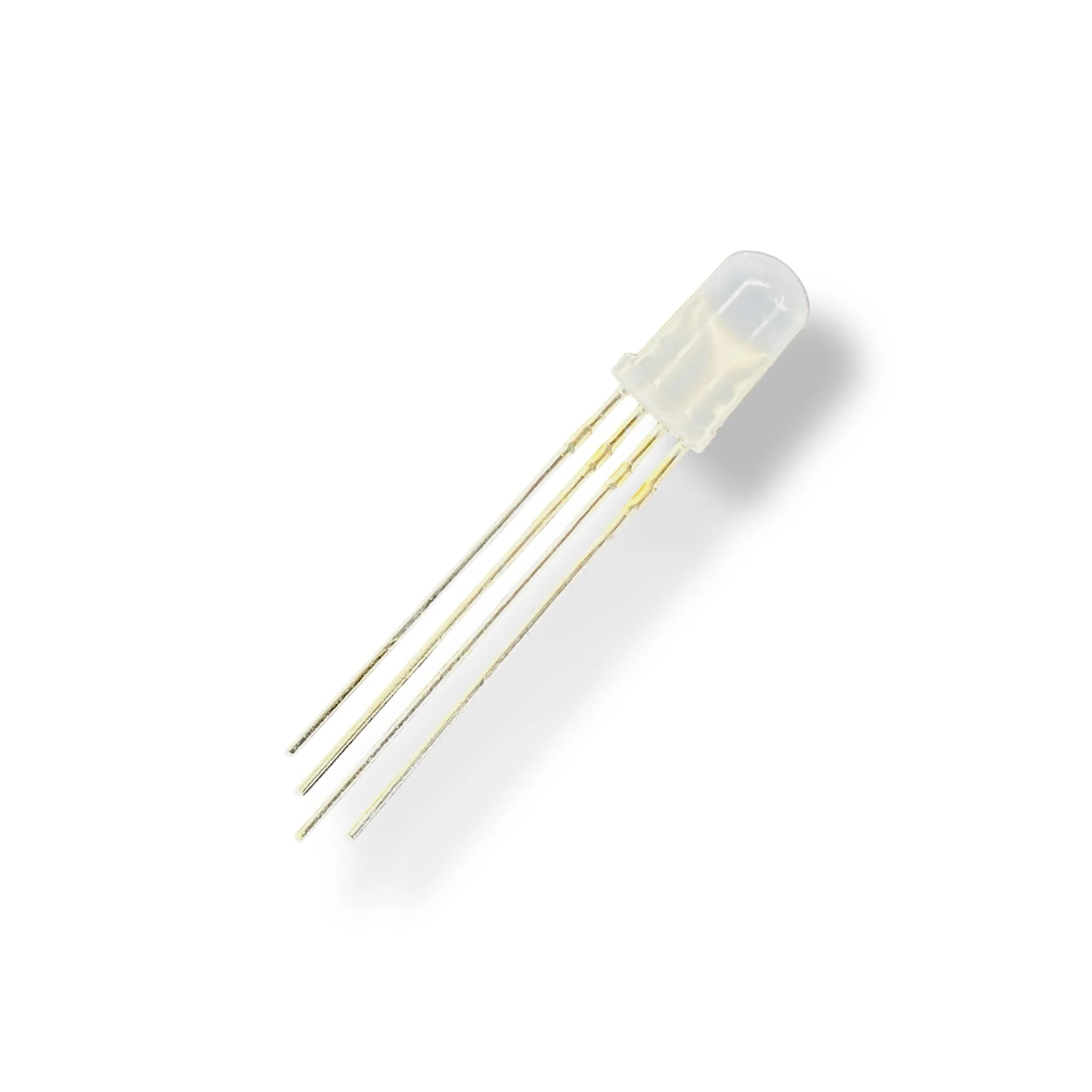

A 5mm RGB LED is a type of light emitting diode that has a diameter of 5 millimeters and can emit red, green, and blue colors. It usually has four pins, with one common anode or cathode pin, and one pin for each color (red, green, and blue).

Here are some technical specifications of a typical 5mm RGB LED:

1. Diameter: 5mm
2. Voltage: 2.0-2.2V for red, 3.0-3.2V for green, and 3.0-3.2V for blue
3. Current: 20mA for each color
4. Luminous intensity: 500-2000 mcd for each color
5. Viewing angle: 120 degrees
6. Wavelength: 620-630nm for red, 515-530nm for green, and 460-470nm for blue
7. Reverse voltage: 5V
8. Operating temperature: -40°C to +80°C
9. Lead material: Copper alloy
10. Lead finish: Tin plated

Note that the above specifications may vary depending on the specific manufacturer and model of the LED. It is important to consult the datasheet or specifications provided by the manufacturer to ensure proper use and operation of the LED.

When powered, the RGB LED can display a wide range of colors by varying the intensity of each color channel. By mixing the colors together, it is possible to create millions of different colors.

The RGB LED can be used in a variety of applications, including in lighting and decoration, electronic displays, and signaling devices. It can also be used in microcontroller projects for controlling the color output of the LED based on sensor inputs or user inputs.
