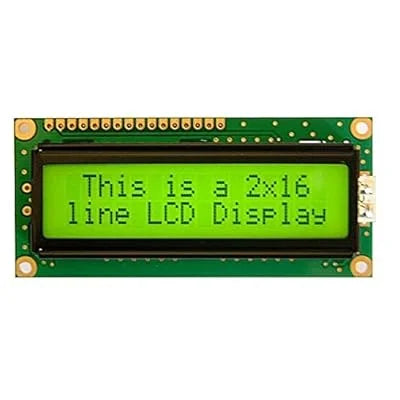

16x2 LCD Display

Specification

1. Character size: 5×8 dots
2. Display mode: STN, positive or negative
3. Viewing direction: 6 o’clock or 12 o’clock
4. Supply voltage: 5V
5. Interface: 8-bit parallel or 4-bit parallel
6. Backlight: LED or EL backlight,
7. Operating temperature: -20°C to 70°C
8. Storage temperature: -30°C to 80°C

Description

A 16×2 LCD display is a type of alphanumeric display module that can display 16 columns and 2 rows of characters. Here are some technical specifications of a typical 16×2 LCD display:

1. Character size: 5×8 dots
2. Display mode: STN, positive or negative
3. Viewing direction: 6 o’clock or 12 o’clock
4. Supply voltage: 5V
5. Interface: 8-bit parallel or 4-bit parallel
6. Contrast control: adjustable by potentiometer
7. Backlight: LED or EL backlight,
8. Character set: ASCII or custom character set
9. Operating temperature: -20°C to 70°C
10. Storage temperature: -30°C to 80°C

16×2 LCD displays are commonly used in various electronic projects and devices, such as digital clocks, measuring instruments, and handheld controllers, as they provide a simple and efficient way to display information.
