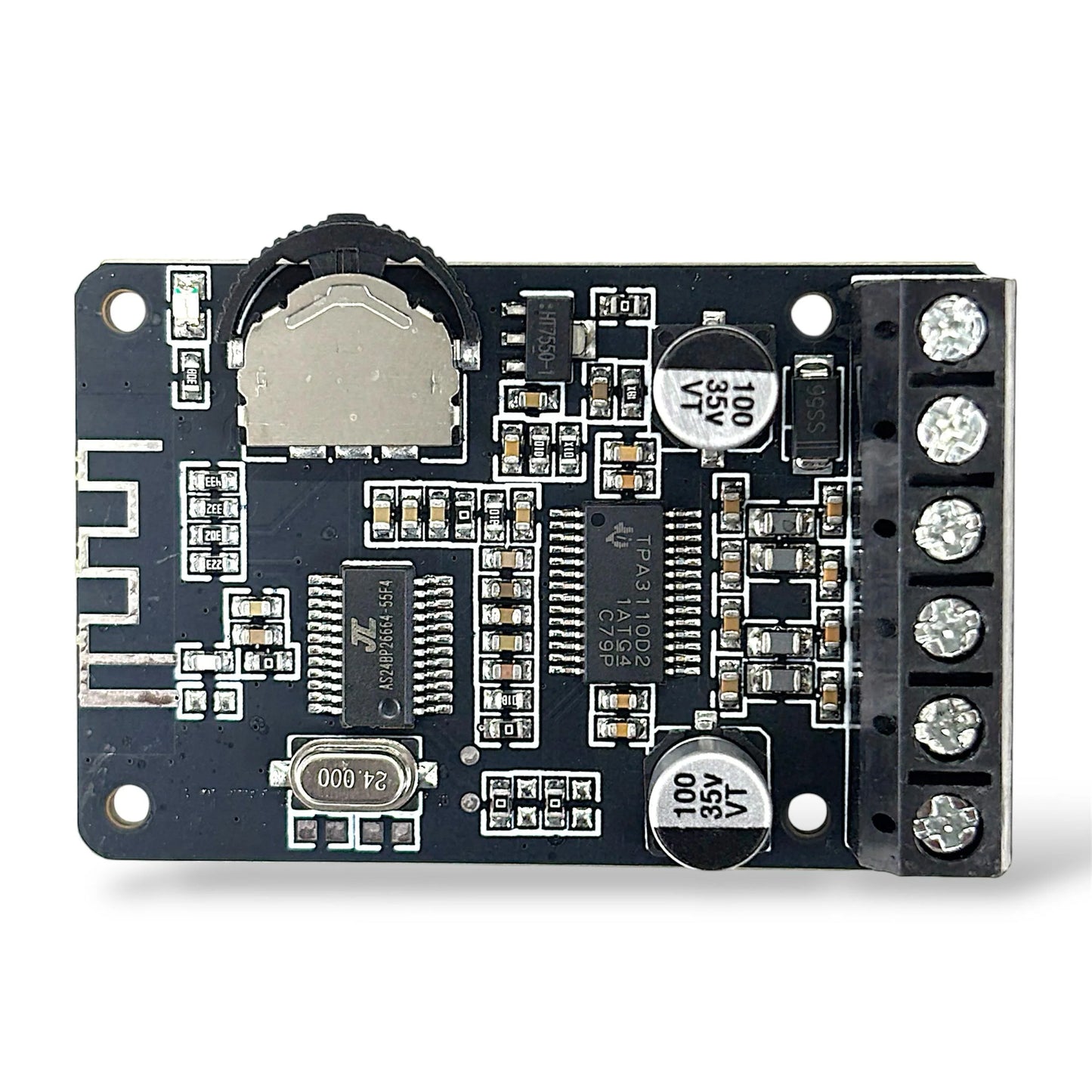

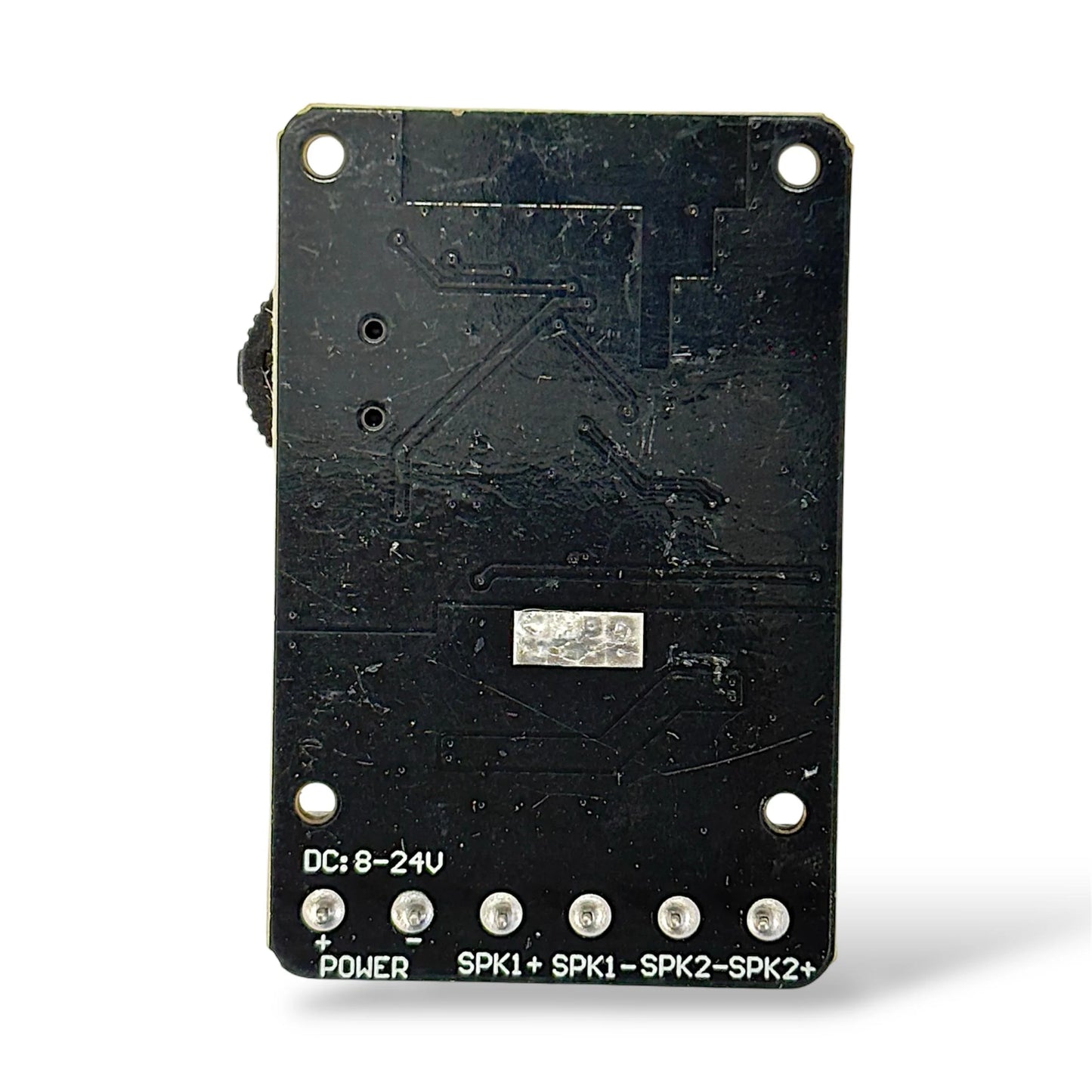

10W/15W/20W Stereo Bluetooth Amplifier Board 12V/24V High-Power Digital Amplifier Module XY-P15W

Specification

• Product Model : XY-P15W

  ---

  Working Voltage : DC: 8–24V

  ---

  Bluetooth Version : 5.0

  ---

  Transmission Distance :15 meters (visible and unobstructed)

  ---

  Number of Channels : Dual channel (stereo)

  ---

  Output Power (@ 1kHz)

  • 16W × 2 @ 12V / 4Ω

  • 10W × 2 @ 12V / 8Ω

  • 15W × 2 @ 16V / 8Ω

  • 20W × 2 @ 20V / 8Ω

  • 30W × 2 @ 24V / 8Ω (requires heat sink)

  ---

  Adapted Speaker (30W–150W)

  • 4Ω (8–12V power supply)

  • 8Ω (powered by 8–24V)

  • 16Ω (powered by 8–24V)

  ---

  Module Protection Mechanisms

  • Power reverse connection protection

  • Short circuit protection

  • Self-recovery overheating protection

  ---

  Note:
  To improve module performance, it is recommended to add a heat sink to the power amplifier chip in application scenarios that exceed 20W × 2.

  ---



  Introducing the 10W/15W/20W Stereo Bluetooth Amplifier Board. Enjoy high-quality sound with 12V/24V voltage and up to 20W of power. Connect your device via Bluetooth and easily control your audio experience. Upgrade your sound system with this efficient and versatile amplifier.
